2 Car Garage Apartment Plan 59949

• PDF File: $780.00
• 5 Sets: $650.00
• 5 Sets plus PDF File: $905.00
• CAD File: $1,200.00
  Single Build License issued on CAD File orders.
• Materials List: $65.00
• Right Reading Reverse: $50.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $45.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	979 sq ft
Upper Living Area:	979 sq ft
Garage Area:	936 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	36'
House Depth:	29'6
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	25'5 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Load:	40 psf
Roof Framing:	Stick
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

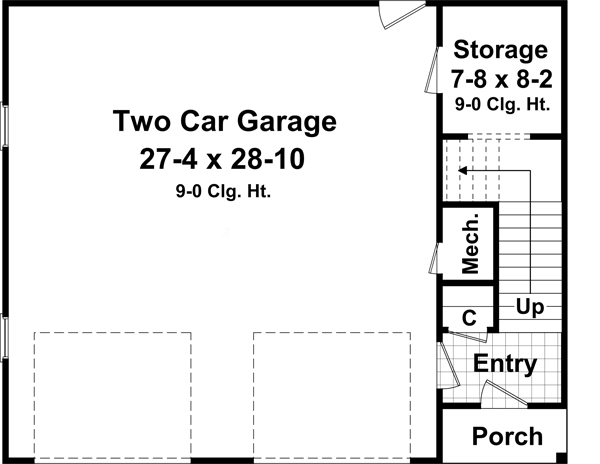

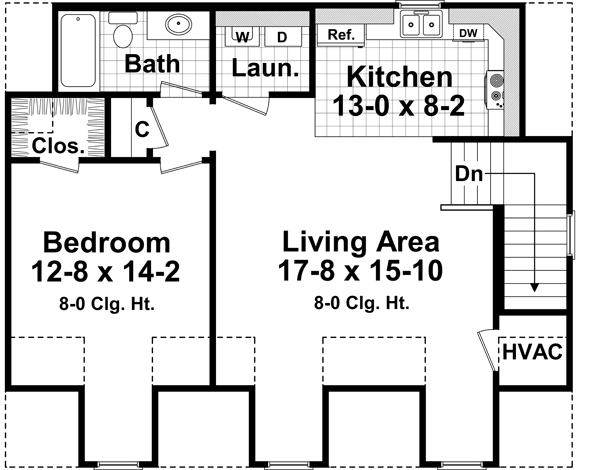

This two car garage contains lots of first floor storage with an additional living space located above! The front porch opens into a separate entry room with a conveniently located closet leading to the upstairs living area. The second floor living area is spacious and inviting. With an upstairs laundry room and bath, this area can maintain anyone's lifestyle.

Cover Sheet, showing architectural rendering of the residence

Floor Plan/Plans (scale: 1/4" = 1' - 0")

Cabinet Elevations (scale: 3/8" = 1' - 0")

Electrical Plan Layout with Electrical Symbols Legend

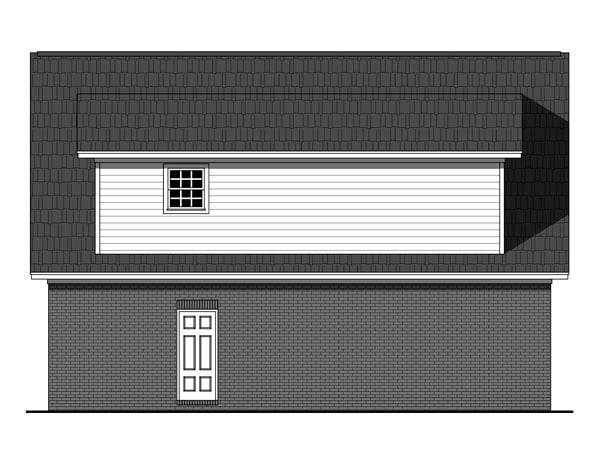

Exterior Elevations (typically 4)

Typical Exterior Wall Section (scale: 3/4" = 1' - 0")

Section Thru Building (usually 1/2" = 1' - 0", transverse section)

Roof Drainage Plan (scale: 1/8" = 1' - 0")

Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")

Short-form FHA/VA Specifications form

License to Build

Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Any plan less than 1200 heated sq ft is formatted on 18x24 size paper. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.

This Plan is a USDA Rural Development Certified Plan
