3 Car Garage Plan 59997

• PDF File: $780.00
• 5 Sets: $650.00
• 5 Sets plus PDF File: $905.00
• CAD File: $1,200.00
  Single Build License issued on CAD File orders.
• Materials List: $65.00
• Right Reading Reverse: $50.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $45.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Garage Area:	1040 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	40'0"
House Depth:	26'0"
Number of Stories:	1
Max Ridge Height:	18'1" from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	30 psf
Roof Framing:	Stick
Main Ceiling Height:	9'0"

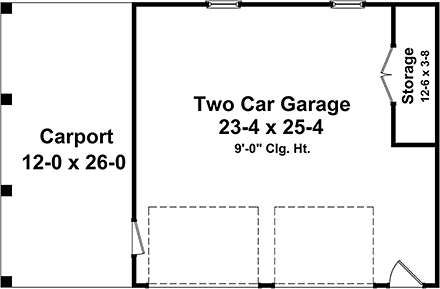

Detached Traditional Two (2) Car Garage with Attached Single Carport

This garage plan offers a great layout which provides for maximum flexibility. You'll enjoy the ample space provided for your two vehicles as well as a third space under the covered carport. The separate storage area is perfect for locating lawn equipment, tools, etc. Great addition to any home!

Cover Sheet, showing architectural rendering of the residence

Floor Plan/Plans (scale: 1/4" = 1' - 0")

Cabinet Elevations (scale: 3/8" = 1' - 0")

Electrical Plan Layout with Electrical Symbols Legend

Exterior Elevations (typically 4)

Typical Exterior Wall Section (scale: 3/4" = 1' - 0")

Section Thru Building (usually 1/2" = 1' - 0", transverse section)

Roof Drainage Plan (scale: 1/8" = 1' - 0")

Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")

Short-form FHA/VA Specifications form

License to Build

Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Any plan less than 1200 heated sq ft is formatted on 18x24 size paper. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.

This Plan is a USDA Rural Development Certified Plan
