Plan Pricing from $1,595.00

Plan Pricing

PDF File: $1,595.00
5 Sets: $1,495.00
CAD File: $1,895.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $437.50
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Designer does not allow modifications be made to PDF. Please order CAD file for modifications.

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	1114 sq ft
Main Living Area:	1114 sq ft
Garage Area:	1204 sq ft
Garage Type:	Drive Under
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	42'6
House Depth:	30'0'
Number of Stories:	2
Bedrooms:	2
Full Baths:	2
Half Baths:	1
Max Ridge Height:	28'10 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Stick
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	9'

Special Features:

Entertaining Space
Front Porch
Open Floor Plan
Pantry
Storage Space

What's Included?

These plans agree with basic FHA/VA regulations, and meet (CABO) one and two family dwelling code. Check with your builder regarding local codes that may vary. Minor alterations can be made by your local builder without drawing new plans. The owner and contractor assume the responsibility to meet all local codes.

Square footage calculations are based on total heated space only and will NOT include garages, porches or exterior storage areas. NOTE: Thses plans will include ALL of the following:

FOUNDATION PLAN-On many of our plans we offer you options on the type of foundation you prefer. The available options for each plan are shown on the page with the plans.

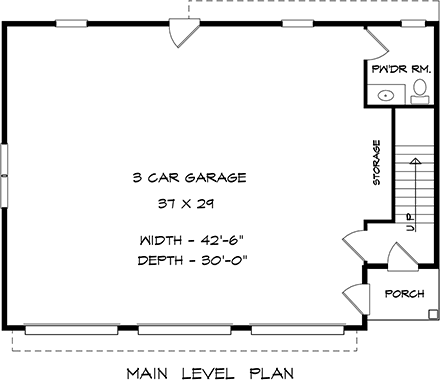

FLOOR PLAN-Included with your plans will be a detailed floor plan, 1/4 inch scale, including location of lights, receptacles, switches and plumbing fixtures. Window and door sizes are noted.

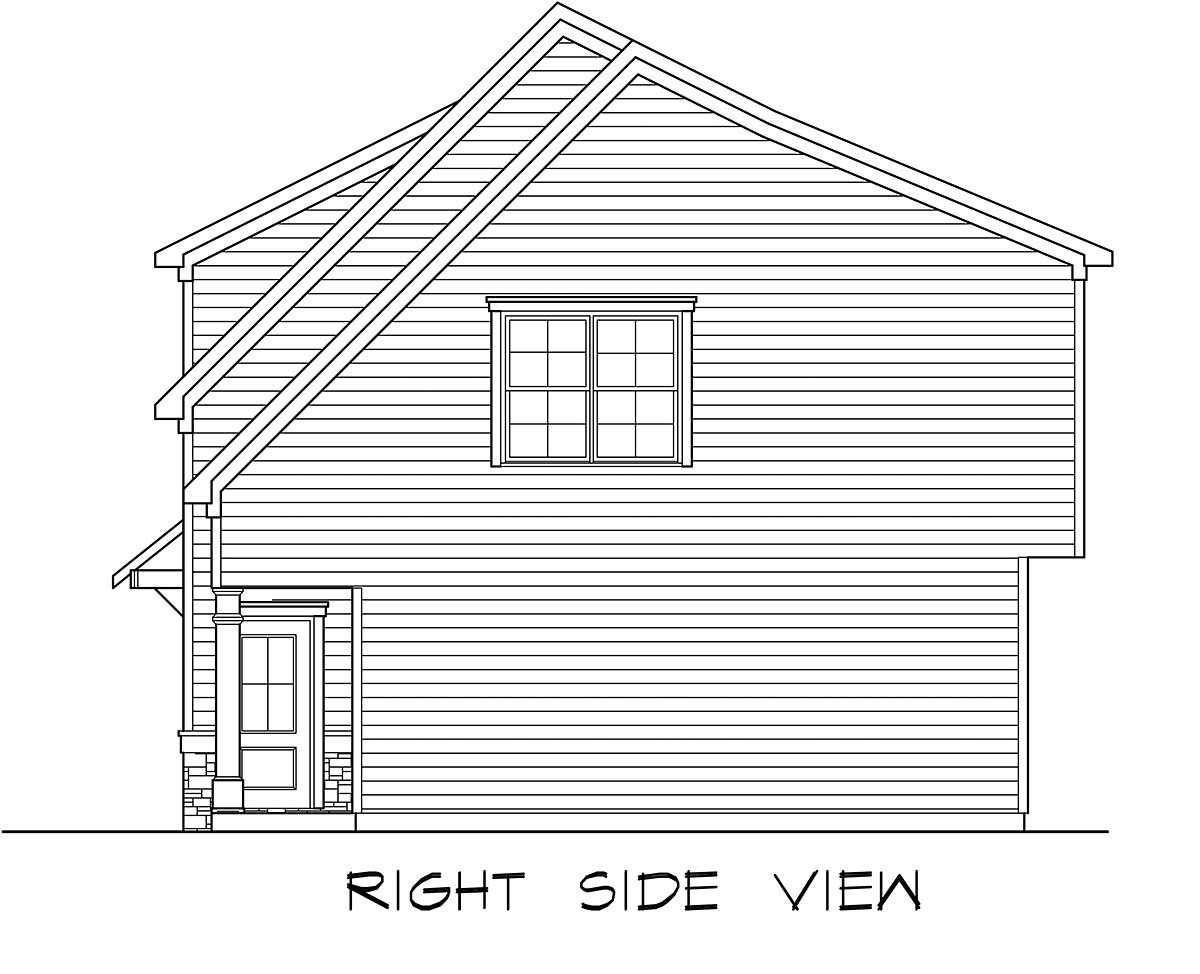

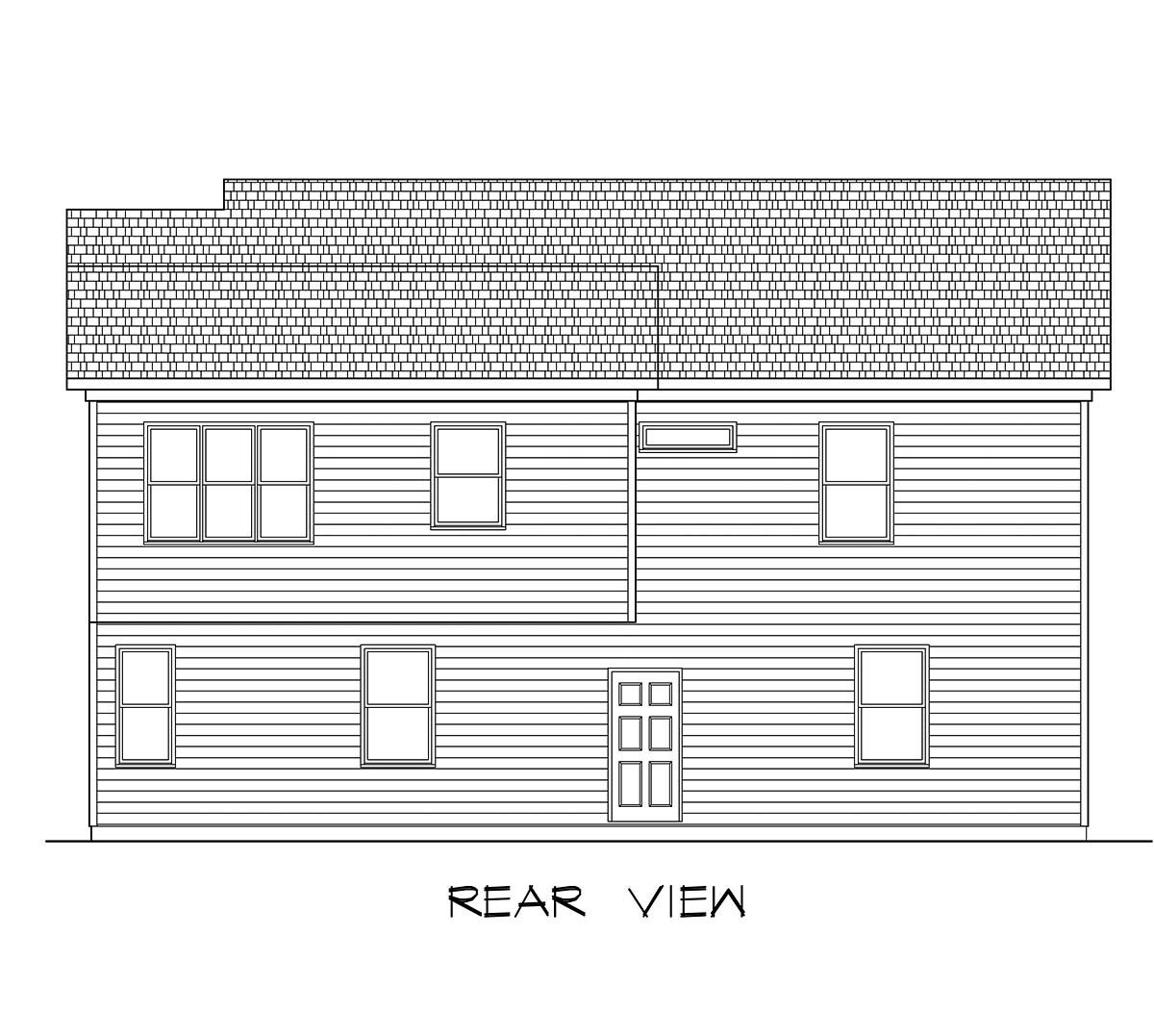

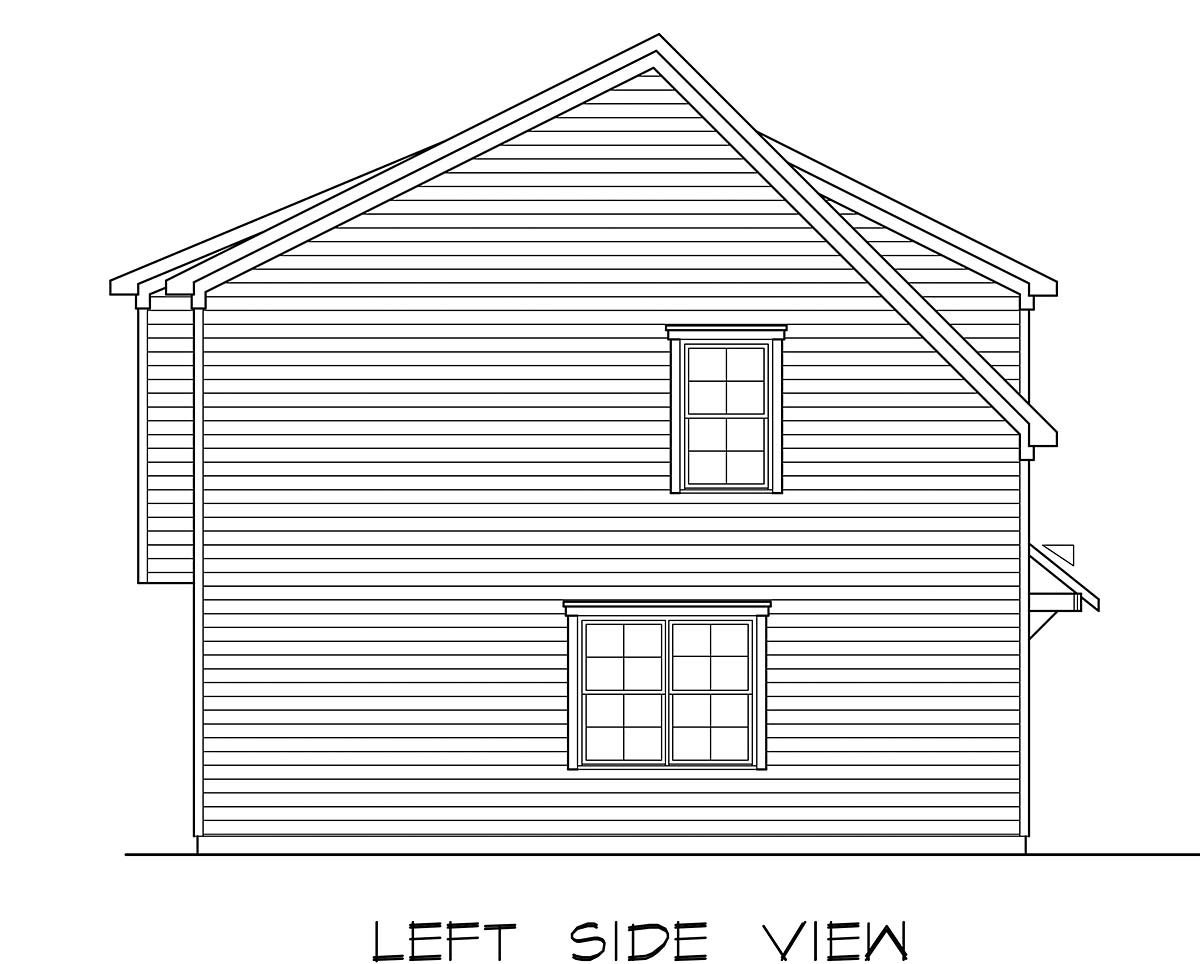

ELEVATIONS-Our plans include complete front elevations drawns at 1/4" scale, other elevations drawn at 1/8" scale.

DETAILS-We furnish any necessary sections for construction of the home like Wall Sections, Stair Sections, Foundation Sections, etc.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate:

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Simply contact the modification department via...

Email Us This is the best and quickest way to get a modification quote!

Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.

It's as simple as that!

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Where is the mechanical room located? Thanks!

A: It would be located in the storage area in the garage.

Q: I am looking at this plan. I would like to take out the bathroom in the garage area that will become the utility room electrical boiler added hot water storage tank and well water. Upstairs in the living quarters I would like to know how big the linen closet is and how big the closets are in the bedrooms. Would also like to make one bedroom larger one smaller is all this possible. Also this house will have forced hot water for heat

A: Linen – 2’-0” X 4’’-3” Bedroom Closets – 2’-0” X 6’-2” It would be easier to make Bedroom 2 smaller and Bedroom 1 larger The heating will be handled with your builder. We can make the requested changes for $375.00 in a 1 week +- timeframe

Q: Hi. Can you tell me where the 30 foot depth is measured? It looks like the second floor kitchen/dining area bumps out a little beyond the bedroom wall. Is the measurement for the family room front wall to the back wall of the kitchen/dining 30 feet or more? Thanks!

A: The 30’-0” is “outside to outside” of the garage. You are correct the upper level in that area extends out 2’-0” more so the total depth “out to out” is 32’-0” and inside to in inside the wall is 31’-1”

Q: What type of CAD file is this plan? What year is it?

A: We can export the files in most any Auto Cad year from R-12 to R-2019. If you have a specific year then we would need to know that. If no year is specified than we typically export the files in an R-2010-2012 year format.

Q: Can the60079 be a 2 bedroom? [email protected]

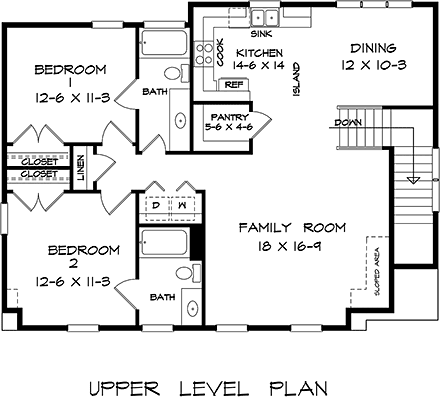

A: It already has two Bedrooms? See the Upper Level Floor Plan

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
