Multi-Family Plan 60117

• PDF File: $1,300.00
• 1 Set: $1,150.00 **
• 5 Sets: $1,400.00
• 5 Sets plus PDF File: $1,600.00
• CAD File: $1,950.00
  Single Build License issued on CAD File orders.
• Materials List: $150.00
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $65.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Crawlspace : No Additional Fee
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $150.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1796 sq ft
Main Living Area:	1796 sq ft
Garage Type:	None
Foundation Types:	Crawlspace Slab
Exterior Walls:	2x4 2x6 - * $150.00
House Width:	63'0
House Depth:	42'6
Number of Stories:	1
Bedrooms:	2
Full Baths:	2
Max Ridge Height:	15'6 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Stick
Main Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Entertaining Space
• Front Porch
• Open Floor Plan
• Rear Porch
• Storage Space

Traditional Style, 1796 Sq Ft, 2 Bed, 2 Bath

Southern, Traditional Style Multi-Family Plan 60117 with 1796 Sq Ft, 2 Bed, 2 Bath

Cover Sheet, showing architectural rendering of the residence

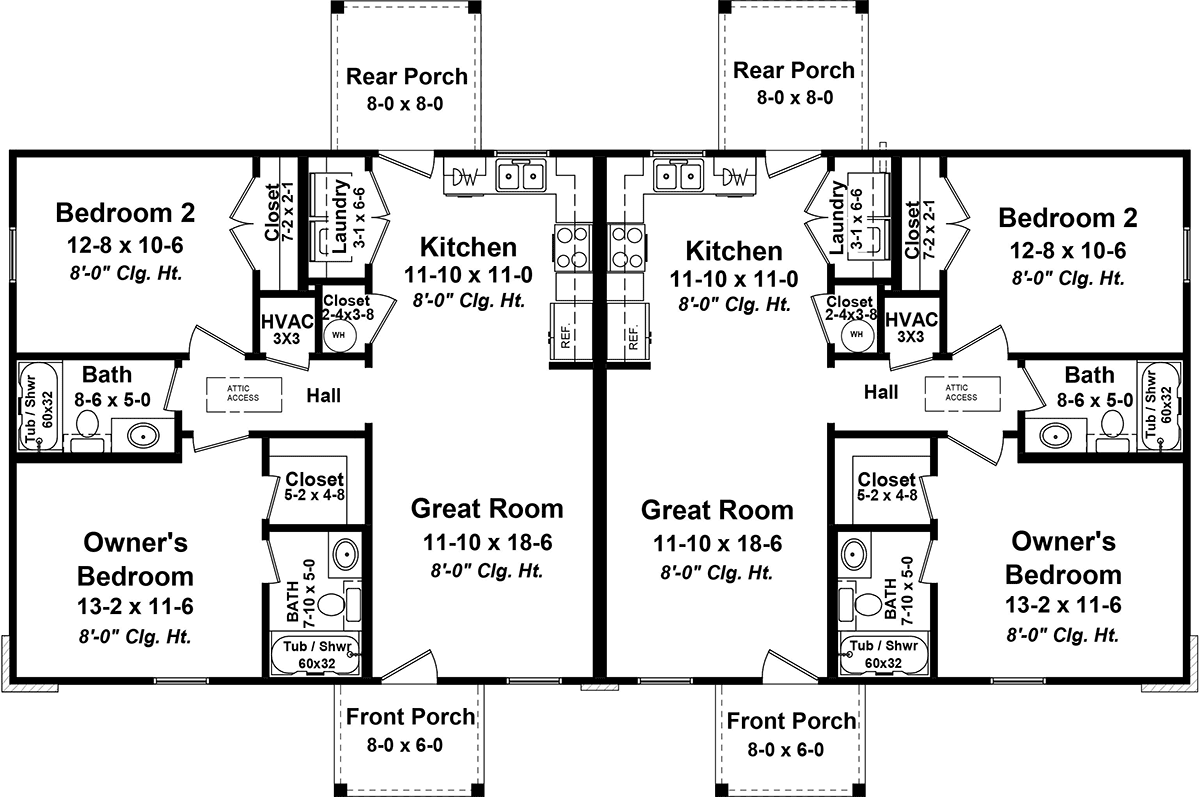

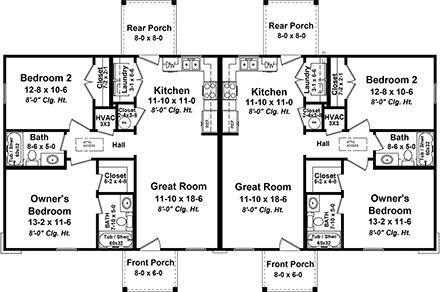

Floor Plan/Plans (scale: 1/4" = 1' - 0")

Cabinet Elevations (scale: 3/8" = 1' - 0")

Electrical Plan Layout with Electrical Symbols Legend

Exterior Elevations (typically 4)

Typical Exterior Wall Section (scale: 3/4" = 1' - 0")

Section Thru Building (usually 1/2" = 1' - 0", transverse section)

Roof Drainage Plan (scale: 1/8" = 1' - 0")

Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")

Short-form FHA/VA Specifications form

License to Build

Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Any plan less than 1200 heated sq ft is formatted on 18x24 size paper. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.

This Plan is a USDA Rural Development Certified Plan
