Garage-Living Plan 60143

• PDF File: $1,600.00
• 1 Set: $1,300.00 **
• 5 Sets: $1,475.00
• 5 Sets plus PDF File: $1,750.00
• CAD File: $2,125.00
  Single Build License issued on CAD File orders.
• Materials List: $150.00
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional License Fee: $250.00
  Provides you with one additional license to build (a total of two builds).
• Additional Sets: $45.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $150.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	741 sq ft
Main Living Area:	741 sq ft
Bonus Area:	810 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x4 2x6 - * $150.00
House Width:	44'0
House Depth:	52'0
Number of Stories:	2
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	26'3 from Front Door Floor Level
Primary Roof Pitch:	0
Roof Framing:	Unknown
Main Ceiling Height:	10'
Upper Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Open Floor Plan
• Pantry
• Storage Space

Traditional-Style Barndominium Plan with Stalls and Tractor Storage

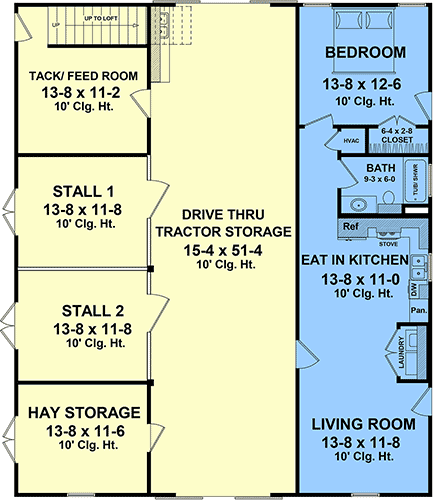

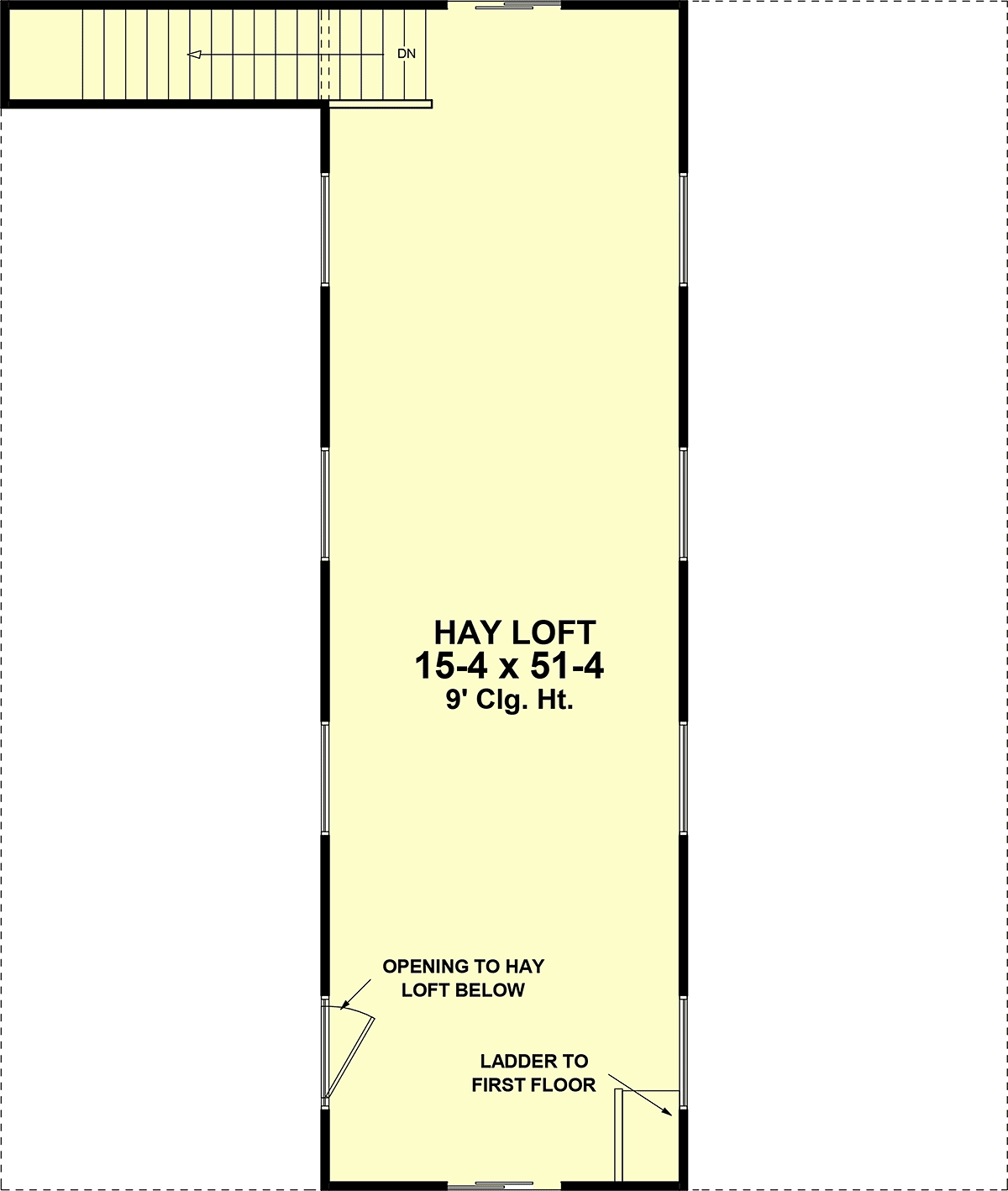

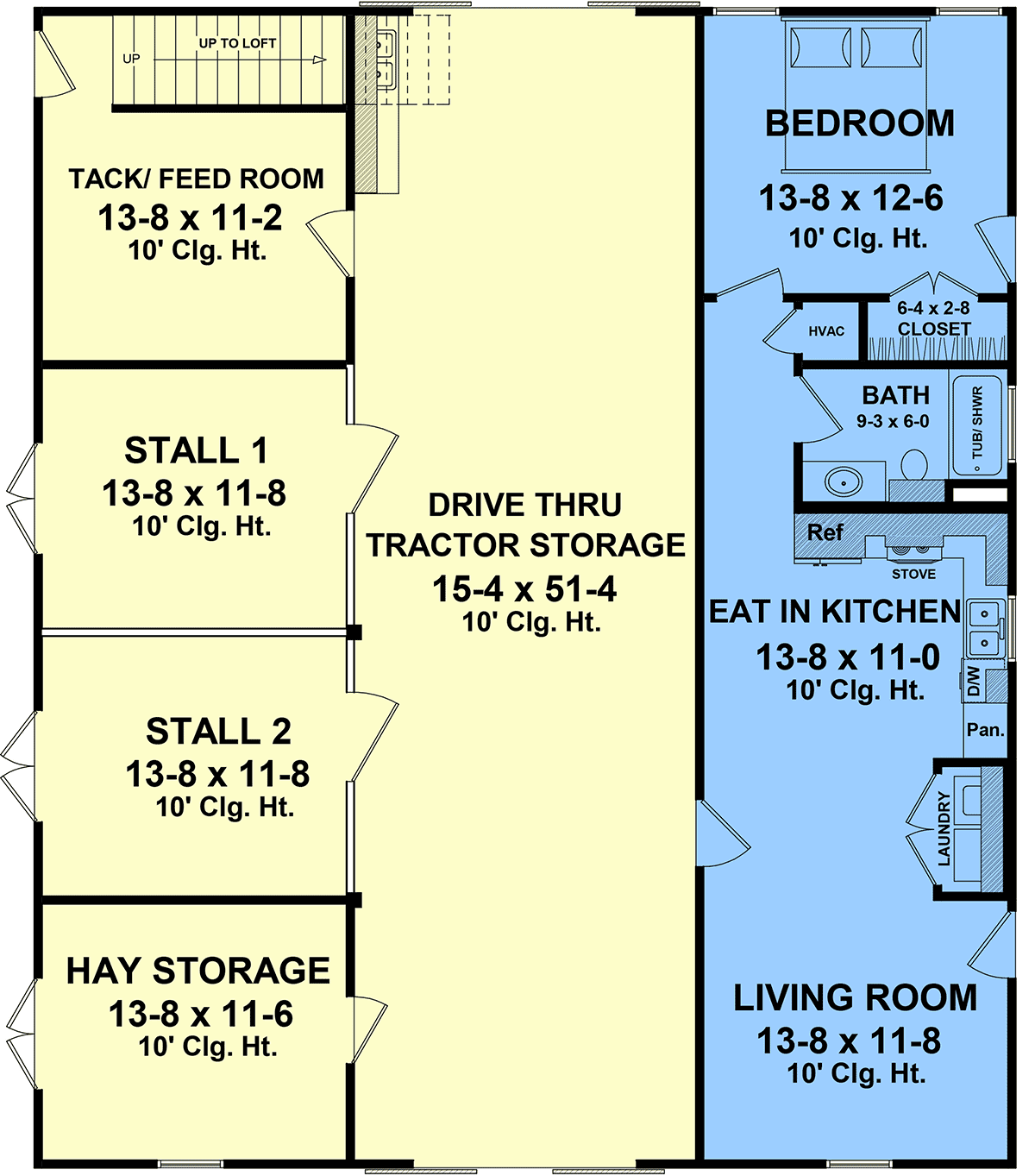

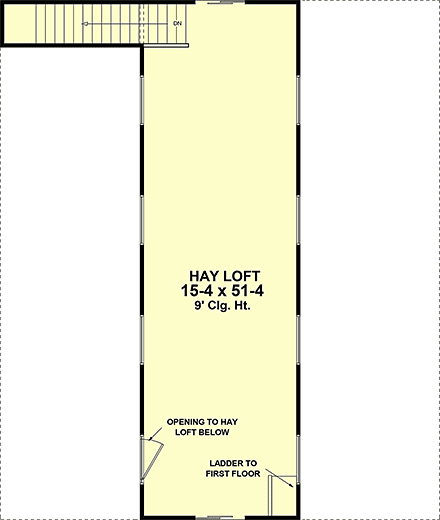

This charming and functional barndominium blends rustic elegance with modern convenience. Designed for both comfortable living and practical farm use, it features a spacious drive-through tractor storage area, dedicated hay storage, and a well-equipped tack and feed room. The layout includes two horse stalls, offering an ideal setup for equestrian enthusiasts. Above, a versatile hay loft provides additional storage. The highlight of this design is the cozy live-in apartment, complete with thoughtfully designed spaces that make country living both stylish and efficient.

Cover Sheet, showing architectural rendering of the residence

Floor Plan/Plans (scale: 1/4" = 1' - 0")

Cabinet Elevations (scale: 3/8" = 1' - 0")

Electrical Plan Layout with Electrical Symbols Legend

Exterior Elevations (typically 4)

Typical Exterior Wall Section (scale: 3/4" = 1' - 0")

Section Thru Building (usually 1/2" = 1' - 0", transverse section)

Roof Drainage Plan (scale: 1/8" = 1' - 0")

Foundation Plan and Details (plan scale: 1/4" = 1'-0"; details: 3/4"=1'-0")

Short-form FHA/VA Specifications form

License to Build

Plans range in number of pages from 5 to 13 pages on 24" x 36" sheets. Any plan less than 1200 heated sq ft is formatted on 18x24 size paper. Printed on a wide-format xerox machine to guarantee quality of the prints and very good legibility. Prints are printed on white bond paper. Reproducible plans are printed on eraseable vellum.

This Plan is a USDA Rural Development Certified Plan

Receive a FREE modification estimate:

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Simply contact the modification department via...

Email Us This is the best and quickest way to get a modification quote!

Please include your Telephone Number, Plan Number, Foundation Type, State you are building in and a Specific List of Changes.

It's as simple as that!
