Multi-Family Plan 62603

• PDF File: $945.00
• 5 Sets: $1,195.00

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $75.00

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $300.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $350.00
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $100.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2212 sq ft
Main Living Area:	1106 sq ft
Unfinished Basement Area:	1004 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement Crawlspace - * $300.00 Slab - * $350.00
Exterior Walls:	2x4 2x6 - * $100.00
House Width:	72'
House Depth:	52'
Number of Stories:	1
Bedrooms:	4
Full Baths:	4
Primary Roof Pitch:	8:12
Roof Load:	20 psf
Roof Framing:	Truss
Porch:	105 sq ft
FirePlace:	Yes
1st Floor Master:	Yes

* May require additional drawing time.

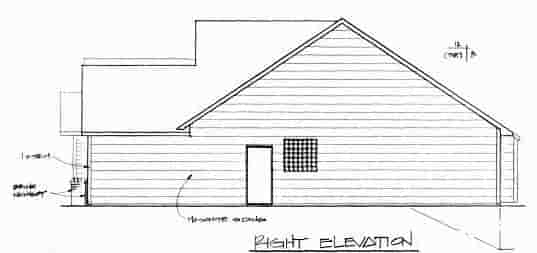

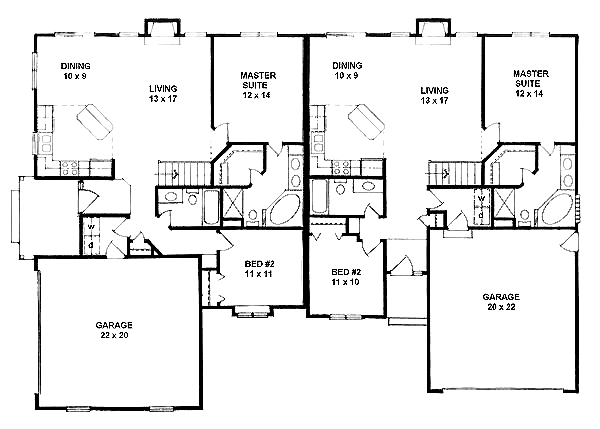

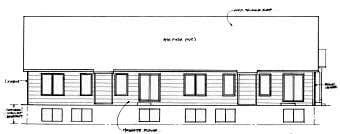

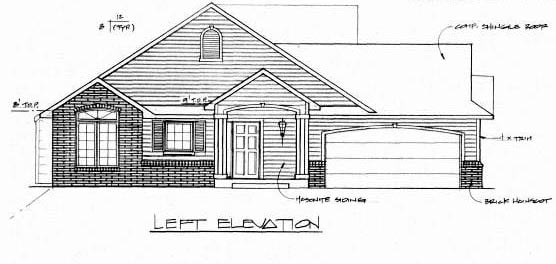

1/4" scale fully dimensioned Foundation/ Basement Plan Basement plan also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's. 1/4" scale fully dimensioned Floor Plan In order to simplify construction, We use the most comprehensive dimensioning method in the industry. 1/4" scale Front, Side and Rear Elevations 1/4 inch scale elevations all the way around clarifies construction and can be used for Model building templates as well.

Roof plan An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.

Electrical Shown right on the floor plan indicates locations for switches and outlets (and no we don't slack on kitchen outlets).

Kitchen Cabinet Details, Wall section, Stair and Fireplace Details All drawn 1/2" scale provide easy viewing of the specific areas.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!
