Plan Pricing from $945.00

Plan Pricing

PDF File: $945.00
5 Sets: $1,195.00

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $150.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $75.00

Available Foundation Types:

Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.
Crawlspace : $300.00
May require additional drawing time, please call to confirm before ordering.
Slab : $350.00
May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

2x4: No Additional Fee
2x6: $100.00
(Please call for drawing time.)

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	2190 sq ft
Main Living Area:	1095 sq ft
Garage Area:	880 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement Crawlspace - * $300.00 Slab - * $350.00
Exterior Walls:	2x4 2x6 - * $100.00
House Width:	72'
House Depth:	48'
Number of Stories:	1
Bedrooms:	4
Full Baths:	4
Primary Roof Pitch:	6:12
Roof Framing:	Truss
Porch:	56 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	8'

* May require additional drawing time.

What's Included?

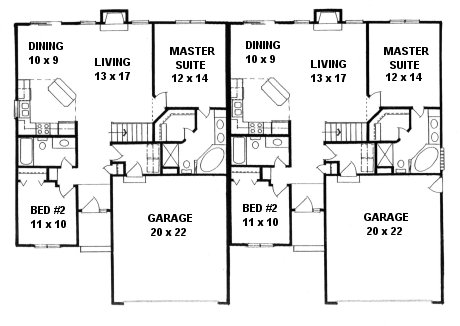

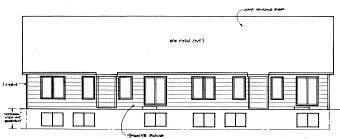

1/4" scale fully dimensioned Foundation/ Basement Plan Basement plan also includes "future finish" Recreation Room, 1 or 2 Bedrooms, Bathroom and Storage area's. 1/4" scale fully dimensioned Floor Plan In order to simplify construction, We use the most comprehensive dimensioning method in the industry. 1/4" scale Front, Side and Rear Elevations 1/4 inch scale elevations all the way around clarifies construction and can be used for Model building templates as well.

Roof plan An eighth-inch scale "Birds-eye" view of the roof helps to simplify construction by showing all the valleys, hips, ridges etc.

Electrical Shown right on the floor plan indicates locations for switches and outlets (and no we don't slack on kitchen outlets).

Kitchen Cabinet Details, Wall section, Stair and Fireplace Details All drawn 1/2" scale provide easy viewing of the specific areas.

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Where would furnace/hot water heater be located if no basement?

A: Typically the contractor relocates the mechanical equipment for slab or crawlspace foundations, usually they just put them in the garage. Some plans including this one, the stairway can made into a mechanical closet with access from the utility room (a little extra space there could go into the MBR walk-in closet).

Q: Because our property is in a subdivision that does not allow duplexes (10 acres) we were told that if there was no firewall between two units and the plans would say "single family" that we could build it on our property. This is for an elderly brother and sister. Is it possible to get plans with no firewall and have them state single family house plans?

A: Yes, the firewall can be removed and the plan re-dimensioned to reflect and be labeled as a single family home however, I would highly recommend that city/county officials are aware and approve of these changes before purchasing the plans. The changes would add $50 to the cost of the plans and take 1-3 business days to complete the work from the time of order.

Q: Dimensions of master closet? How long is the wall the separates the living room and master bedroom?

A: MBR Closet is 6’-2” x 7’-8” inside
Wall between MBR/Living is about 12’ before the angle.

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
