Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Bonus Area: | 560 sq ft |
| Garage Area: | 828 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 3 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 36' |
| House Depth: | 23' |
| Number of Stories: | 2 |
| Max Ridge Height: | 26' from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Truss |
What's Included?
-foundation plan
-main floor paln
-upper floor plans (if applicable)
-roof plan
-truss diagrams and building section
-construction details
-typical wall section
BCIN # for Ontario customers is available at an additional charge
-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Hi, 34" for the width of the stairs and for the section to the left, it is 21'-4" and on the right it is 10'-0" Hope this helps! Jessica
A: Good day and thank you for your interest in this plan
The difference of 5’ between the depth of the 2nd level and the main floor of this garage is due to the radial configuration of the roof slope and the space that is required for it. There are however 4, 22” x 30” access doors to this attic space (two on either side).
The three garage doors are 9’ wide and 8’ high.
Please let me know if you have any other questions or comments.
Deborah
A: Good day and thank you for taking the time to write
The Shed dormer adds approximately 40 sqare feet and the interior stairs lead up to the bonus area but to not access the outside.
Please let me know if I can further assist you
Deborah
A: Good day and thank you for your interest in this plan
Snow load for our plans is 75lbs per square foot but this may vary according to the way the engineered roof trusses are manufactured for your area to meet code.
Please let me know if I can further assist you.
Deborah
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.
Elevation
Level One

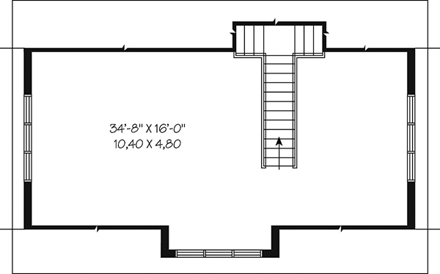

Level Two
Quick Specs
560 Bonus Area3 Car Garage
36' W x 23' D
Quick Specs
560 Bonus Area3 Car Garage
36' W x 23' D
Rear Elevation
