Plan Pricing from $740.00

Plan Pricing

PDF File: $740.00
3 Sets: $855.00
CAD File: $1,190.00
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $150.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $65.00

Additional Notes

Foundation plan is a floating slab
64870,64841,64842,64843 are this garage in different sizes

**All plans by this designer are being updated to IRC 2015 starting on March 13, 2023. This plan may be delayed by 4 business days before shipping.**

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Bonus Area:	620 sq ft
Garage Area:	960 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	32'
House Depth:	30'
Number of Stories:	2
Max Ridge Height:	24'9 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Load:	45 psf
Roof Framing:	Truss

What's Included?

All our house plans include:

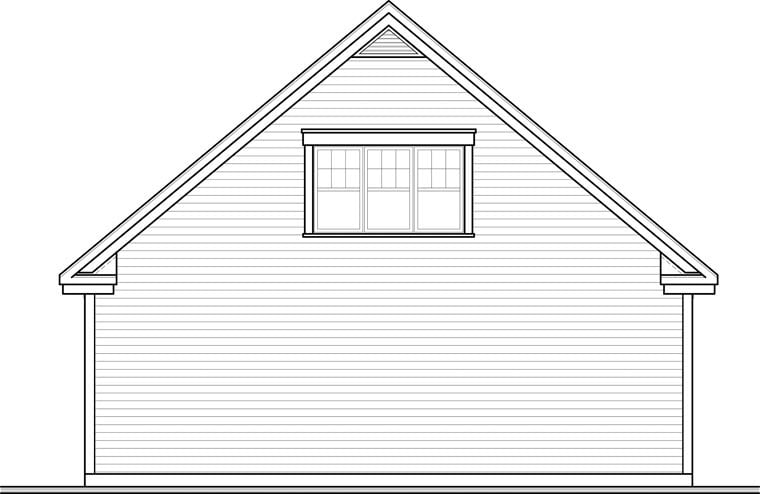

-4 elevations
-Foundation plan
-Ground floor plan
-Upper floor plan (if applicable)
-Roof plan
-Truss diagrams and building sections (manufactured trusses required – no structural details included)
-Construction details
-Typical wall section

NOT included:

-Engineering
-HVAC (Heating, ventilation and air conditioning)
-Electrical and plumbing plans

What's included in our house plans detail

BCIN # for Ontario customers is available at an additional charge

-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.

Modifications

Want to make changes to a house plan at Family Home Plans?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Q & A

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Previous Q & A

Q: Hi, I am looking at this plan and would like additional information on the upper floor regarding the room size and height. Specifically I am assuming that the 20'8" width is total and I see a dotted line. Assume the dotted line is to some ceiling height, what is that. The walls on the outer edges, what is the height there?

A: Good moring, For this plan, the wall is 3’-8’’ high at the lowest and goes up for about 5’-4’’ before it gets to 8’-2’’ high. The dotted line is the limit between the flat and sloped ceiling. Hope this helps!

Q: What is the height from the gutter line to the peak of the roof? And also what is the measurement from the gutter line down to the ground? What is the ceiling height inside the garage?

A: What is the height from the gutter line to the peak of the roof? Approximately 14'-11" And also what is the measurement from the gutter line down to the ground? 10'-8" What is the ceiling height inside the garage? 9'-8"

Q: Please supply the ceiling heights for the first and second floor. Thanks

A: Good day, The ceiling height for the second level is 8’-0’’ Thanks! Jessica

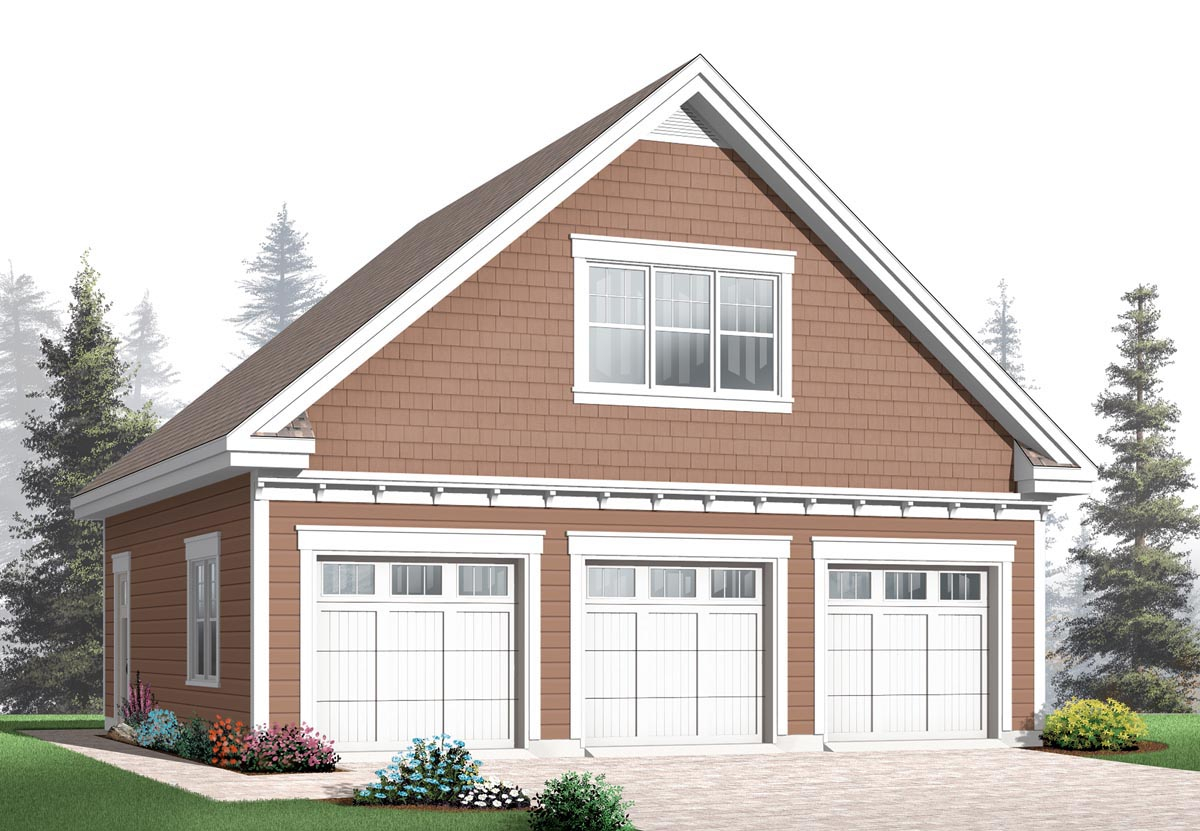

Q: Are the garage doors 9 X 7 or 8 X 7. 32 feet does not seem like enough for a 9 X 7 door. I want a gable entry with storage above but with 9 X 7 doors. Thanks for your help

A: Good day and thank you for taking the time to write.

The 3 garage doors on the standard plan are 8’ wide and 7’ high but we would be happy to provide a free estimate to modify the plan to fit your needs. The gable storage area is 20’8” wide and 28’8” deep with a sloped ceiling.

Please let me know if we can further assist you

Regards

Q: Could you please give me the garage door dimensions.

A: The three garage doors of this plan are 8 feet (width) by 7 feet (height).

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
