Multi-Family Plan 65704

• PDF File: $1,550.00
• 4 Sets: $1,655.00
• 5 Sets: $1,700.00
• 5 Sets plus PDF File: $1,825.00
• 8 Sets: $1,810.00
• CAD File: $2,900.00
  Single Build License issued on CAD File orders.
• Materials List: $150.00
• Right Reading Reverse: $150.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $50.00

Additional Notes

foundation and specifications not included

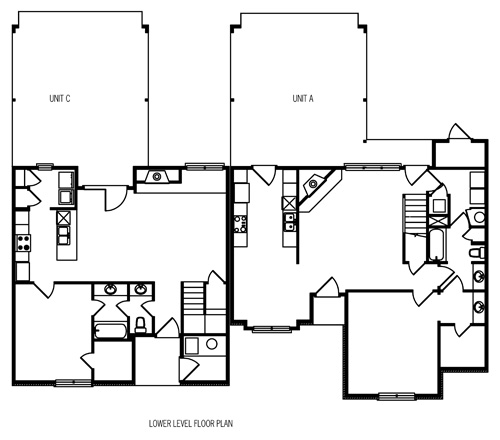

Unit A First Floor: 1065 Sq Ft.
Unit C Frist Floor: 901 Sq Ft.

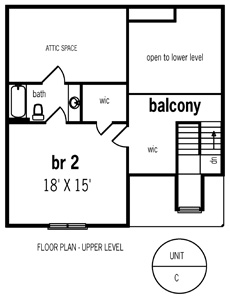

Unit A Second Floor: 424 Sq Ft.
Unic C Second Floor: 501 Sq Ft.
Unit A Total Living: 1489 Sq Ft.
Unit C Total Living: 1402 Sq Ft.


Please call for 2nd Day and Overnight Shipping charges on printed set orders.

If a materials list is not currently available, one can be purchased for 275.00 in addition to the plan cost. Please call 800-482-0464 to order.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	5782 sq ft
Garage Type:	Attached
Garage Bays:	6
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	70'2
House Depth:	55'
Number of Stories:	2
Bedrooms:	6
Full Baths:	6
Max Ridge Height:	34' from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Framing:	Unknown
Porch:	96 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	8'

This duplex's exciting facade features multiple rooflines and charming half-round windows, creating the look of a one-family home with the rental potential of a duplex. You'll love it, and so will your neighbors. The main unit's kitchen serves a bright breakfast nook, and a corner fireplace lends its warmth to the family room. In the other unit, a smaller footprint still allows for a handsome fireplace in the family room. The bedrooms enjoy walk-in closets and private access to compartmentalized baths. You'll also appreciate the vast storage space provided upstairs.

Information Cover Sheet

Foundation Plan Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.

Detailed Floor Plans Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.

Exterior Views

Building Sections and Interior Elevations

Complete Construction Details

Complete Specifications Specifications list the types of materials used in the construction of the home. Finish schedules are provided.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!
