House Plan 65776
Narrow Lot Style with 4 Bed, 3 Bath, 2 Car Garage
sq ft
2020beds
4baths
3bays
2width
34'depth
52'
click for more images
Plan Pricing from $1,100.00
Plan Pricing
Additional Notes
Ceilings heights on all 3 levels are 8' with an overall height of 36'. The roof pitch can be changed to 9:12 in order to reduce the overall height to 32'.Please call for 2nd Day and Overnight Shipping charges on printed set orders.
If a materials list is not currently available, one can be purchased for 275.00 in addition to the plan cost. Please call 800-480-0464 to order.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2020 sq ft |
| Main Living Area: | 1182 sq ft |
| Upper Living Area: | 838 sq ft |
| Garage Type: | Carport |
| Garage Bays: | 2 |
| Foundation Types: | Crawlspace Slab |
| Exterior Walls: | 2x6 |
| House Width: | 34' |
| House Depth: | 52' |
| Number of Stories: | 2 |
| Bedrooms: | 4 |
| Full Baths: | 3 |
| Max Ridge Height: | 37' from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Framing: | Unknown |
| Porch: | 273 sq ft |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 8' |
| Upper Ceiling Height: | 8' |
Plan Description
Victorian design accents, horizontal wood siding and decorative windows create an exciting exterior for this versatile home. A stairway to the back porch presents accesses to the living room, dining room and master suite. The spacious master suite offers a large sleeping area, built-in bookshelves, a walk-in closet, a dressing area and a corner tub. The toilet and a second vanity are set off to serve as a half-bath for rest of the main floor. The tiled kitchen offers a U-shaped counter, ample storage space and nearby laundry facilities. Three secondary bedrooms share the upper floor with two baths. The open space underneath the house makes an excellent carport or storage area for boats or other equipment.
What's Included?
Information Cover Sheet
Foundation Plan Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.
Detailed Floor Plans Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.
Exterior Views
Building Sections and Interior Elevations
Complete Construction Details
Complete Specifications Specifications list the types of materials used in the construction of the home. Finish schedules are provided.
Foundation Plan Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.
Detailed Floor Plans Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.
Exterior Views
Building Sections and Interior Elevations
Complete Construction Details
Complete Specifications Specifications list the types of materials used in the construction of the home. Finish schedules are provided.
Modifications
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.
Elevation

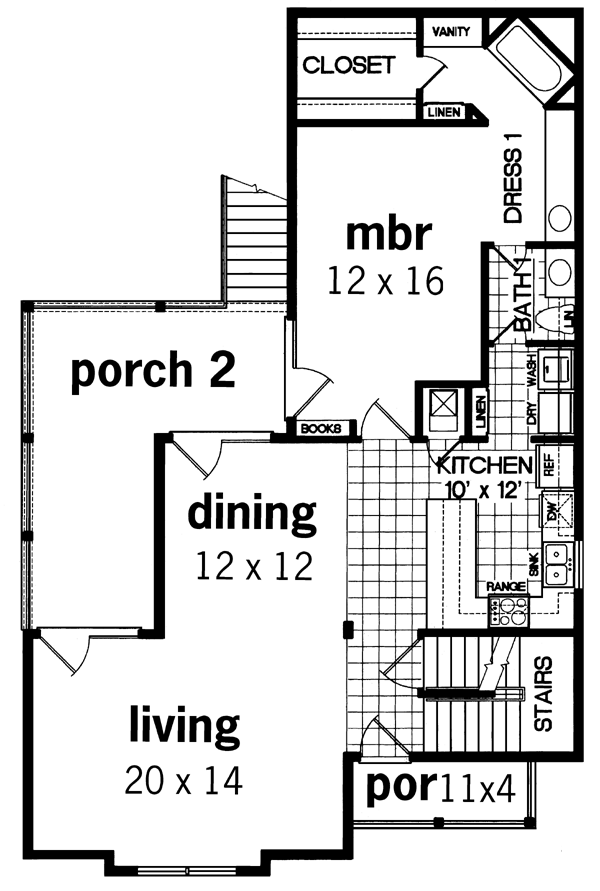

Level One
Level Two
Quick Specs
2020 Total Living Area1182 Main Level
838 Upper Level
4 Bedrooms
3 Full Baths
2 Car Garage
34' W x 52' D
Quick Specs
2020 Total Living Area4 Bedrooms
3 Full Baths
2 Car Garage
34' W x 52' D
Pricing
PDF File: $1,100.004 Sets: $1,185.00
5 Sets: $1,230.00
5 Sets plus PDF File: $1,355.00
8 Sets: $1,340.00
CAD File: $2,100.00
more info
Rear Elevation
Photographs may show modified designs.
