House Plan 65868

Tuscan Style with 3 Bed, 3 Bath, 2 Car Garage | Plan 65868

sq ft

2143

beds

baths

2.5

bays

width

48'

depth

61'

Turn OFF Image Gallery

Add to cart

Plan Pricing from $1,295.00

Plan Pricing

PDF File: $1,295.00
5 Sets: $1,495.00
5 Sets plus PDF File: $1,595.00
CAD File: $2,295.00
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $2,990.00
Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $245.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $60.00

Available Foundation Types:

Basement : $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace : $195.00
May require additional drawing time, please call to confirm before ordering.
Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee
2x6: $345.00
(Please call for drawing time.)

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	2143 sq ft
Main Living Area:	1638 sq ft
Upper Living Area:	505 sq ft
Bonus Area:	497 sq ft
Unfinished Basement Area:	1638 sq ft
Garage Area:	515 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $195.00 Slab
Exterior Walls:	2x4 2x6 - * $345.00
House Width:	47'11
House Depth:	60'6
Number of Stories:	2
Bedrooms:	3
Full Baths:	2
Half Baths:	1
Max Ridge Height:	29'6 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Load:	20 psf
Roof Framing:	Stick
Porch:	496 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	10'
Upper Ceiling Height:	9'

* May require additional drawing time.

What's Included?

Our working drawings include the following..
We use AutoCAD to produce our working drawings. This allows us to be 100% accurate on our dimensions as well as coordinate all drawings with the highest level of precision. Below are examples of what comes in each working drawing set...

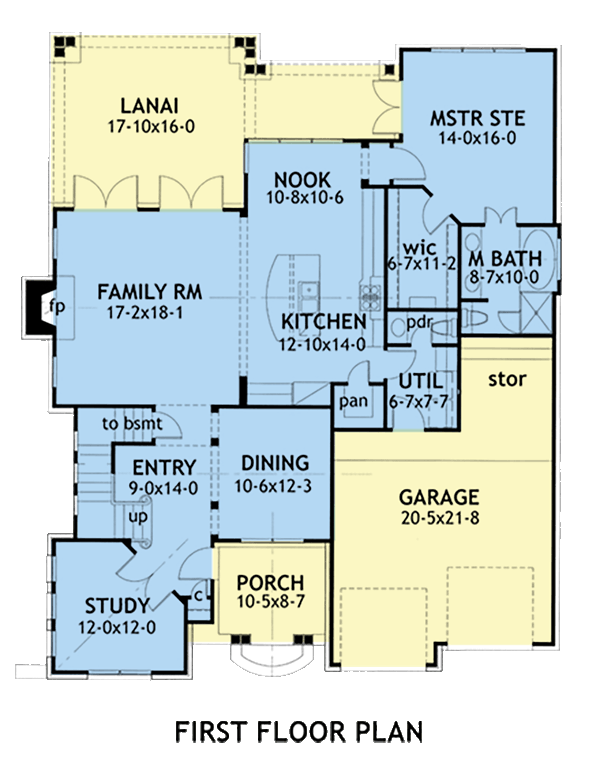

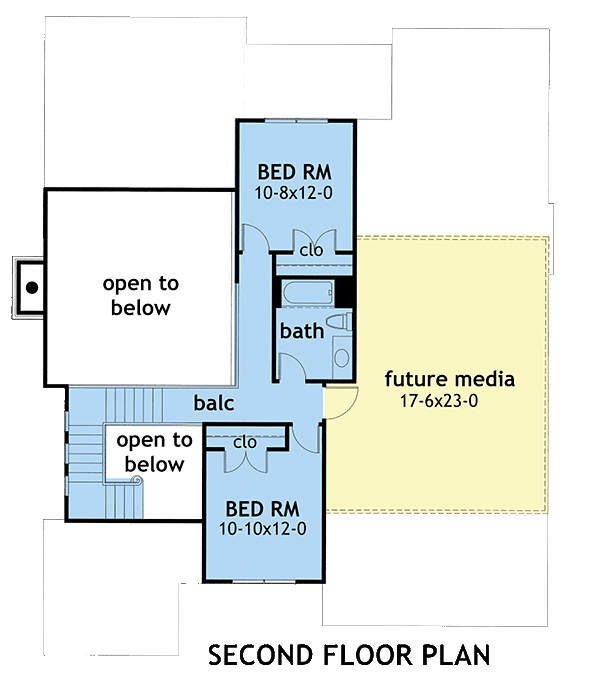

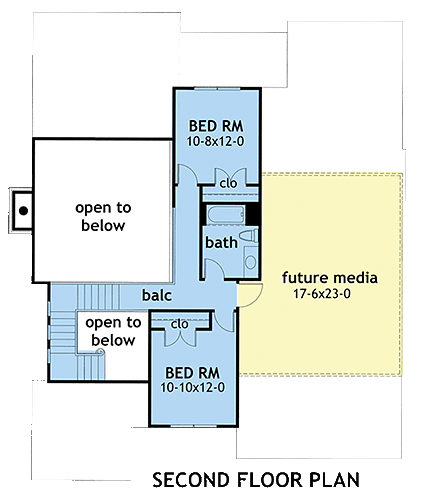

Floor Plans - For each level we include... a 1/4"=1'-0" scale floor plan indicating frame walls and masonry with dimensions, notes, door and window sizes, room names and floor finishes, cabinet, shelving, fixture locations and notes, ceiling conditions, electrical/lighting fixtures and switches.

Exterior Elevations - We include... Front Elevation at 1/4"=1'-0", side and rear elevations at 1/8"=1'-0", plate heights, roof overhangs, material/surface notes, window heights, roof pitches, material hatching for clarity, floor to floor dimensions and any other detail we feel is necessary to explain the construction.

Cabinets/Building Sections- Cabinet elevations at 3/8"=1'-0", showing cabinets, appliance locations, plumbing fixtures, shelving, counter/backsplash surface, cabinet material and finish, niche details and any other special situation that cannot be understood from the plan view. Building Sections are included only when there is no other way to indicate the spatial characteristics of the home. This information is quite often indicated well enough on the elevations and plans.

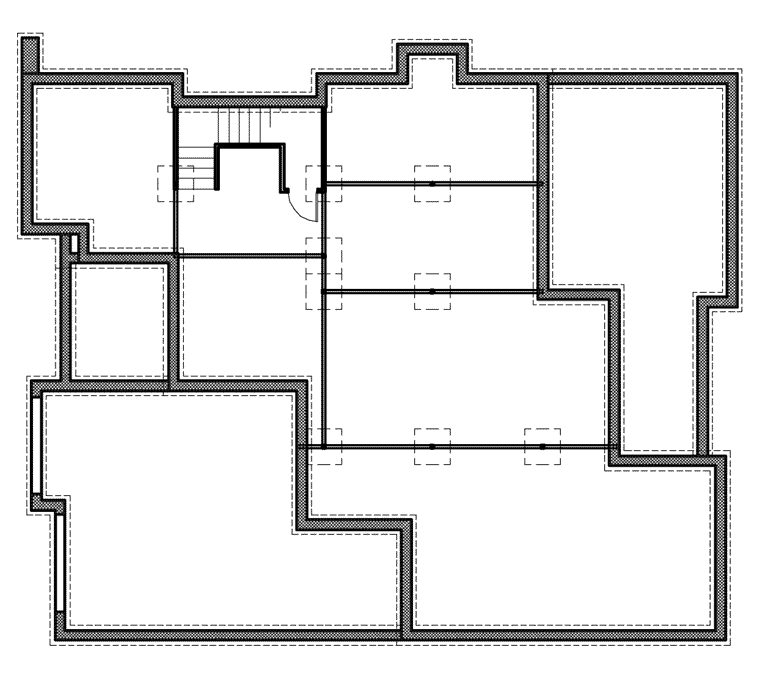

Foundation Plans - We offer a choice of three types of foundations, full basement, crawlspace, and slab foundations. Each comes fully dimensioned, and noted indicating wall composition and thickness, construction detail references to our detail page, beam, pier and column locations and sizes, stair locations for basements, reinforcing steel sizes and step downs in monolithic slabs and ventilation grilles for crawlspaces.

Framing Plans - For each level we include... a 1/8"=1'-0" scale plan indicating rafter, ceiling and floor joists locations, sizes and spacing as well as lumber grade specified, additional bracing and blocking.

Details - For each foundation type we include... 3/4"=1'-0" scale details indicating material composition, size and critical dimensions for construction of the primary foundation.

Modifications

Want to make changes to a house plan at Family Home Plans?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Cost To Build

No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide you with a 10% discount code in your receipt for when you decide to order any plan on our website that will more than pay you back!
Get more accurate results, quicker! No need to wait for a reliable cost.
Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
Cost report for your zip code. (the zip code can be changed after you receive the online report)
Estimate 1, 1-1/2 or 2 story home plans. **
Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
Your estimate is active for 1 FULL YEAR!

View Sample

demo purposes only

Purchase

$24.95 per plan

** Available for U.S. only.

QUICK Cost-To-Build estimates have the following assumptions:

QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.
QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.

Q & A

Previous Q & A

Q: Where is the width of the plan being measured from? Is the fireplace and stone wall on the front elevation included in the width shown online? Is the tub in the Master Bathroom included in the width measurement?

A: The width of 50’-5” includes the fireplace/chimney as well as the tub bump out in the master bath.

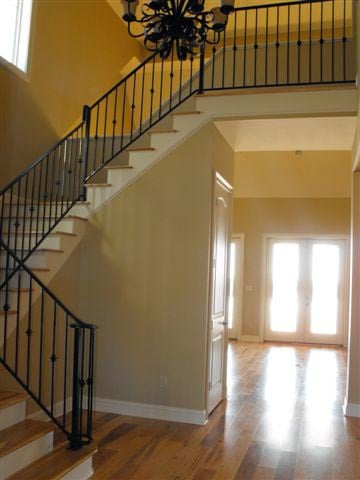

Q: Are the ceilings vaulted in the study? In the 2nd and 3rd bedrooms? Is the overlook from upstairs a half wall or railing? Any additional photos available?

A: Study is 12’ flat. upstairs bedrooms are vaulted from 9’ up to 11’-6”. The overlook is from the top of the stair and a half wall running down the hall to the back bedroom. Sorry, no additional photos.

Q: What is the total square feet of this house?

A: 3154 SF total covered area.

Q: How many windows does this house have?

A: It has 54 windows. That includes all the transoms as separate windows.

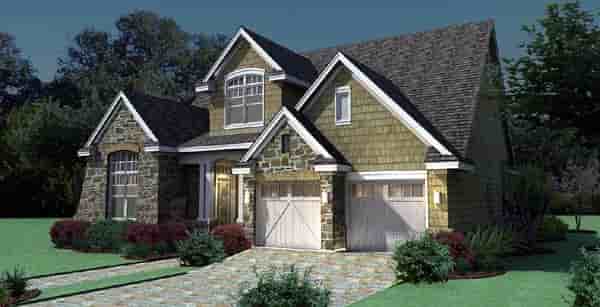

Q: what are size the garage doors? -Roxana

A: 8’ wide x 7’ tall

Q: Do you know if the future media room is full height? If not, what area would be full height? Thank you.

A: There is a 5’ wall at the front and back which slopes up at a 12:12 pitch.

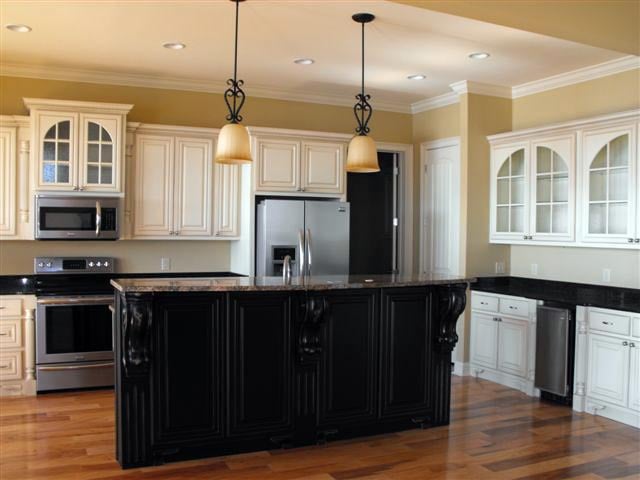

Q: What is the length of the walls that the kitchen cabinets are on?

A: The back wall is 14’-9”.

Q: Are there any photos of the inside of this home? Thank you.

A: Do not have anything yet.

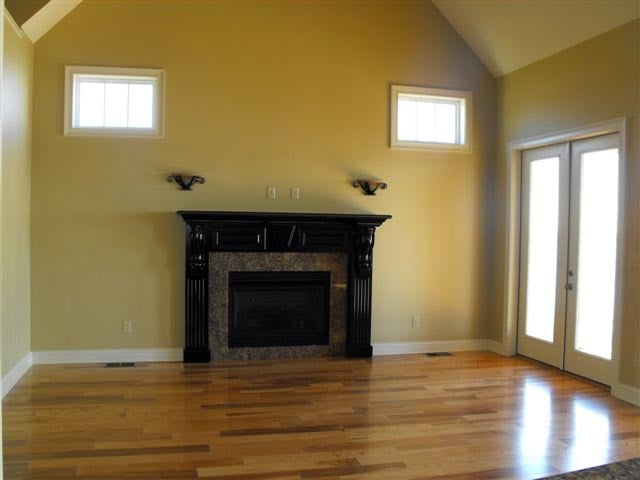

Q: I wanted to check on the ceiling configuration of the family room and master suite? (Flat, Cathedral, Vaulted etc...) and if not flat, how high? Len

A: Family Rm is vaulted with an overlook from the Stair and balcony above. The Master is vaulted at a 6:12 pitch.

Q: Would this plan #65868 look o.k. with a crawlspace?

A: Yes it would - definitely. Actually the way we set up our rendering was about 2'-0" above finished grade.. That's about how high I would figure a crawlspace would set you... give or take for a sloping site.. So what you see is what you would get..

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
