Multi-Family Plan 69645

• 1 Set: $1,225.00 **
• 5 Sets plus PDF File: $1,825.00
• PDF File Unlimited Build: $3,100.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File Unlimited Build: $3,400.00
  Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $355.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Crawlspace : No Additional Fee
• Slab : $415.00
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x4: $415.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2426 sq ft
Main Living Area:	780 sq ft
Upper Living Area:	433 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Crawlspace Slab - * $415.00
Exterior Walls:	2x4 - * $415.00 2x6
House Width:	38'
House Depth:	68'
Number of Stories:	2
Bedrooms:	6
Full Baths:	4
Max Ridge Height:	26' from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	30 psf
Roof Framing:	Truss
Porch:	138 sq ft
1st Floor Master:	Yes
Main Ceiling Height:	8'

* May require additional drawing time.

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

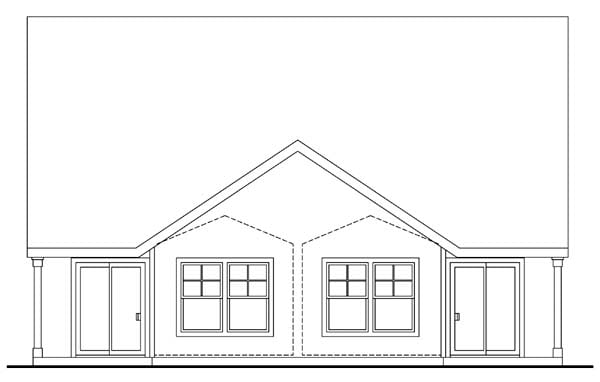

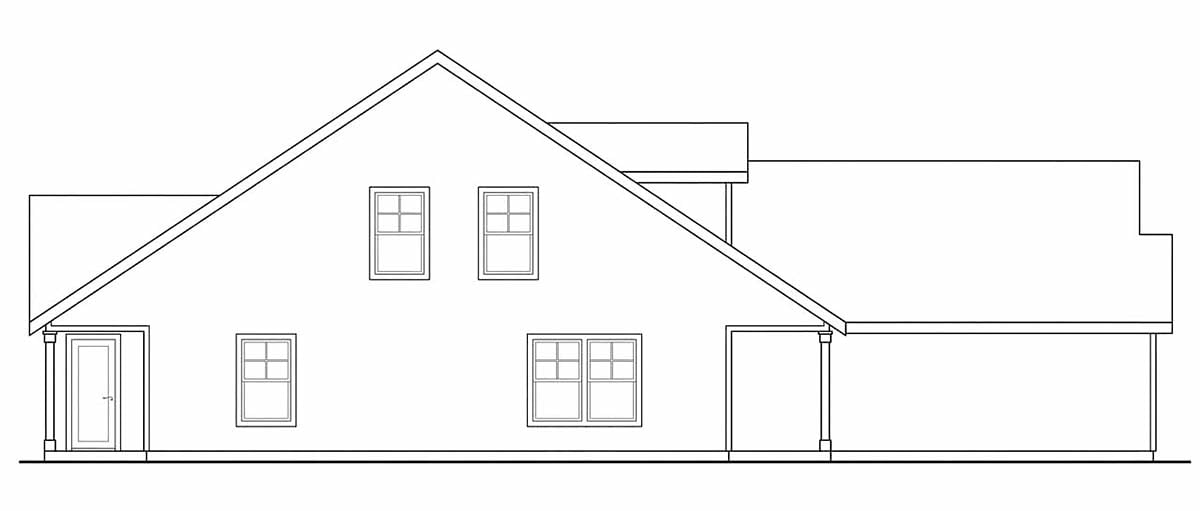

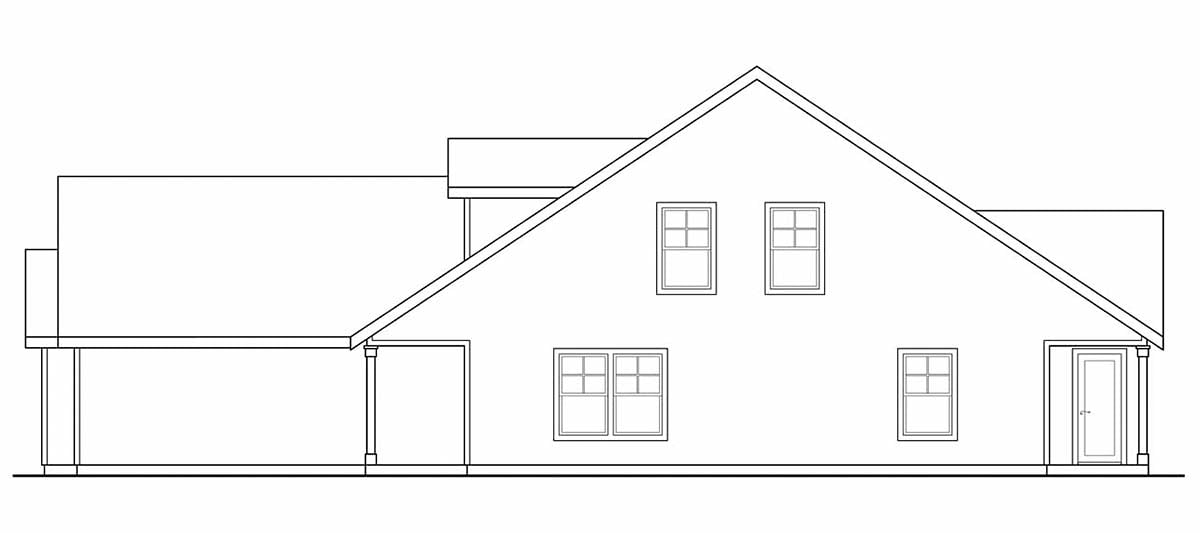

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

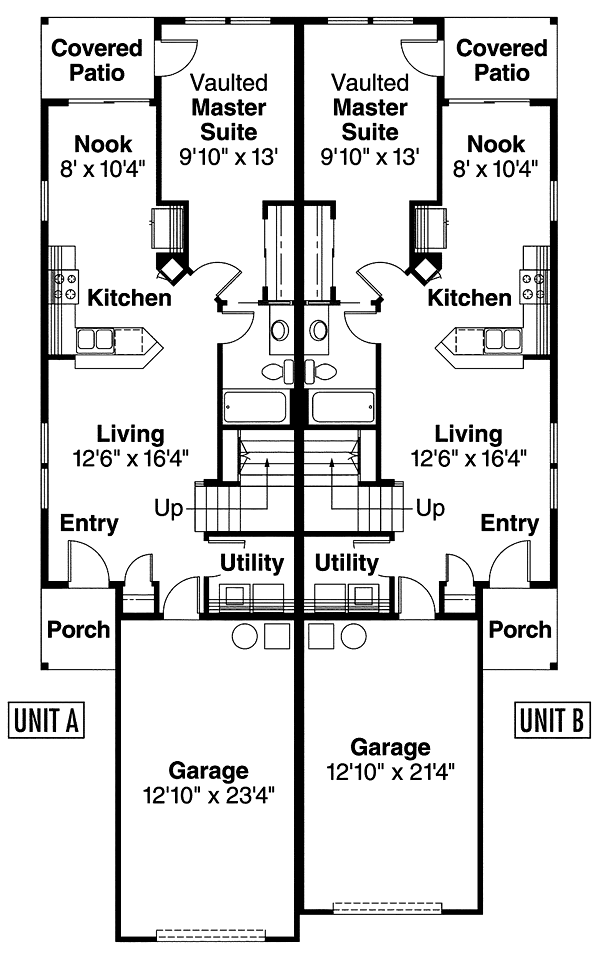

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

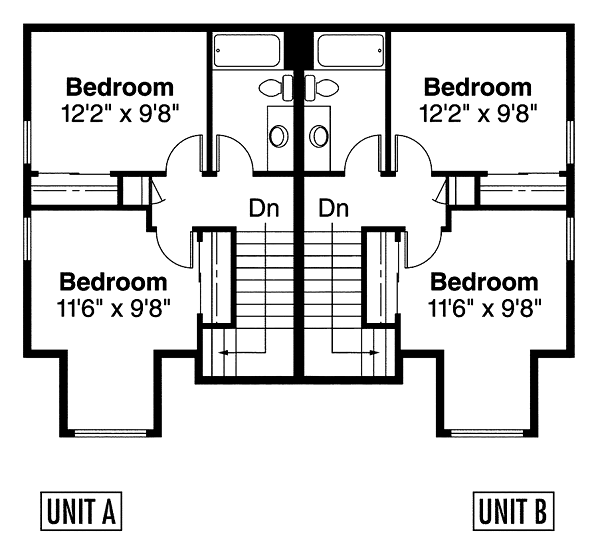

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.
