Multi-Family Plan 69653

• PDF File: $3,600.00
• 1 Set: $1,250.00 **
• 5 Sets plus PDF File: $2,100.00
• CAD File: $3,875.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $4,250.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Right Reading Reverse: $410.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $65.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Basement : $600.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Slab : $475.00
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2568 sq ft
Main Living Area:	1062 sq ft
Upper Living Area:	1506 sq ft
Garage Area:	474 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Basement - * $600.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab - * $475.00
Exterior Walls:	2x6
House Width:	40'
House Depth:	44'
Number of Stories:	2
Bedrooms:	8
Full Baths:	4
Half Baths:	2
Max Ridge Height:	24'6 from Front Door Floor Level
Primary Roof Pitch:	4:12
Roof Load:	25 psf
Roof Framing:	Truss
Porch:	148 sq ft
Main Ceiling Height:	8'

* May require additional drawing time.

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

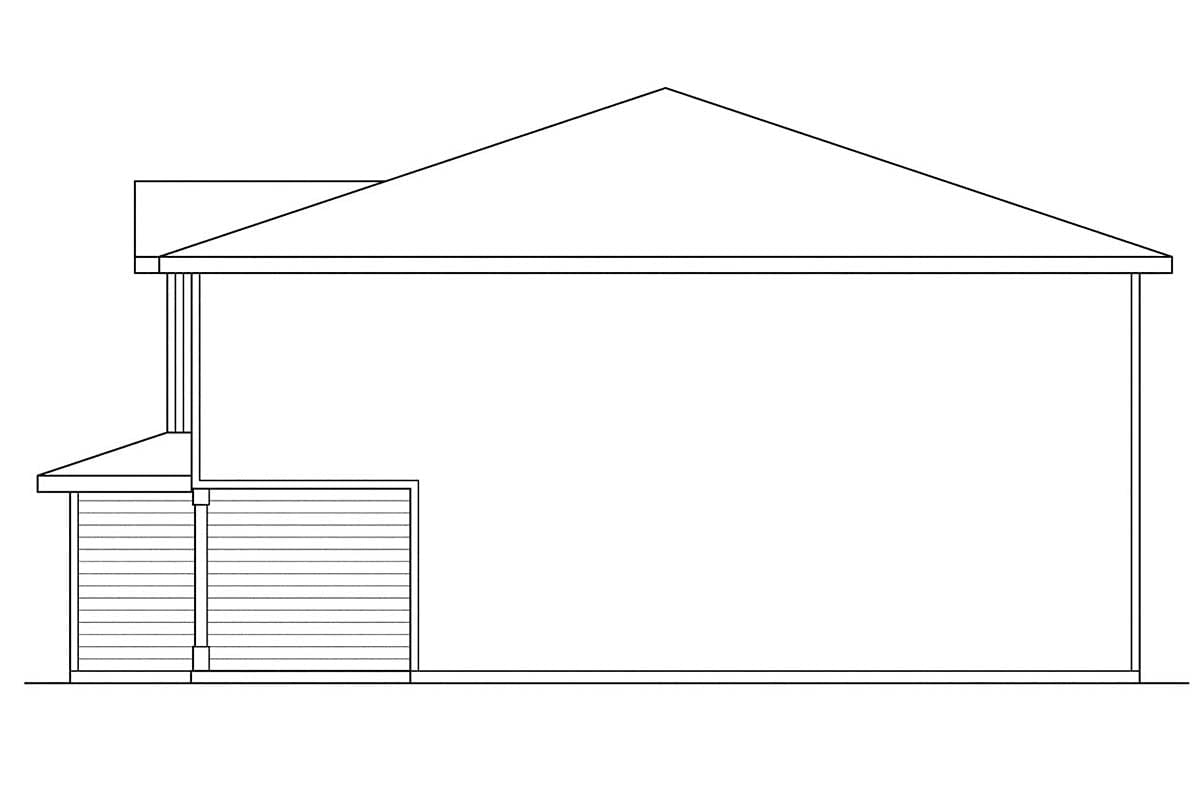

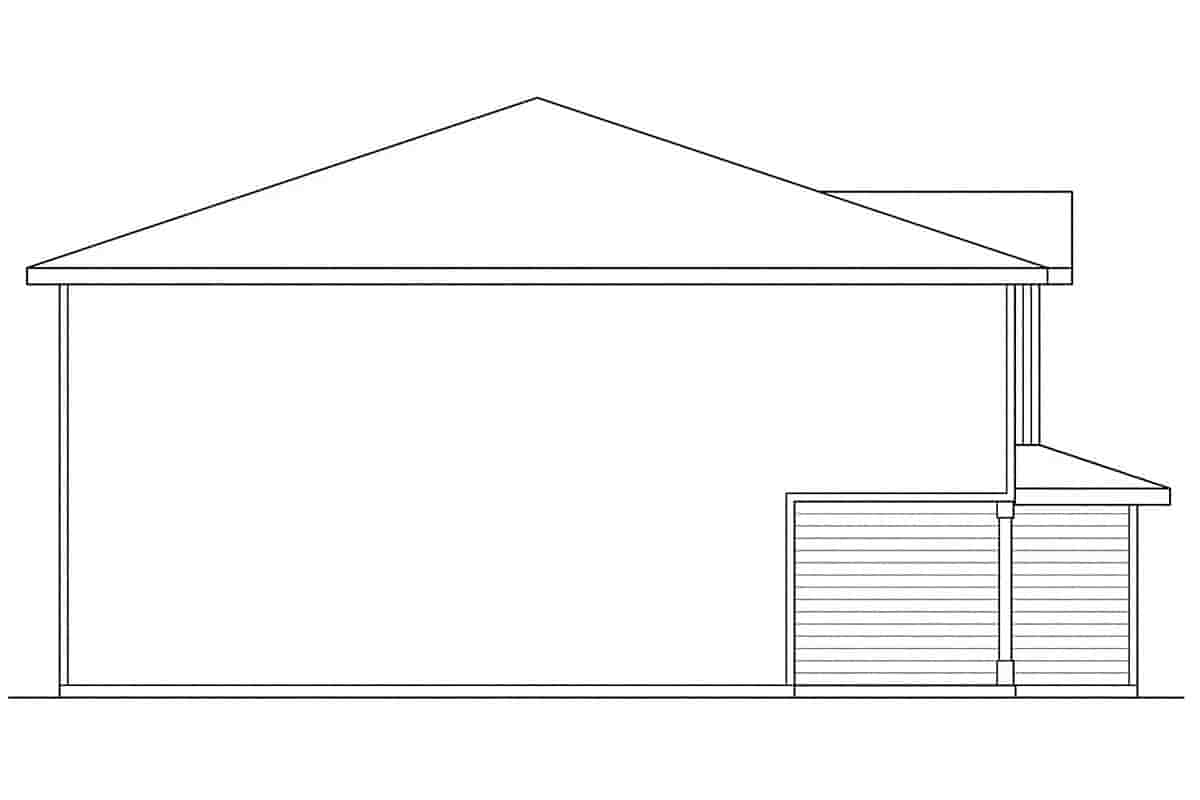

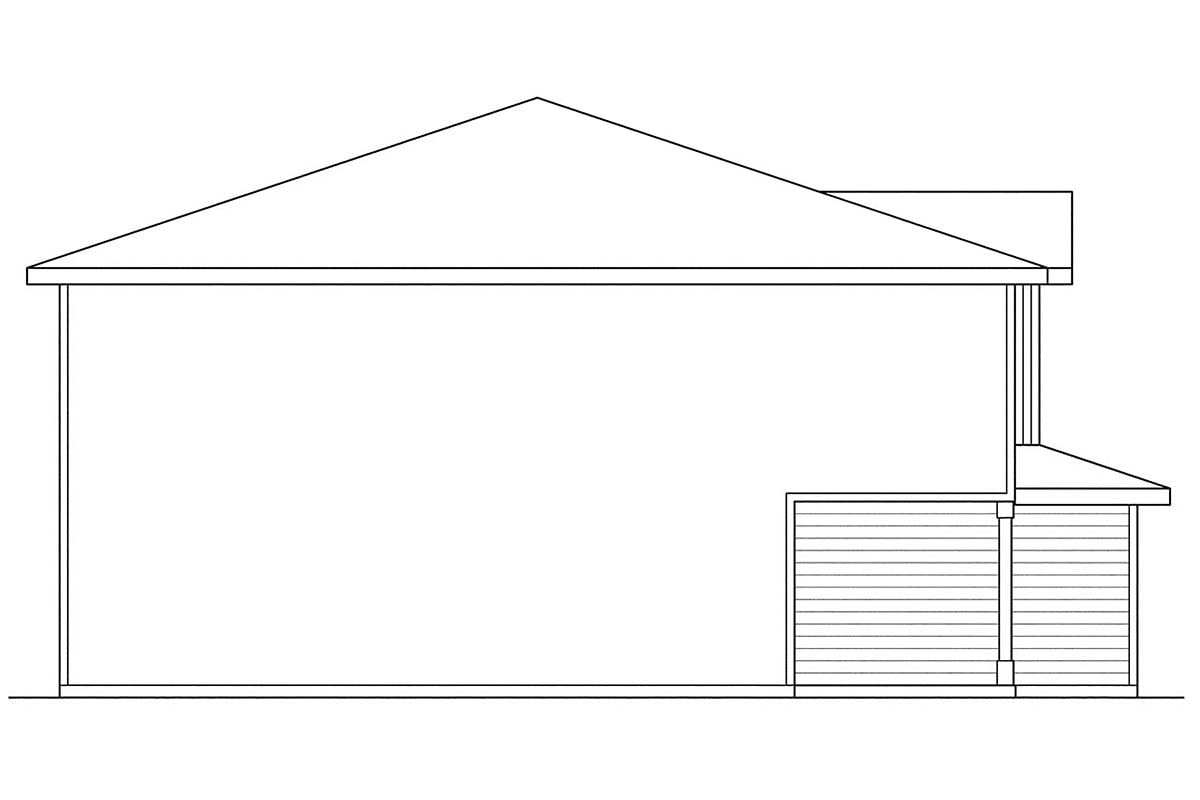

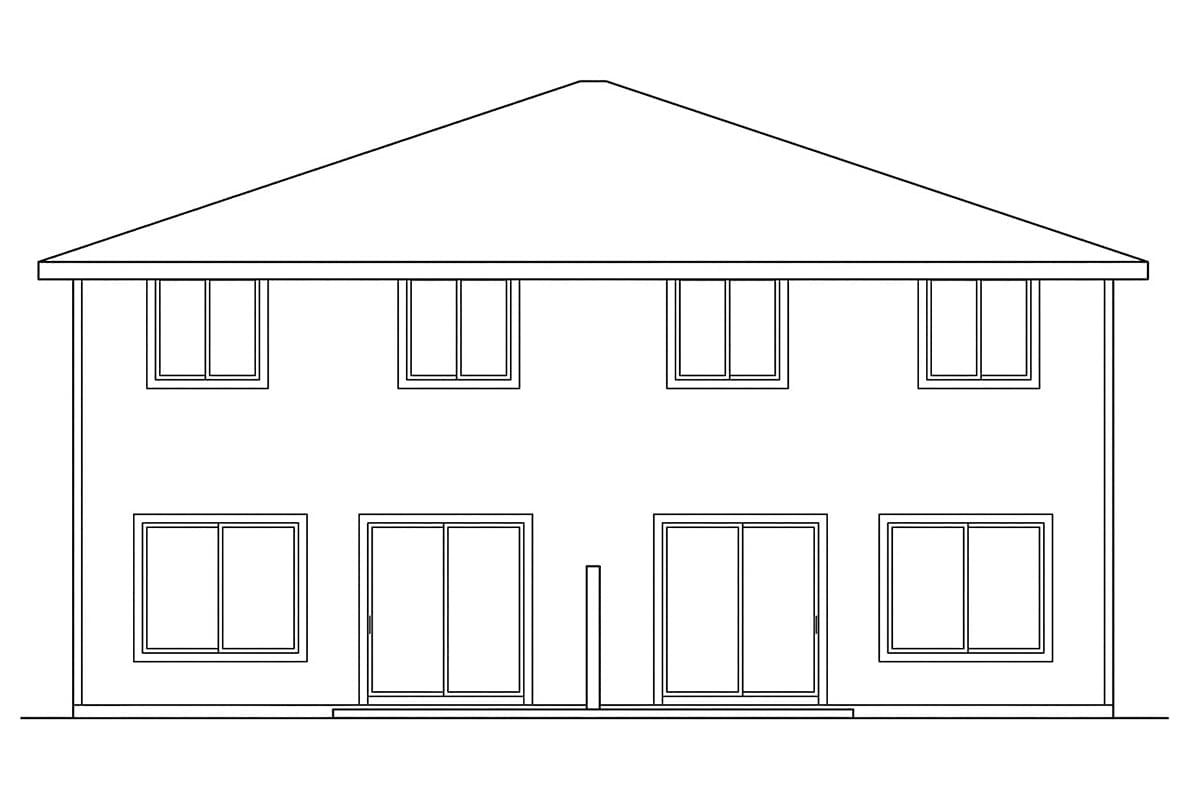

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

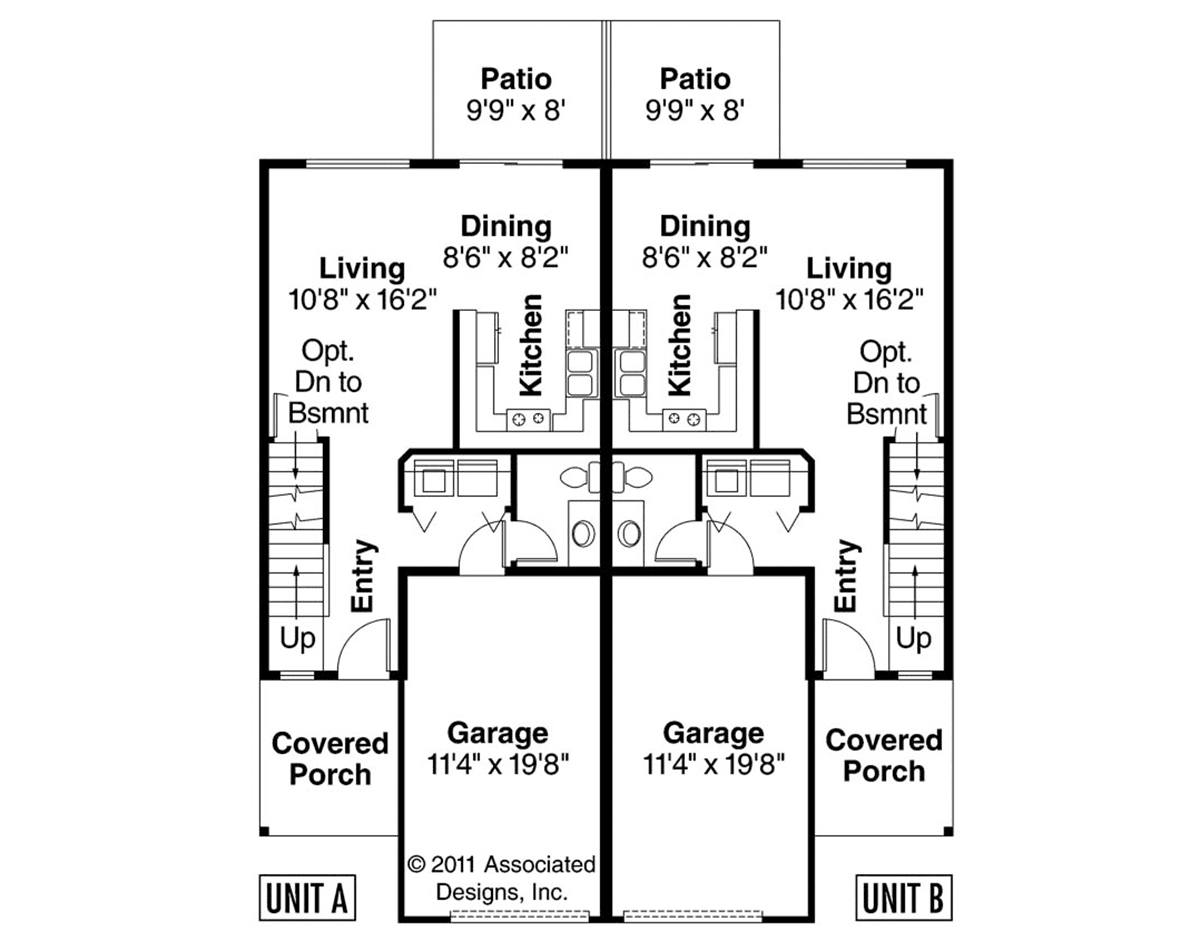

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

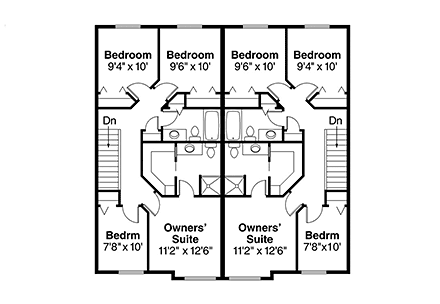

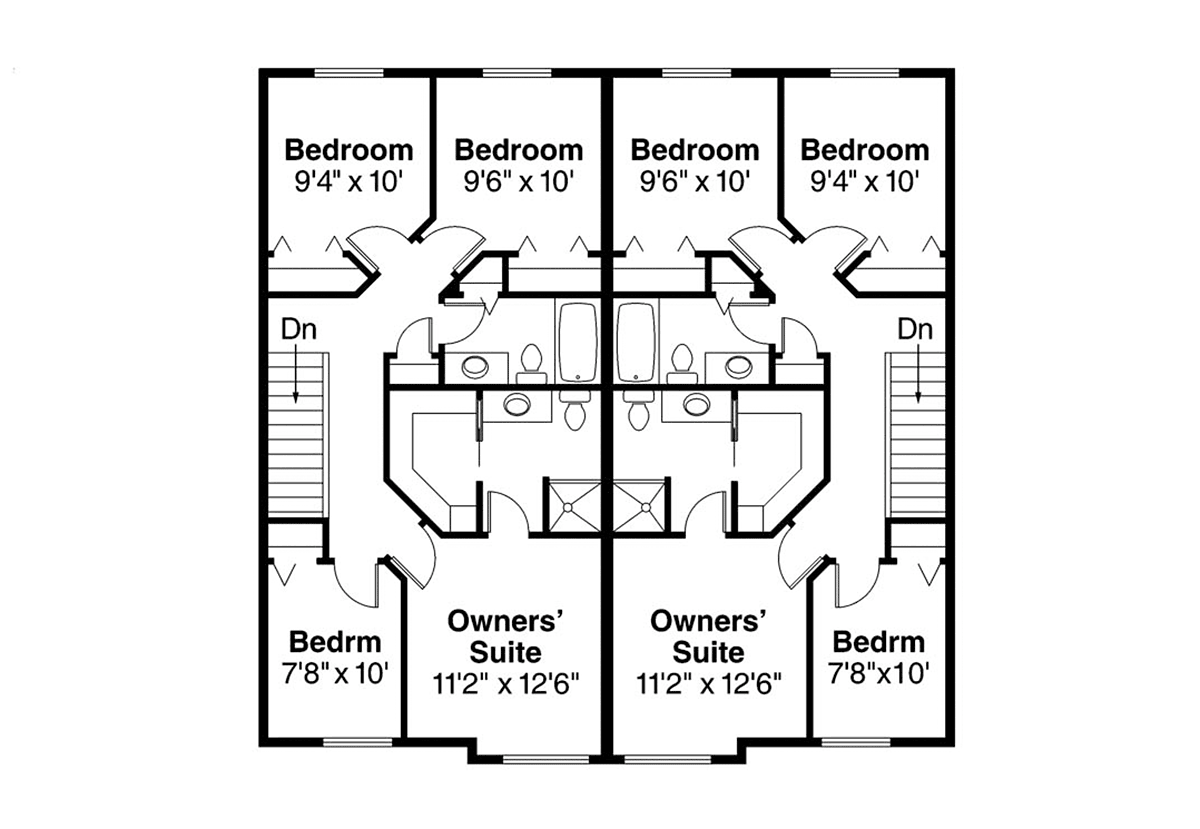

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.
