2 Car Garage Plan 69762

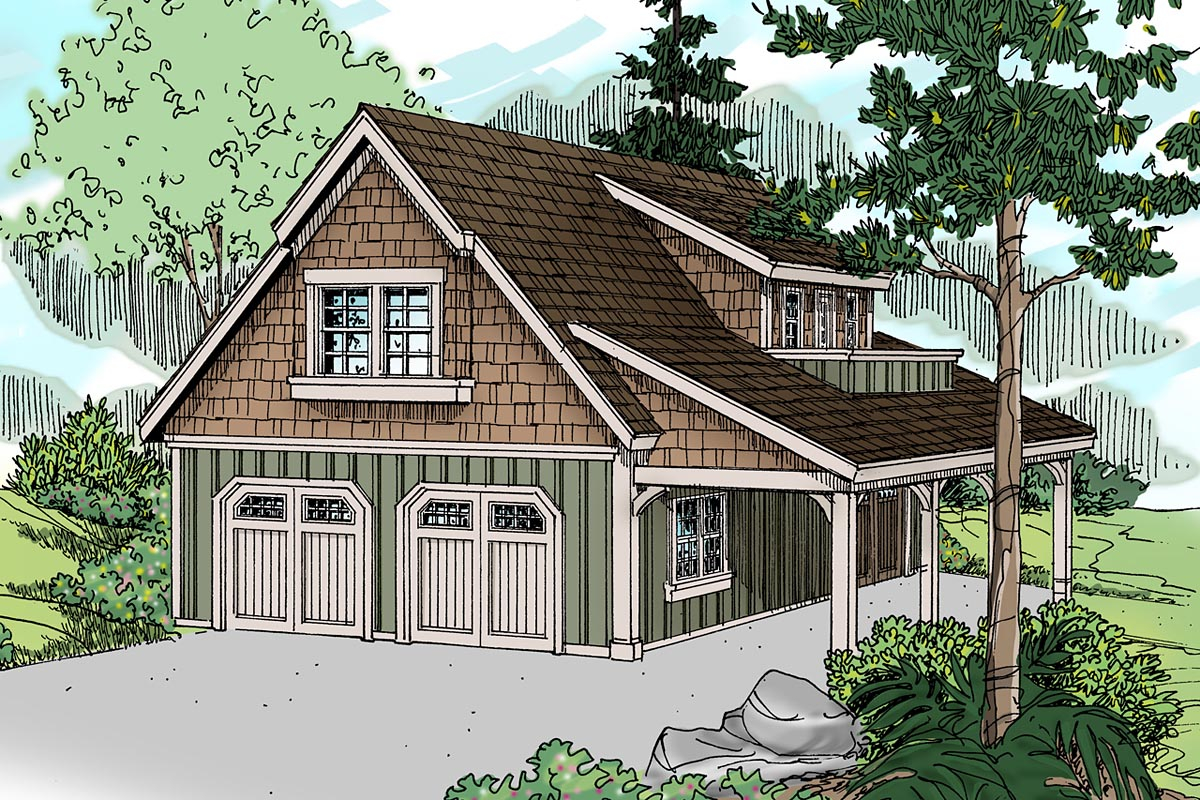

Traditional Style 2 Car Garage with 1 Bed, 1 Bath | Plan 69762
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 804 sq ft |
| Upper Living Area: | 804 sq ft |
| Garage Area: | 988 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 2 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x4 - * $225.00 2x6 |
| House Width: | 38'0 |
| House Depth: | 43'0 |
| Number of Stories: | 2 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 25'3 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Load: | 25 psf |
| Roof Framing: | Stick |
| Porch: | 456 sq ft |
| Main Ceiling Height: | 9'0 |
| Upper Ceiling Height: | 8'0 |
What's Included?

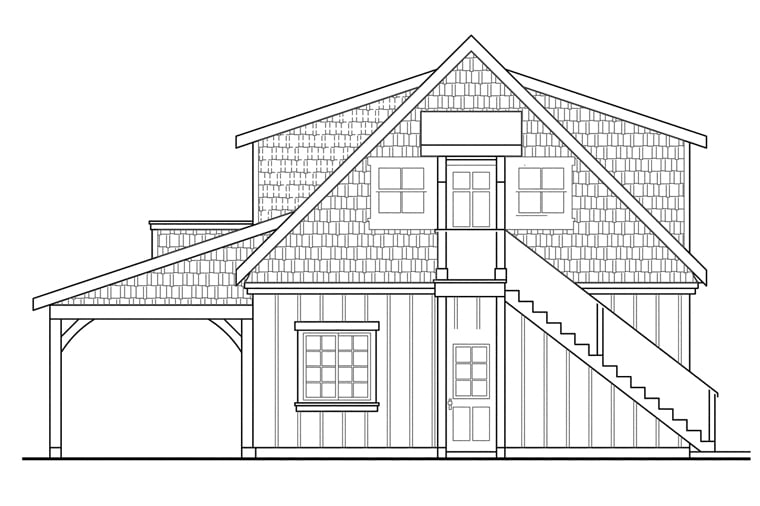

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

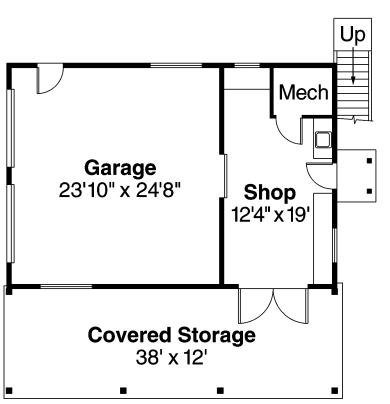

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.
Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.
Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.
Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.
Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting and electrical outlets.
Modifications
1) Please Email Us your changes. (Itemized list of changes with details)
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: Good afternoon, On the garage 1st floor, the interior bearing wall is the garage/shop wall. Thank you,

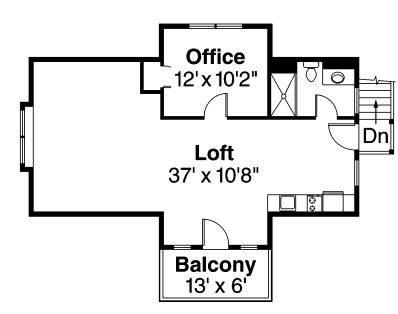

A: This design is currently drawn with 9’-0” tall ceilings on the main floor. The second floor loft has a width of 37’-0”. We can certainly customize this design to your specifications. Currently the second floor has 8’-0” ceilings through the center that slope down to 4’-4” high walls on the side. The slope starts a couple feet away from the walls so the majority of the loft has 8’-0” tall ceilings. At the dormers (balcony and office) the ceiling height maintains 8’-0”. To provide you with a quote for creating a vaulted second floor, please contact our modifications department.
A: Dear Tim,
Thank you for your interest in plan number 69762.
The plans specify a water proof membrane on the balcony. The membrane is sloped to a drain which is connected the other drain for the rest of the roof.
Please let us know if you have any other questions. We look forward to helping you with your design needs.
A: The drawings consist of 6 pages, 24 inches by 36 inches.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
