House Plan 72263
Craftsman-Style Modern Farmhouse with In-Law Suite and Bonus Room | Plan 72263
sq ft
3686beds
4baths
3.5bays
3width
114'depth
80'
Plan Pricing
Additional Notes
In-Law Suite: 695 sq. ft. (heated)Basement Height: 10'
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3686 sq ft |
| Main Living Area: | 2870 sq ft |
| Upper Living Area: | 121 sq ft |
| Bonus Area: | 639 sq ft |
| Unfinished Basement Area: | 3348 sq ft |
| Garage Area: | 825 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 3 |
| Foundation Types: | Walkout Basement |
| Exterior Walls: | 2x4 |
| House Width: | 113'6.5 |
| House Depth: | 79'5 |
| Number of Stories: | 1 |
| Bedrooms: | 4 |
| Full Baths: | 3 |
| Half Baths: | 1 |
| Max Ridge Height: | 26'11 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Framing: | Stick |
| Porch: | 759 sq ft |
| Formal Dining Room: | Yes |
| FirePlace: | Yes |
| Main Ceiling Height: | 10' |
| Upper Ceiling Height: | 9' |
Special Features:
Plan Description
Craftsman-Style Modern Farmhouse with In-Law Suite and Bonus Room
A single-story home with a fantastic open floor layout, perfect for entertaining family and friends. The spacious in-law suite provides a comfortable space for visiting older children or retired parents.What's Included?
2. Rear elevation
3. Right elevation
4. Left elevation
5. Basement plan
6. First floor plan
7. Second floor plan
8. Window and door sizes ON the plan. No schedules.
9. General details including some interior details (no cabinets).
10. Roof plan
11. Cross-section
12. Lighting/electrical
Our house plans will include schematic electrical drawings; however, circuiting or wire sizing will not be included. Your electrical subcontractor will typically provide these drawings.
HVAC and plumbing drawings are not included. Your mechanical and plumbing subcontractors will determine the best layout for your site. Local HVAC codes, climatic requirements and commonly used systems vary throughout the country. The direction of how water flow will enter the home vary from case to case. For this reason, it is impossible to provide universal plans.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
A: Thank you for interest in FamilyHomePlans.com Plan Number: 72263. The ceiling height for the Basement will be 10' As-is is a walkout basement.
A: You might like the following plans: 72261, 72221, and 72245 (similar plan but in laws suite sq.ft is not included in the total living sq.ft). Please note that there will be variation on the front elevations for these plans.
A: We have similar variations of this plan, without the bonus/in-law suite: 72261, 72170, 72221 For any modifications, please click on the modifications tab for contact information, and you will get a no-obligation quote for the change(s).
A: Hello Bonnie, Per the client query, asper the design there are only 3 columns in the design which are structural columns and it cannot be removed. The horizontal beam needs to be engineered. Please be noted we do not provide structural and framing plans , it need to done by there local engineers / contractors. Thankyou.
View Attached FileA: Hello, I hope this email finds you well All engineering must be completed by a local engineer and/or truss manufacturer/supplier. Truss and engineered lumber manufacturers and suppliers typically supply engineered structural floor and roof framing plans at no charge if the framing materials are purchased from their respective companies. Depending on your city, county, and state building requirements, a local licensed architect or engineer may need to review house plans for structural details and code standards before construction begins. This is particularly true in coastal areas and those facing seismic events, extreme winds, and heavy snow. If you are building in any of these areas, a licensed structural engineer will likely be needed to provide the necessary calculations and additional drawings. We authorize the use of our plans conditioned on your obligation and agreement to strictly comply with all local building codes, ordinances, regulations, and requirements, including permits and inspections at the time of and during construction. We recommend checking with your local building department for the most current requirements. The purchaser(s) and/or builder are responsible for additional expenses incurred through meeting municipality requirements or other requirements for construction.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Call 800-482-0464
Photographs may show modified designs.

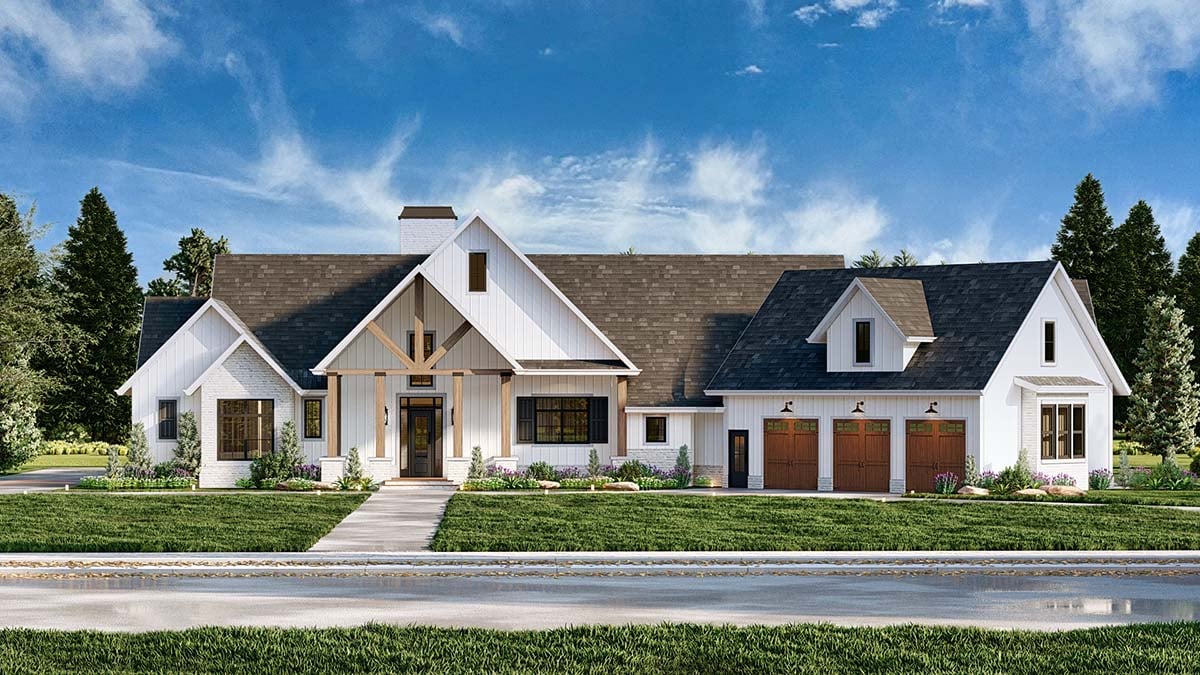

Elevation

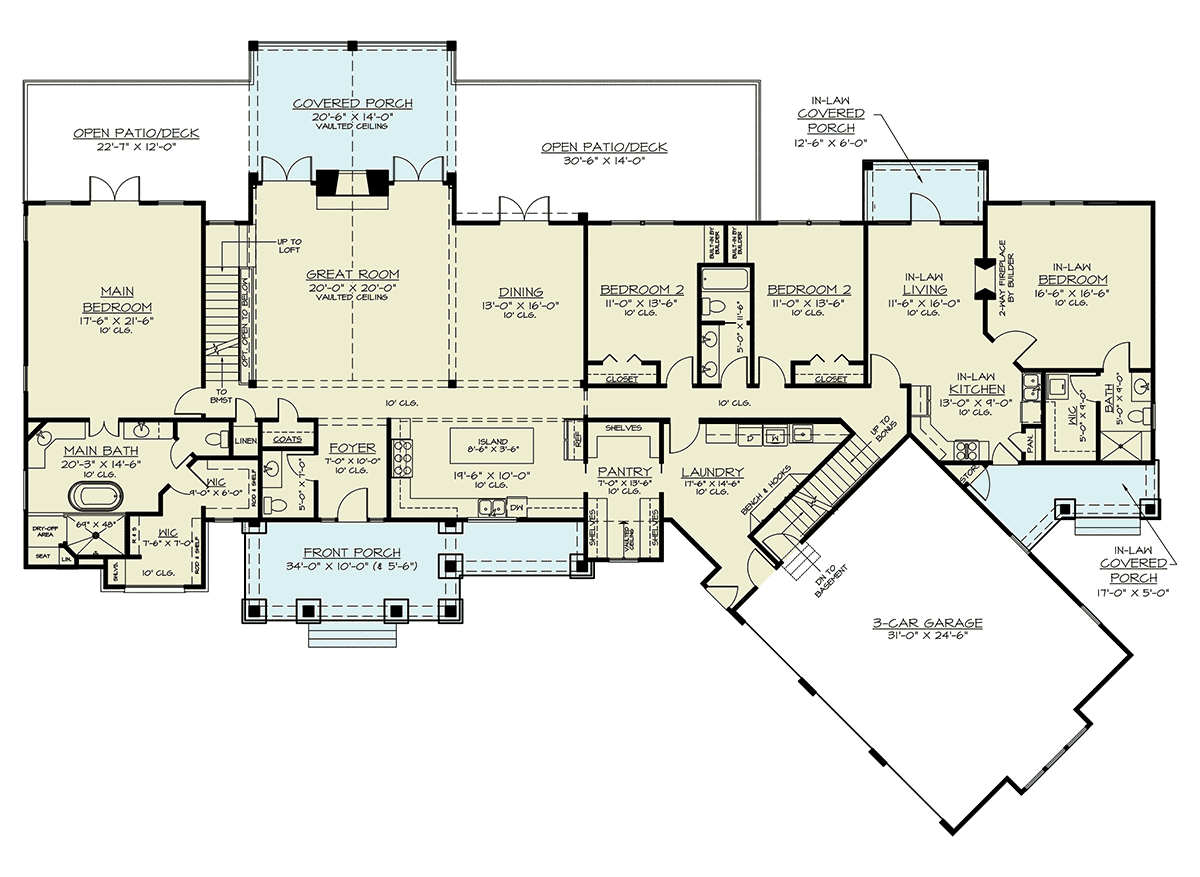

Level One

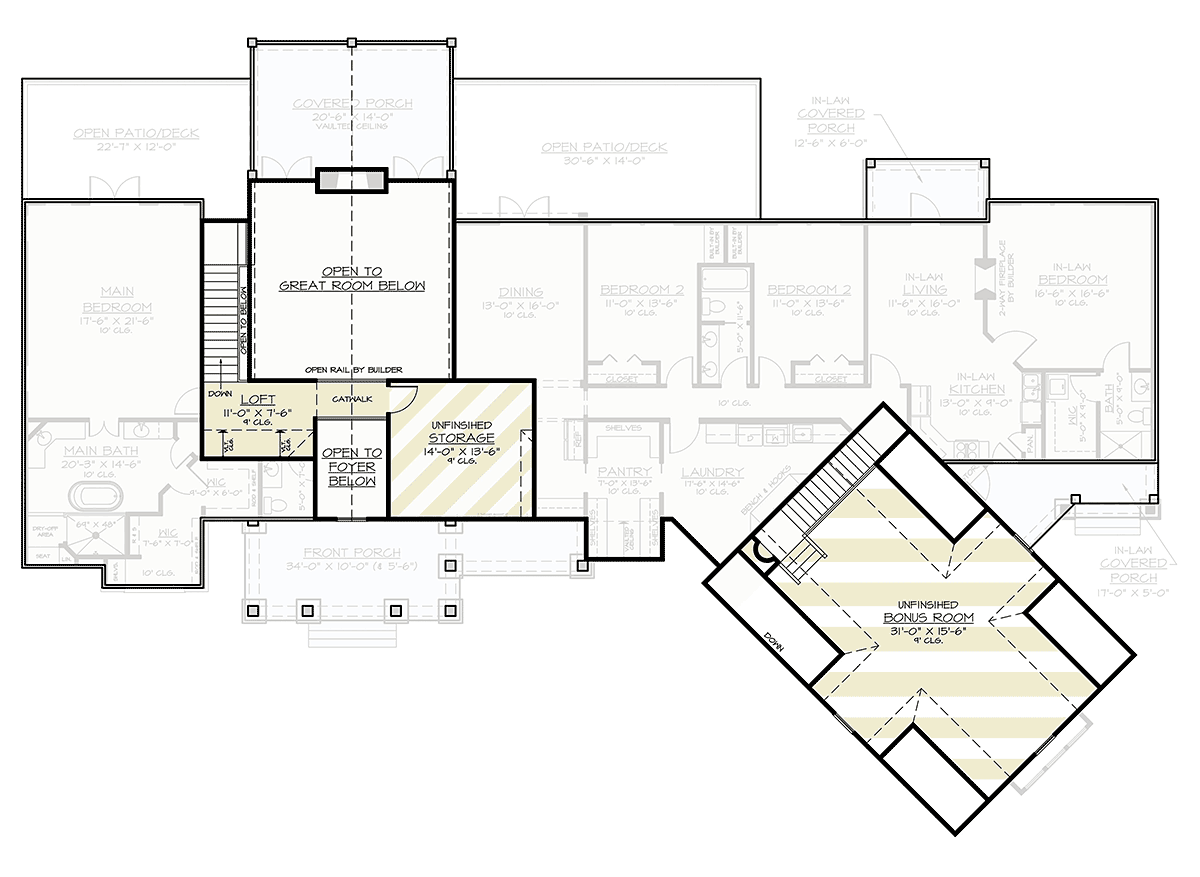

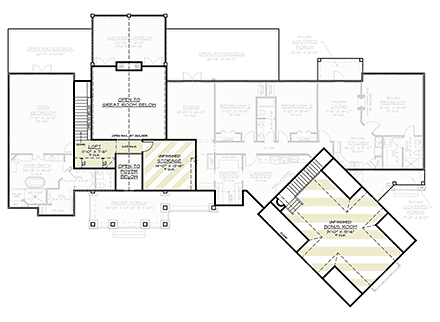

Level Two
Quick Specs
3686 Total Living Area2870 Main Level
121 Upper Level
639 Bonus Area
4 Bedrooms
3 Full Baths, 1 Half Baths
3 Car Garage
113'6.5 W x 79'5 D
Quick Specs
3686 Total Living Area639 Bonus Area
4 Bedrooms
3 Full Baths, 1 Half Baths
3 Car Garage
113'6.5 W x 79'5 D
