Multi-Family Plan 72780

• PDF File: $1,125.00
• PDF File Unlimited Build: $1,850.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $1,950.00
  Single Build License issued on CAD File orders.
• Materials List: $150.00
• Right Reading Reverse: $175.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Crawlspace : No Additional Fee
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $295.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2676 sq ft
Main Living Area:	864 sq ft
Upper Living Area:	474 sq ft
Garage Type:	None
Foundation Types:	Crawlspace Slab
Exterior Walls:	2x4 2x6 - * $295.00
House Width:	36'3"
House Depth:	48'
Number of Stories:	2
Bedrooms:	6
Full Baths:	4
Primary Roof Pitch:	0
Roof Framing:	Unknown
Formal Dining Room:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'

* May require additional drawing time.

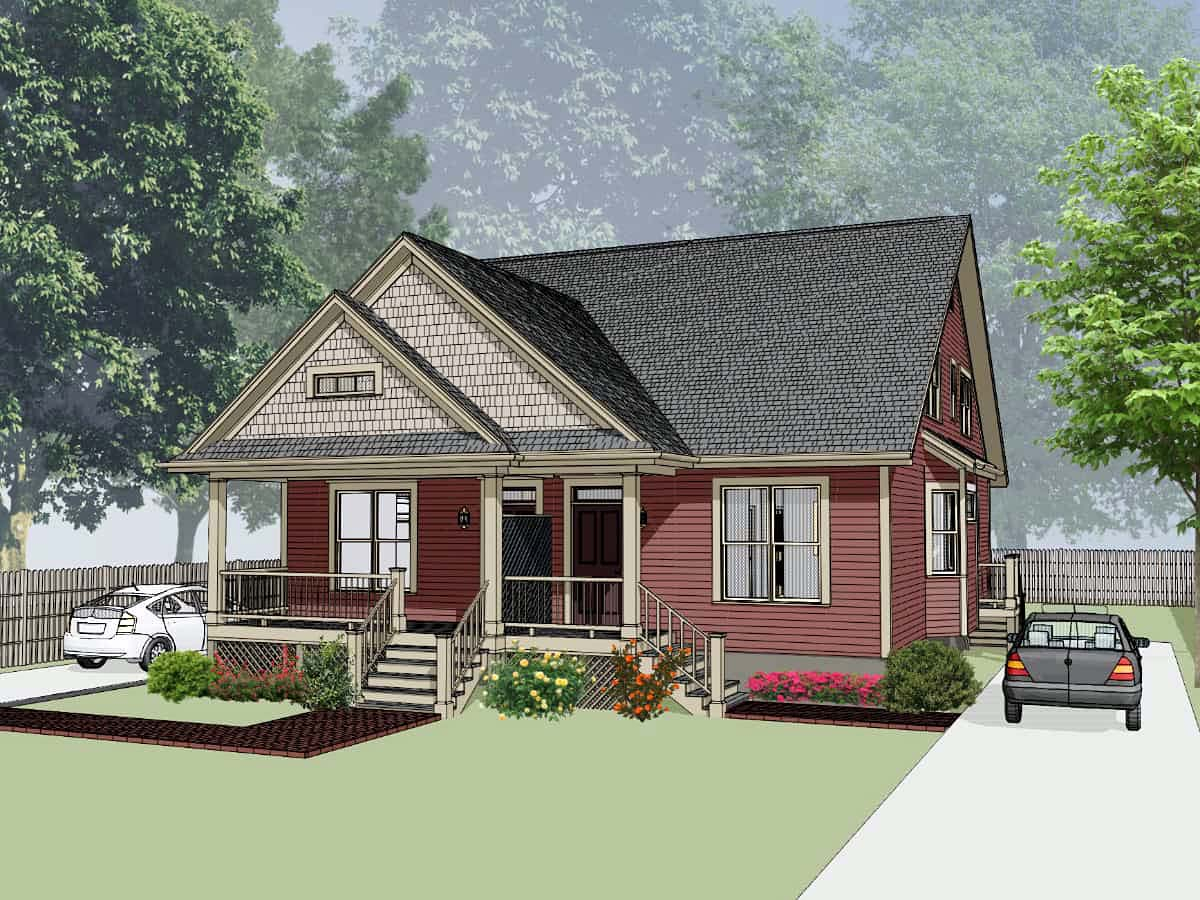

Cover sheet - General notes, structural notes, joist and rafter tables, abbreviations, and energy guidelines. Most plans have a rendering of the elevation.

Foundation Plan - A crawl type foundation is standard, but an alternate slab foundation can be included. Some plans have a basement foundation available.

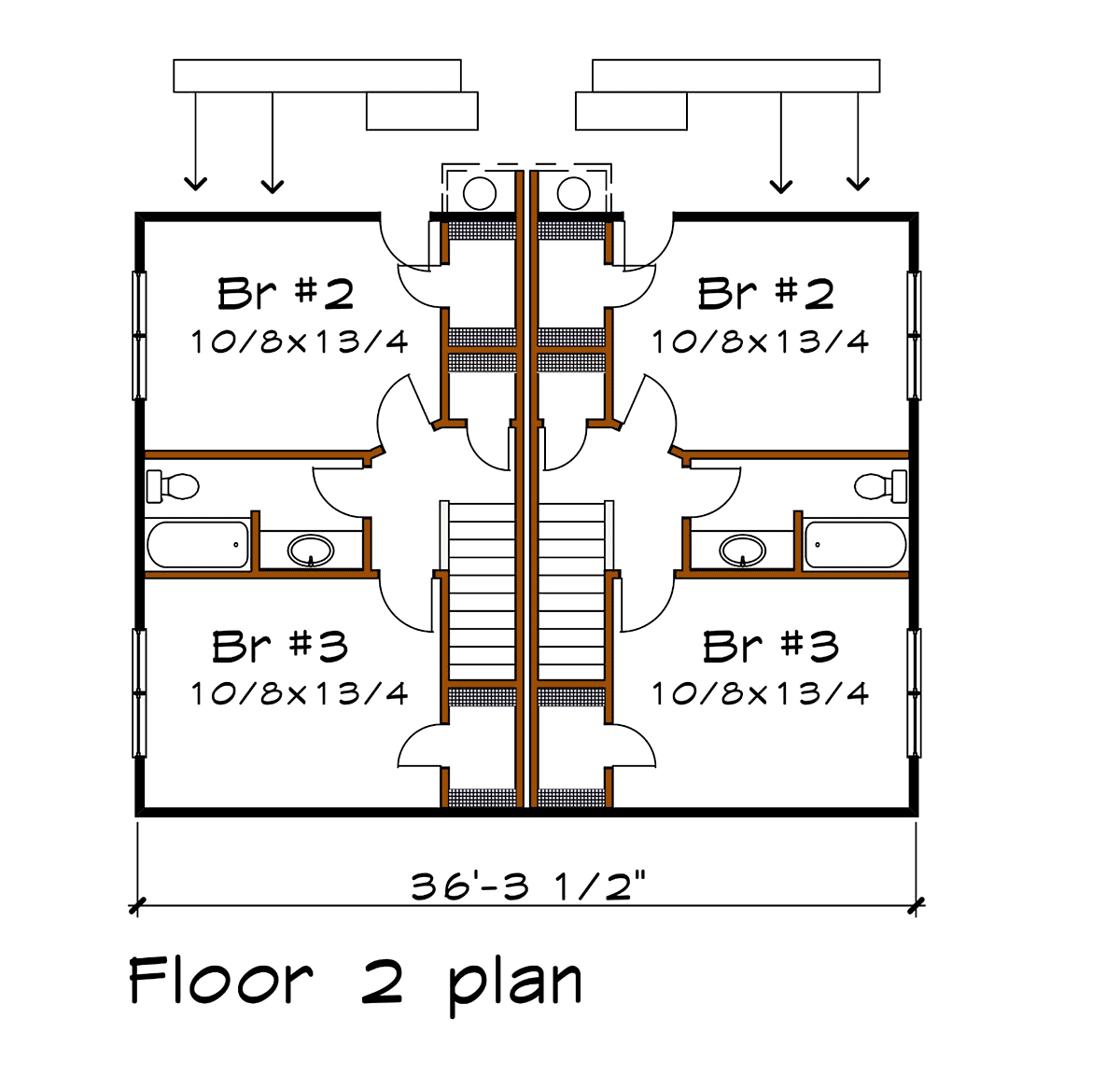

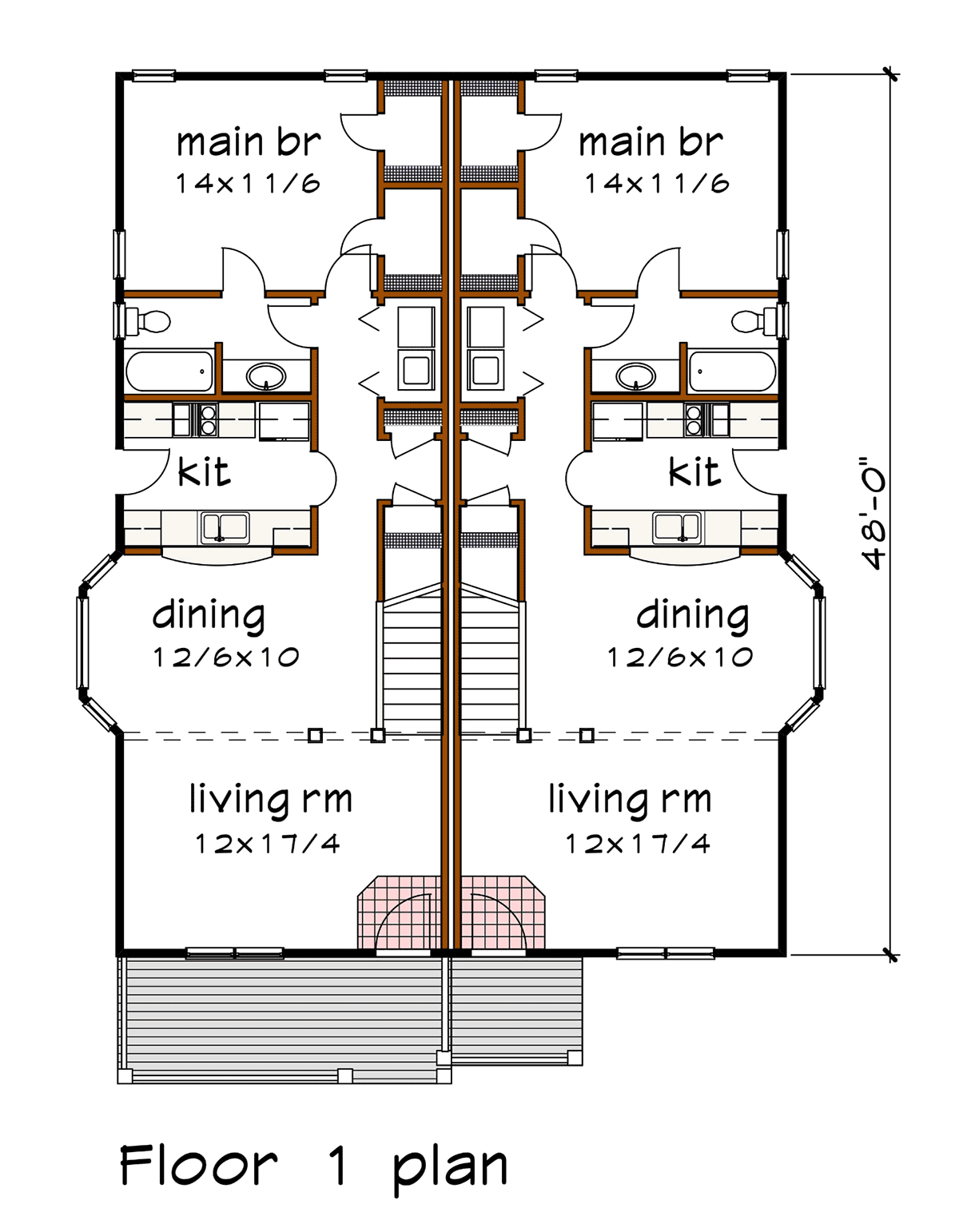

Floor Plan(s) - Floor and roof plan(s) and showing all dimensions, joist/rafter directions, cabinets, window and door sizes, etc.

Exterior Elevations - All elevations drawn at 1/4"=1'-0".

Electrical Plans - All electrical located on separate drawings.

Schedules - Door and window schedules.

Building section(s) - Section through the building showing stairs, vertical dimensioning, and structural information.

Details - Various details describing foundation, wall, column details, roof assemblies, porch and deck details... etc.

Cabinet Elevations - Kitchen cabinet elevations @ 3/8"=1'-0"

Roof Plan - Roof plan at 1/8"=1'-0"

Alternate Slab Foundation - If requested an alternate slab plan can be included
