Multi-Family Plan 72786

• PDF File: $1,075.00
• PDF File Unlimited Build: $1,800.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $1,900.00
  Single Build License issued on CAD File orders.
• Materials List: $150.00
• Right Reading Reverse: $175.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Crawlspace : No Additional Fee
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $295.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2234 sq ft
Main Living Area:	1526 sq ft
Upper Living Area:	708 sq ft
Garage Type:	None
Foundation Types:	Crawlspace Slab
Exterior Walls:	2x4 2x6 - * $295.00
House Width:	32'3.5
House Depth:	54'
Number of Stories:	2
Bedrooms:	4
Full Baths:	4
Max Ridge Height:	24'4 from Front Door Floor Level
Primary Roof Pitch:	7:12
Roof Framing:	Unknown
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Traditional Neighborhood Duplex Plan w/lots of closet space

Traditional Neighborhood Duplex Plan # 72786 presents with a long covered porch and a very simple design promising efficient construction. Overall, the building is 2234 square feet of living space and 33' wide by 54' deep. The building is divided into two units with 2 bedrooms and 2 baths each. Open the front door into the living room and continue through the dining space to the kitchen. One bedroom is on the main floor while the master suite is on the second level. Bonus: lots of closet space!

Cover sheet - General notes, structural notes, joist and rafter tables, abbreviations, and energy guidelines. Most plans have a rendering of the elevation.

Foundation Plan - A crawl type foundation is standard, but an alternate slab foundation can be included. Some plans have a basement foundation available.

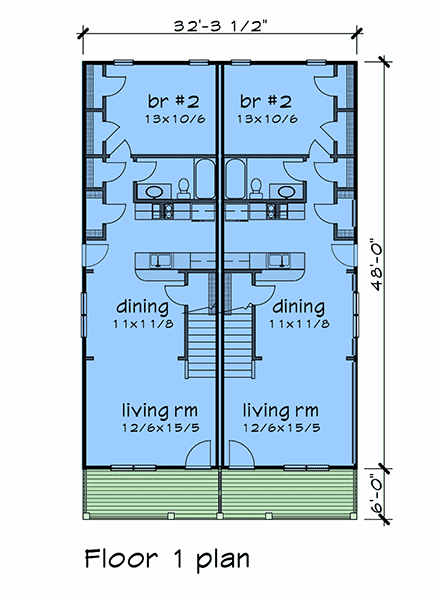

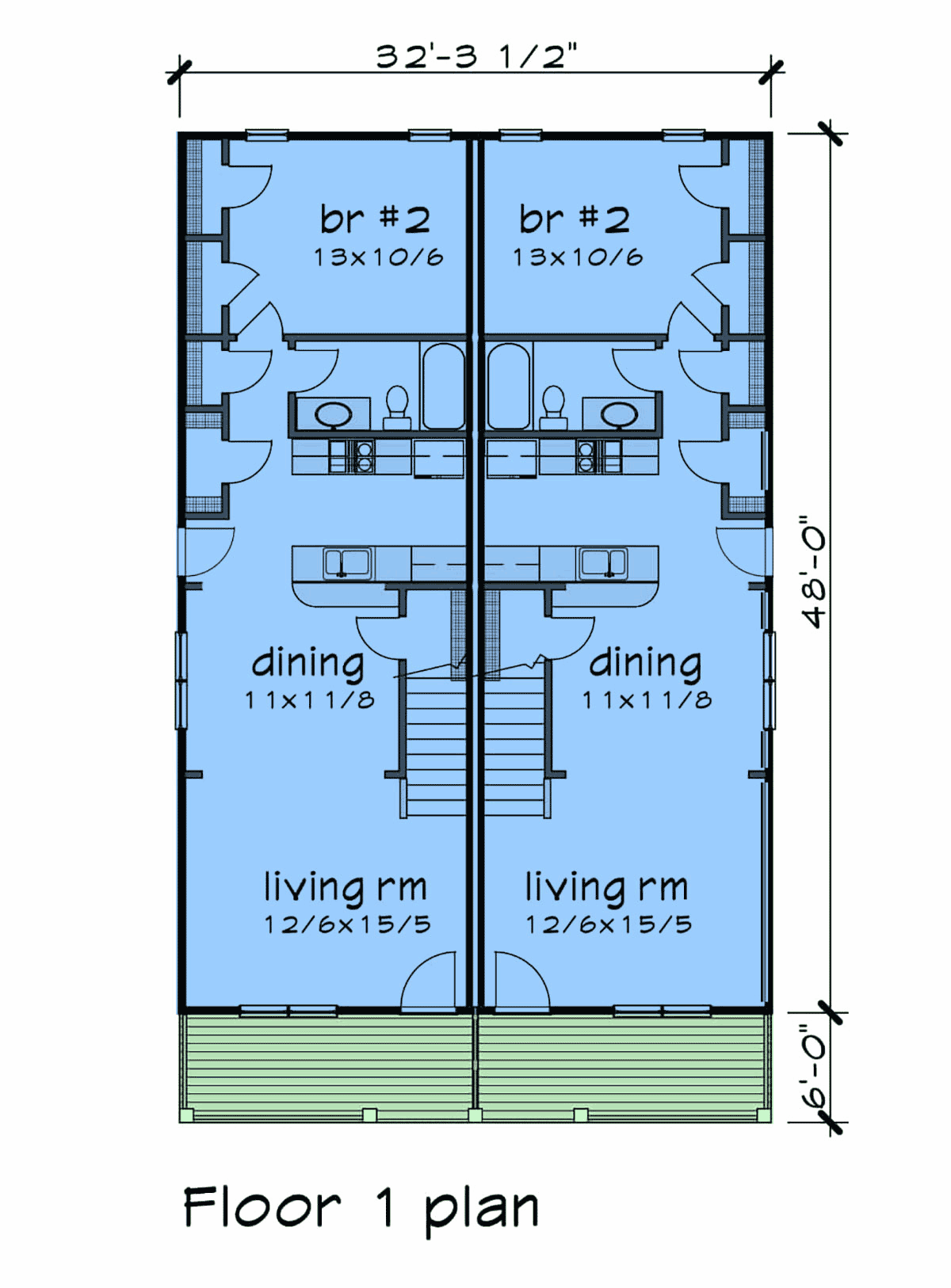

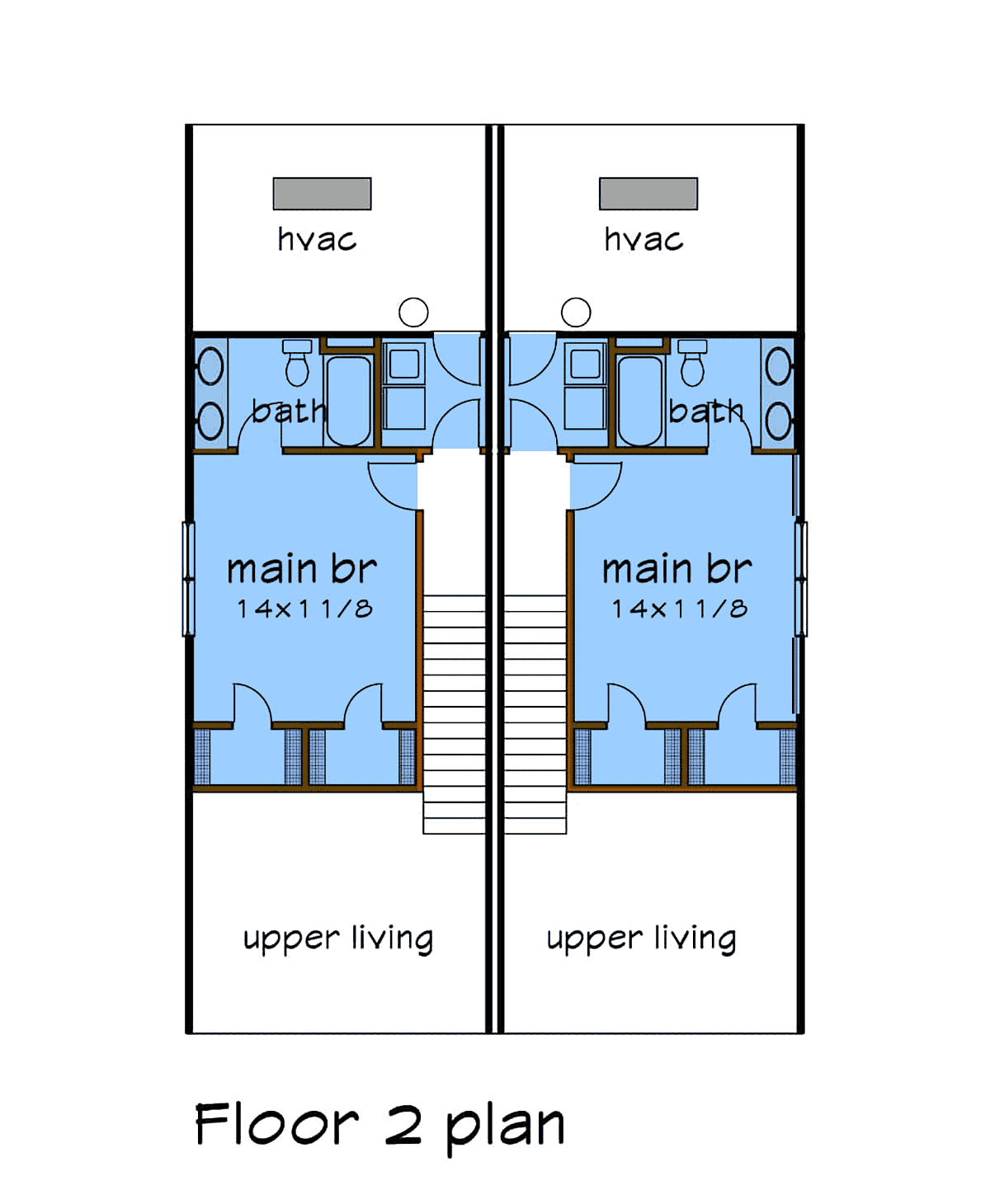

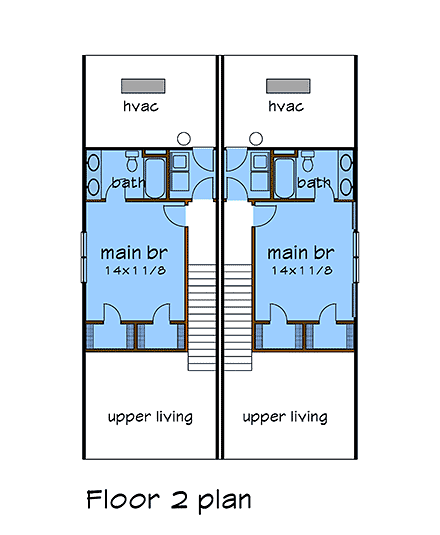

Floor Plan(s) - Floor and roof plan(s) and showing all dimensions, joist/rafter directions, cabinets, window and door sizes, etc.

Exterior Elevations - All elevations drawn at 1/4"=1'-0".

Electrical Plans - All electrical located on separate drawings.

Schedules - Door and window schedules.

Building section(s) - Section through the building showing stairs, vertical dimensioning, and structural information.

Details - Various details describing foundation, wall, column details, roof assemblies, porch and deck details... etc.

Cabinet Elevations - Kitchen cabinet elevations @ 3/8"=1'-0"

Roof Plan - Roof plan at 1/8"=1'-0"

Alternate Slab Foundation - If requested an alternate slab plan can be included
