Plan Pricing from $1,125.00

Plan Pricing

PDF File: $1,125.00
PDF File Unlimited Build: $1,850.00
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $1,950.00
Single Build License issued on CAD File orders.
Materials List: $150.00
Right Reading Reverse: $175.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Available Foundation Types:

Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.
Crawlspace : No Additional Fee
Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee
2x6: $295.00
(Please call for drawing time.)

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	2546 sq ft
Main Living Area:	1341 sq ft
Upper Living Area:	1205 sq ft
Garage Type:	None
Foundation Types:	Basement Crawlspace Slab
Exterior Walls:	2x4 2x6 - * $295.00
House Width:	24'
House Depth:	76'9
Number of Stories:	2
Bedrooms:	5
Full Baths:	4
Half Baths:	1
Max Ridge Height:	28'6 from Front Door Floor Level
Primary Roof Pitch:	9:12
Roof Framing:	Unknown
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

What's Included?

Cover sheet - General notes, structural notes, joist and rafter tables, abbreviations, and energy guidelines. Most plans have a rendering of the elevation.

Foundation Plan - A crawl type foundation is standard, but an alternate slab foundation can be included. Some plans have a basement foundation available.

Floor Plan(s) - Floor and roof plan(s) and showing all dimensions, joist/rafter directions, cabinets, window and door sizes, etc.

Exterior Elevations - All elevations drawn at 1/4"=1'-0".

Electrical Plans - All electrical located on separate drawings.

Schedules - Door and window schedules.

Building section(s) - Section through the building showing stairs, vertical dimensioning, and structural information.

Details - Various details describing foundation, wall, column details, roof assemblies, porch and deck details... etc.

Cabinet Elevations - Kitchen cabinet elevations @ 3/8"=1'-0"

Roof Plan - Roof plan at 1/8"=1'-0"

Alternate Slab Foundation - If requested an alternate slab plan can be included

Modifications

Want to make changes to a house plan at Family Home Plans?

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Q & A

Previous Q & A

Q: What is the square footage of each unit? I'm very interested in the plan but knowing the square footage per unit will determine whether it will work on my lot.

A: The front unit is 1151 sqft and the rear is 1395 sqft

Q: Can you give me a breakdown of square footages for each unit and each floor for each unit? Thanks!

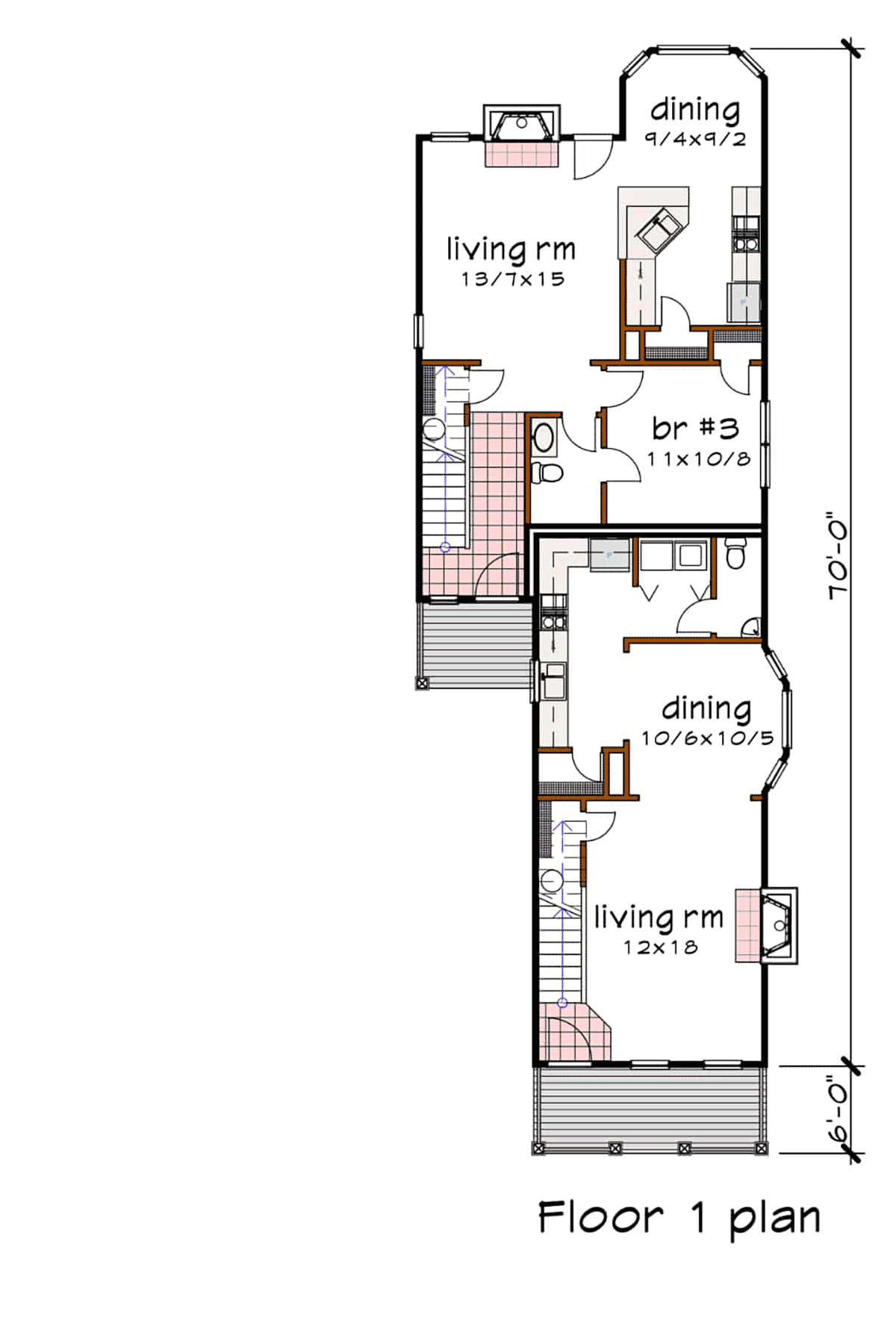

A: Floor 1 plan
rear unit 742 sq.ft.
front unit 599 sq.ft. = 1341 sq.ft

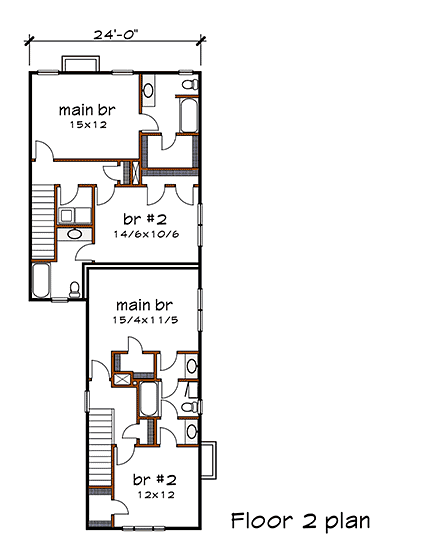

Floor 2 plan
rear unit 653 sq.ft. -
front unit 552 sq.ft. = 1205 sq.ft.

Total per unit
rear unit 1395 sq.ft.
front unit 1151 sq.ft. = 2546 sq.ft building total

Common Q & A

Q: Can I make modifications to this plan?

A: Yes you can! Please click the "Modifications" tab above to get more information.

Q: What is the estimated price to build this plan?

A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
