Plan Pricing from $2,133.00

Plan Pricing

PDF File: $2,133.00
5 Sets: $1,535.76
8 Sets: $1,677.96
Reproducible Set: $2,133.00
CAD File: $3,355.92
Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $295.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $50.00

Additional Notes

Total Unit A: 1422 sq. ft.
Total Unit B: 1422 sq. ft.

Available Foundation Types:

Basement : No Additional Fee
Total Living Area may increase with Basement Foundation option.
Crawlspace : $395.00
May require additional drawing time, please call to confirm before ordering.
Slab : $395.00
May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	2844 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement Crawlspace - * $395.00 Slab - * $395.00
Exterior Walls:	2x6
House Width:	100'
House Depth:	51'
Number of Stories:	1
Bedrooms:	6
Full Baths:	4
Max Ridge Height:	27' from Front Door Floor Level
Primary Roof Pitch:	9:12
Roof Load:	47 psf
Roof Framing:	Truss
Porch:	66 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	8'

* May require additional drawing time.

What's Included?

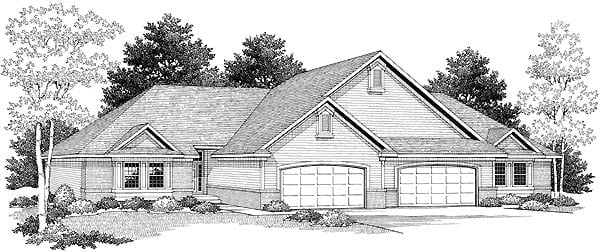

Cover sheet with Front Rendering.

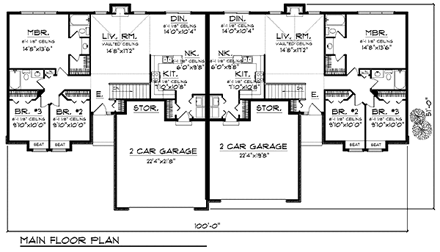

Foundation and Floor Plans at 1/4" = 1'0" scale.

Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.

Building Sections and Details as required to construct the individual design.

Interior Elevations of Cabinets at 1/4" = 1'0" scale.

Roof Plans

Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.

General Specifications design notes.

Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
