Multi-Family Plan 73482
Traditional Style Multi-Family Plan 73482 with 5922 Sq Ft, 8 Bed, 8 Bath, 4 Car Garage
sq ft
5922beds
8baths
6bays
4width
92'depth
61'
Click Any Image For Gallery
Plan Pricing from $4,559.94
Plan Pricing
Additional Notes
Unit A Lower Floor: 1221 sq. ft.Unit A Upper Floor: 1740 sq. ft.
Total Unit A: 2961 sq. ft.
Unit B Lower Floor: 1221 sq. ft.
Unit B Upper Floor: 1740 sq. ft.
Total Unit B: 2961 sq. ft.
Ceiling height:
Dining, Living, Foyer-11ft
BR#2-Cathedral
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 5922 sq ft |
| Lower Living Area: | 1221 sq ft |
| Main Living Area: | 1740 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 4 |
| Foundation Types: | Basement Crawlspace - * $495.00 Slab - * $495.00 |
| Exterior Walls: | 2x6 |
| House Width: | 92' |
| House Depth: | 61' |
| Number of Stories: | 1 |
| Bedrooms: | 8 |
| Full Baths: | 6 |
| 3/4 Baths: | 2 |
| Max Ridge Height: | 28' from Front Door Floor Level |
| Primary Roof Pitch: | 9:12 |
| Roof Load: | 47 psf |
| Roof Framing: | Truss |
| Porch: | 32 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9' |
Plan Description

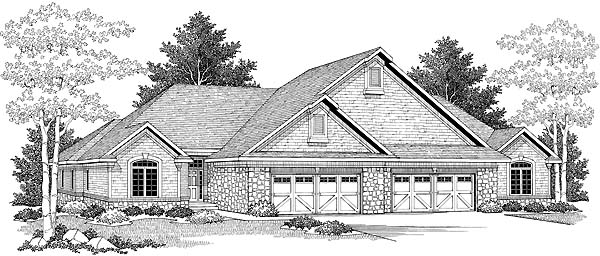

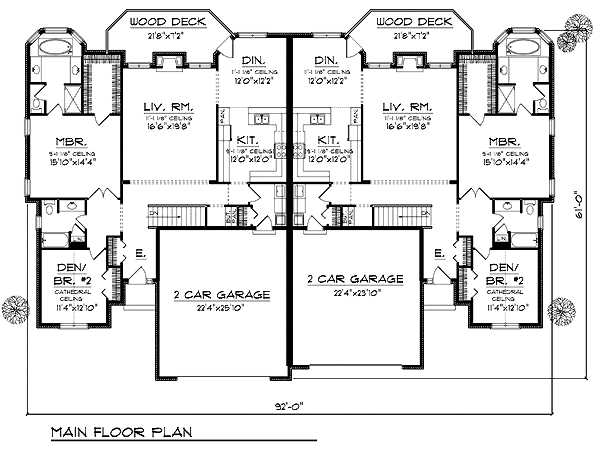

Shingle siding, stone, old world garage doors and brick were all carefully thought out to give these high-end condos a unique façade. Two identical units feature a large living room with a fireplace flanked by windows and an adjacent kitchen and dining area with breakfast bar. The bedroom wing is located to the outside of each unit and pampers with a large walk-in closet and Jacuzzi tub with bay window in the master suite. A den that can also double as a second bedroom is found to the front of each unit just off the entry. The lower level includes a large recreation room with fireplace, and two additional bedrooms each with access to their own bathroom. Finally, a two-stall garage completes each unit.
What's Included?
Cover sheet with Front Rendering.
Foundation and Floor Plans at 1/4" = 1'0" scale.

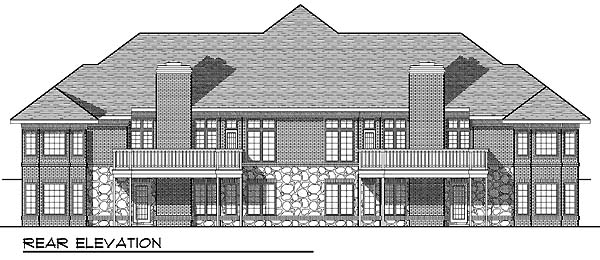

Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.
Building Sections and Details as required to construct the individual design.
Interior Elevations of Cabinets at 1/4" = 1'0" scale.
Roof Plans
Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.
General Specifications design notes.
Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Foundation and Floor Plans at 1/4" = 1'0" scale.
Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.
Building Sections and Details as required to construct the individual design.
Interior Elevations of Cabinets at 1/4" = 1'0" scale.
Roof Plans
Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.
General Specifications design notes.
Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
