House Plan 74819

• PDF File: $1,195.00
• 5 Sets: $1,245.00
• 5 Sets plus PDF File: $1,450.00
• 8 Sets: $1,295.00
• CAD File: $1,695.00
  Single Build License issued on CAD File orders.
• Right Reading Reverse: $195.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

Available Foundation Types:

• Crawlspace : No Additional Fee
• Slab : $368.75
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $368.75
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1975 sq ft
Main Living Area:	1975 sq ft
Bonus Area:	1769 sq ft
Garage Area:	720 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Crawlspace Slab - * $368.75
Exterior Walls:	2x4 2x6 - * $368.75
House Width:	71'2
House Depth:	64'6
Number of Stories:	2
Bedrooms:	3
Full Baths:	3
Half Baths:	1
Max Ridge Height:	25'0 from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Framing:	Stick
Porch:	177 sq ft
Deck:	466 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9
Upper Ceiling Height:	8

* May require additional drawing time.

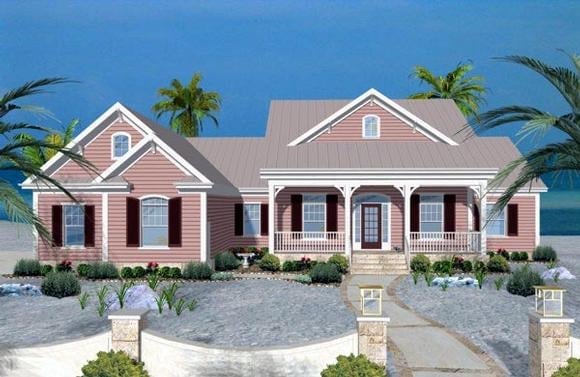

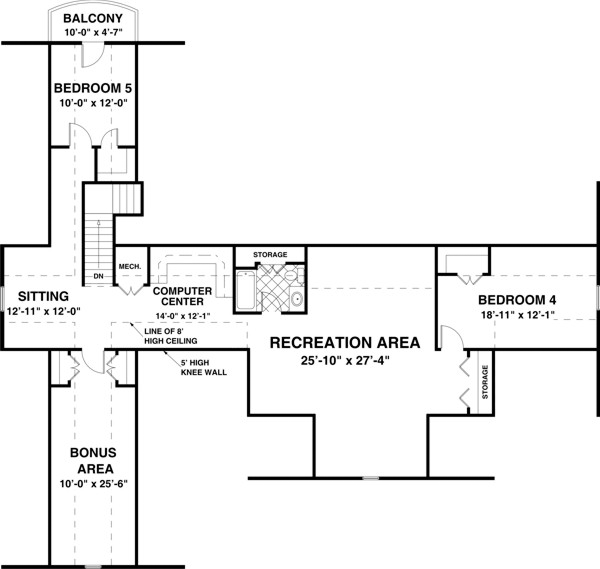

This sophisticated seaside cottage with its coastal facade and spacious interior design, is both flexible and dramatic. There is ample space for cars and other “fun” vehicles in the 3-car garage. A covered front porch, breezy screened porch, luxurious master suite and spacious secondary bedrooms are just a few of its irresistible features. The private master suite includes a tray ceiling, a sitting area, his and hers walk-in closets and exquisite bath. The 14'-3" x 22'-6" country kitchen is open to the family room. Sliding doors lead to the screened porch which is brightly lit by twin skylights. The deck is accessible from the kitchen, the screened porch and master bedroom. There is also an optional convenient entrance to one of the bathrooms off the deck. Bedrooms two and three each feature walk-in closets and individual baths. An optional bonus level opens up a whole new world of living space. Nestled upstairs you’ll find two additional bedrooms, a bonus room, a sitting area, computer center and a huge recreation area as well as another full bath.

Foundation Plans: include drawings for a standard, daylight or partial basement, crawlspace, pier, or slab foundation. All necessary notations and dimensions are included. (Foundation options will vary for each plan. If the home you want does not have the type of foundation you desire, contact us to discuss having that plan created.)

Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house. In some cases, the door and window dimensions and/or stair details may be on a separate page.

Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.

Wall Sections and/or Cross Sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections specify the home's construction, insulation, flooring and roofing details.

Roof Details: show slope, pitch and location of dormers, gables and other roof elements, including clerestory windows and skylights. These details may be shown on the elevation sheet or on a s eparate diagram. Note: If trusses are used, we suggest using a local truss manufacturer to design your trusses to comply with your local codes and regulations.

Standard Construction Details: various details related to beam support, floor construction, connections, and roofing options.

The following may also be included:

Interior Elevations: show the specific details of cabinets (kitchen, bathroom, and utility room), fireplaces, built-in units, and other special interior features, depending on the nature and complexity of the item. Note: To save money and to accommodate your own style and taste, we suggest contacting local cabinet and fireplace distributors for sizes and styles.

Schematic Electrical Layouts: show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.
