2 Car Garage Apartment Plan 74838

• PDF File: $945.00
• 5 Sets: $995.00
• 5 Sets plus PDF File: $1,150.00
• 8 Sets: $1,045.00
• CAD File: $1,350.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $195.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $45.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $437.50
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	840 sq ft

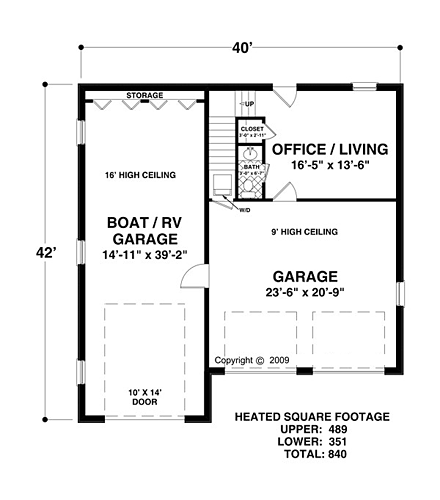

Main Living Area:	351 sq ft

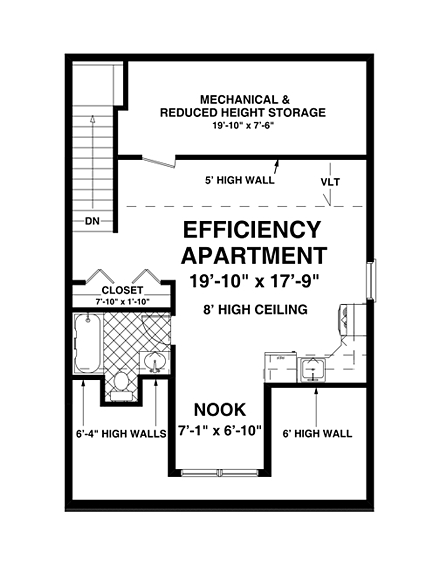

Upper Living Area:	489 sq ft
Garage Type:	N/A or Unknown
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x4 2x6 - * $437.50
House Width:	40'0"
House Depth:	42'0"
Number of Stories:	1
Primary Roof Pitch:	0
Roof Framing:	Unknown
Main Ceiling Height:	8'0"
Upper Ceiling Height:	9'0"
Vaulted Ceiling:	Yes

* May require additional drawing time.

Foundation Plans: include drawings for a standard, daylight or partial basement, crawlspace, pier, or slab foundation. All necessary notations and dimensions are included. (Foundation options will vary for each plan. If the home you want does not have the type of foundation you desire, contact us to discuss having that plan created.)

Detailed Floor Plans: show the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc., of each level of the house. In some cases, the door and window dimensions and/or stair details may be on a separate page.

Exterior Elevations: show the front, rear and sides of the house, including exterior materials, details and measurements.

Wall Sections and/or Cross Sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections specify the home's construction, insulation, flooring and roofing details.

Roof Details: show slope, pitch and location of dormers, gables and other roof elements, including clerestory windows and skylights. These details may be shown on the elevation sheet or on a s eparate diagram. Note: If trusses are used, we suggest using a local truss manufacturer to design your trusses to comply with your local codes and regulations.

Standard Construction Details: various details related to beam support, floor construction, connections, and roofing options.

The following may also be included:

Interior Elevations: show the specific details of cabinets (kitchen, bathroom, and utility room), fireplaces, built-in units, and other special interior features, depending on the nature and complexity of the item. Note: To save money and to accommodate your own style and taste, we suggest contacting local cabinet and fireplace distributors for sizes and styles.

Schematic Electrical Layouts: show the suggested locations for switches, fixtures and outlets. These details may be shown on the floor plan or on a separate diagram.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A
