3 Car Garage Plan 75421

• PDF File: $428.00
• 5 Sets: $311.00
• 8 Sets: $372.00
• Reproducible Set: $428.00
• CAD File: $709.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $225.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $65.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Garage Area:	1036 sq ft
Garage Type:	Detached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	36'0"
House Depth:	30'0"
Number of Stories:	1
Max Ridge Height:	20'4" from Front Door Floor Level
Primary Roof Pitch:	8:12
Roof Load:	47 psf
Roof Framing:	Truss
Main Ceiling Height:	9'0"

Spacious Three Car Garage Plan | Garage Building Plans

This spacious three stall garage has a beautiful stone design to it. It has two garage door accesses which allows for just one garage door to be open.

Cover sheet with Front Rendering.

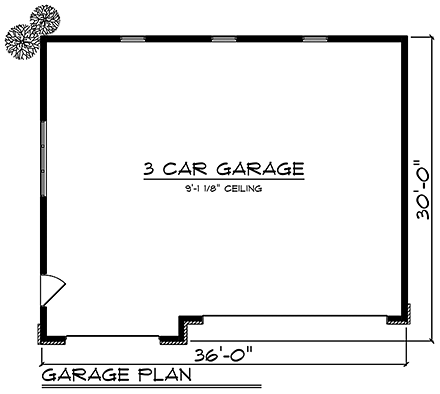

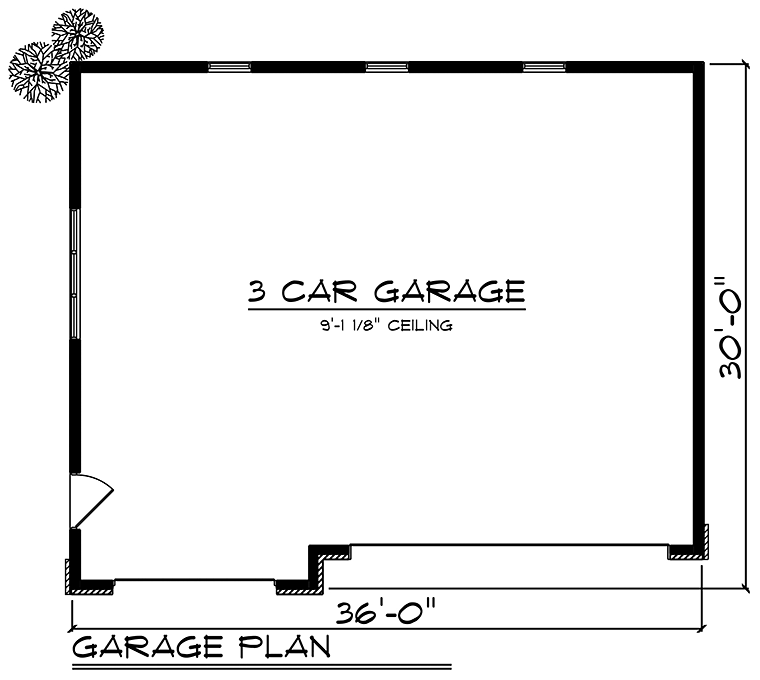

Foundation and Floor Plans at 1/4" = 1'0" scale.

Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.

Building Sections and Details as required to construct the individual design.

Interior Elevations of Cabinets at 1/4" = 1'0" scale.

Roof Plans

Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.

General Specifications design notes.

Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
