2 Car Garage Plan 75422

• PDF File: $428.00
• 5 Sets: $311.00
• 8 Sets: $372.00
• Reproducible Set: $428.00
• CAD File: $709.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $225.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $65.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	50'0"
House Depth:	42'0"
Number of Stories:	2
Full Baths:	1
Max Ridge Height:	30'8" from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Load:	47 psf
Roof Framing:	Truss
Main Ceiling Height:	14'0"

Spacious 2 Car Garage with 14 Foot Ceiling and Loft

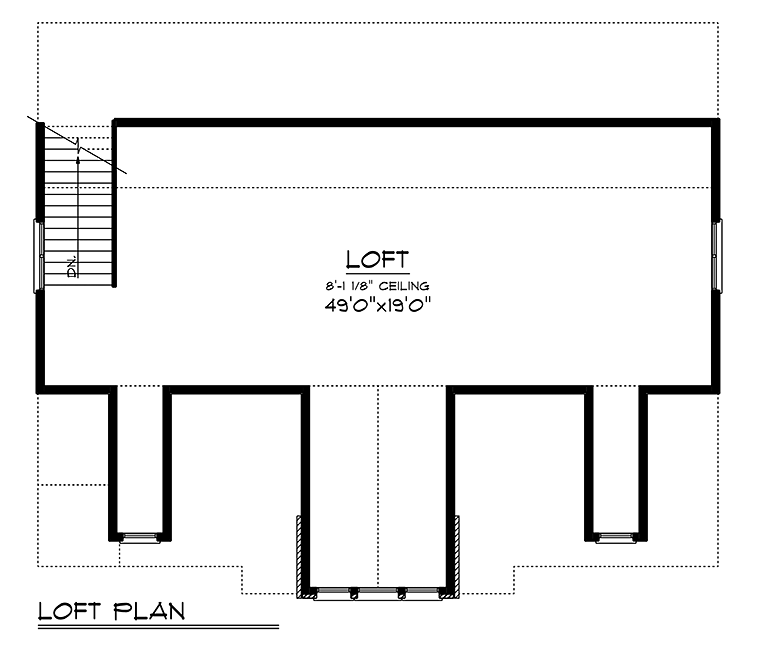

This garage plan has a two stall design that impresses with a stone façade meant to draw attention. 14 foot ceilings in garage allow for easy car maintenance. Located upstairs is a spacious loft for an office, extra storage or a small apartment. Windows are located on all four sides to allow plenty of natural light into the garage and loft.
A convenient bathroom with stand up shower are located on the first floor.

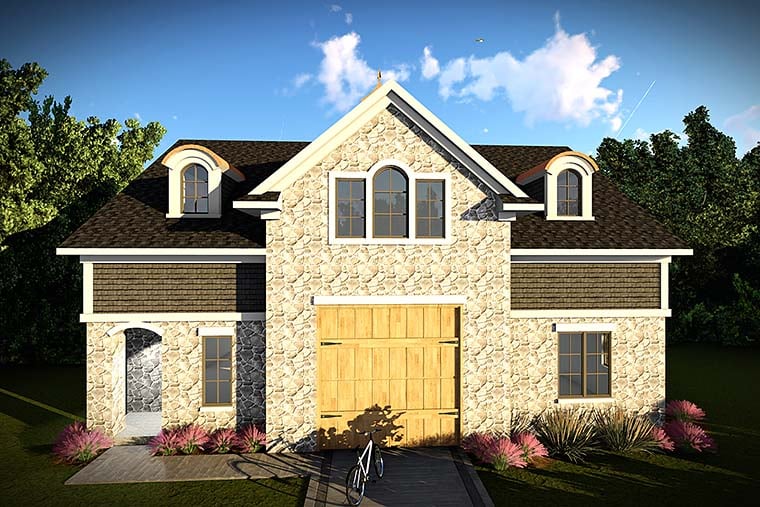

Cover sheet with Front Rendering.

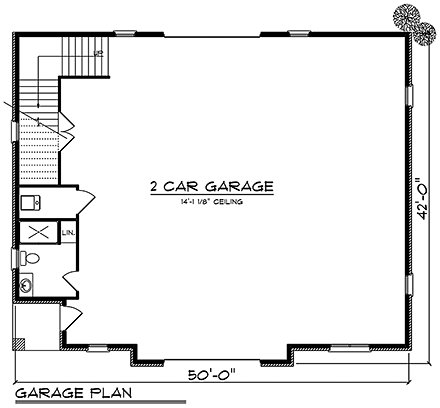

Foundation and Floor Plans at 1/4" = 1'0" scale.

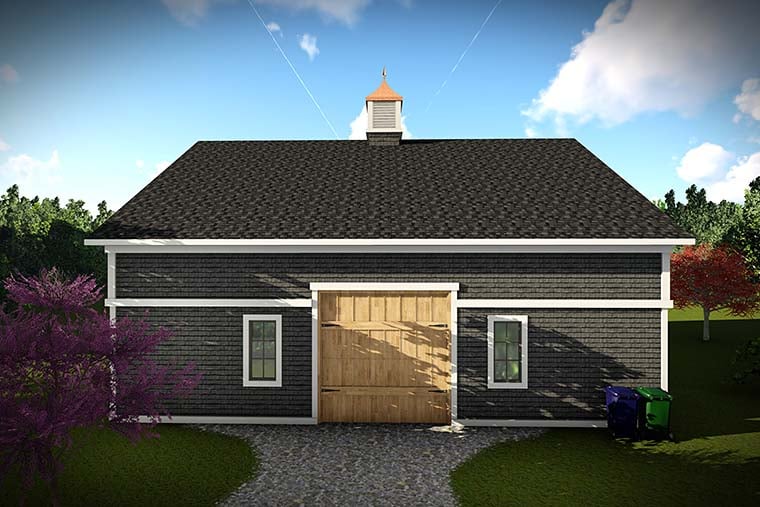

Exterior Elevations of all four views, front at 1/4" = 1'0" scale, rear and sides vary from 1/8" to 1/4" = 1'0" scale.

Building Sections and Details as required to construct the individual design.

Interior Elevations of Cabinets at 1/4" = 1'0" scale.

Roof Plans

Schematic Electrical Plans with suggested switch, outlet, and light fixture locations.

General Specifications design notes.

Note: Mechanical and Plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
