Multi-Family Plan 75731
Modern Style with 3 Bed, 3 Bath, 1 Car Garage
sq ft
1277beds
3baths
1.5bays
1width
88'depth
38'
click for more images
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1277 sq ft |
| Main Living Area: | 562 sq ft |
| Upper Living Area: | 715 sq ft |
| Garage Area: | 217 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 1 |
| Foundation Types: | Basement - * $245.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab - * $245.00 |
| Exterior Walls: | 2x6 |
| House Width: | 88'0 |
| House Depth: | 38'0 |
| Number of Stories: | 2 |
| Bedrooms: | 3 |
| Full Baths: | 1 |
| 3/4 Baths: | 1 |
| Half Baths: | 1 |
| Max Ridge Height: | 25'3 from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Unknown |
| 2nd Floor Laundry: | Yes |
| Main Ceiling Height: | 9' |
| Upper Ceiling Height: | 8' |
Special Features:
What's Included?
Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
Foundation
Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
Main Level Floor Plan
1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout
Second Level Floor Plan.
1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
Electrical and Sections
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
Roof Framing Plan.
Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Previous Q & A
A: Yes. Here are the details (These prices as of 9/19/2022 and may change in the future) $4995.00 CAD File + PDF +$500.00 Unlimited builds +$245.00 RR Reverse + Regular $5495.00 Total fees. Delivery time will be three business once ordered.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

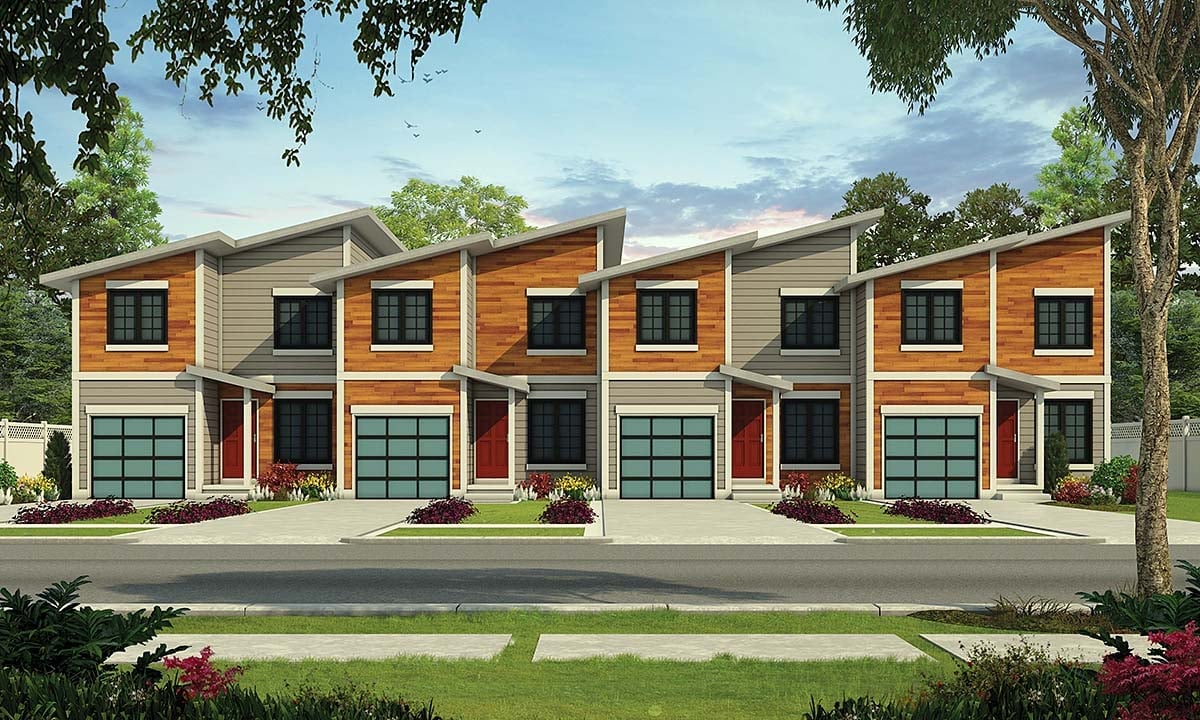

Elevation
Level One
Level Two
Quick Specs
1277 Total Living Area562 Main Level
715 Upper Level
3 Bedrooms
1 Full Baths, 1 3/4 Baths, 1 Half Baths
1 Car Garage
88'0 W x 38'0 D
Quick Specs
1277 Total Living Area3 Bedrooms
1 Full Baths, 1 3/4 Baths, 1 Half Baths
1 Car Garage
88'0 W x 38'0 D
Rear Elevation
Photographs may show modified designs.
