House Plan 76058
Country Style, 1343 Sq Ft, 3 Bed, 2 Bath | Plan 76058
sq ft
1343beds
3baths
2bays
0width
36'depth
44'
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1343 sq ft |
| Main Living Area: | 768 sq ft |
| Upper Living Area: | 575 sq ft |
| Garage Type: | N/A or Unknown |
| Foundation Types: | Crawlspace |
| Exterior Walls: | 2x6 |
| House Width: | 36'0 |
| House Depth: | 43'6 |
| Number of Stories: | 2 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 25'0 from Front Door Floor Level |
| Primary Roof Pitch: | 12:12 |
| Roof Load: | 32 psf |
| Roof Framing: | Stick |
| Porch: | 72 sq ft |
| Deck: | 600 sq ft |
Special Features:
Plan Description
Small Cottage Home Design
A wrap around porch and spacious rear deck makes this three-bedroom cottage appear to be larger than its compact and economical footprint.With the entire Kitchen open to the partially vaulted Great Room it makes this a truly open and expansive versatile year-round living space warmed by a free-standing wood stove.
The upstairs vaulted Master Bedroom boasts a ten-foot high ceiling and its own private viewing balcony. The Master is open to the Great Room below creating a unique look and feel to this suite.
What's Included?
Working drawings usually comprises of the following:
General notes. Site plan at 1/8"=1'-0". Foundation plan at 1/4"=1'-0". Some plans have foundation options, client to specify at time of order. Two cross sections at 1/4"=1'-0". Details as required. Main floor plan at 1/4"=1'-0". Second floor at 1/4"=1'-0", if applicable. All four elevations at 1/4"=1'-0". Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs. Plans are engineered by a structural engineer, but not stamped or sealed. Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf) Floor live load 40 psf. Assumed soil bearing capacity 1560 psf.
Electrical fixtures / switches / smoke alarms by location on floor plans. Plumbing fixtures by location on floor plans. Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.
Items not including with plans: Interior cabinet elevations. Window schedules.
Situations beyond the scope of these drawings: High wind speeds. Seismic, shear walls, holddowns, nailing patterns. Energy code compliance.
Modifications
Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!
Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.
Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Previous Q & A
A: 1. Roof joists are called up as 2x10 roof joists at 24 inches on center. (R28 within the roof joist cavity and R50 called up at the flat ceiling joist location) So an I joist could be called up at the roof joist location to obtain the required R value or this portion of roof could be furred down to obtain the necessary R value. Some locations allow for a lower R value for vaulted ceiling roof joist locations. I would be happy to modify this design if required. Please let me know. Best regards, Regan
A: Yes you are correct. These two plans are very similar especially the front elevation. Design 76058, is a little smaller in area from 76012, due to the removal of the main floor, rear and side wall bump outs. Please email with questions or if you require any additional information. Thank you for your interest in one of my designs. Best regards, Regan
A: Hi, Unfortunately no one has submitted any photos for design 76058. Have a look at design 76012 for photos, on FamilyHomePlans web site, as this plan is very similar. Thank you for your interest in one of my designs. Please email with questions or if you require any additional information.
A: Design 76058 The kitchen dimension is 8’-10” x 9’-6”. The kitchen Island is 3’-4” x 4’-0”. The passage between the Island and the cabinets is 3’-6” wide. Please email with any questions or if you require additional information. Thank you for your interest in one of my designs, Regan
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Elevation

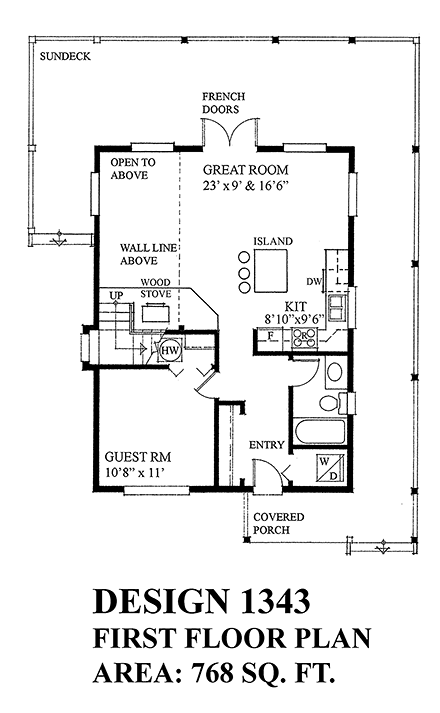

Level One
