1 Car Garage Plan 76062

• PDF File: $425.00

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Garage Area:	432 sq ft
Garage Type:	Detached
Garage Bays:	1
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	32'0
House Depth:	24'0
Number of Stories:	1
Max Ridge Height:	23'0 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Unknown
Porch:	56 sq ft
Main Ceiling Height:	8'0

Special Features:

• Workshop

RV Garage with Large Workshop

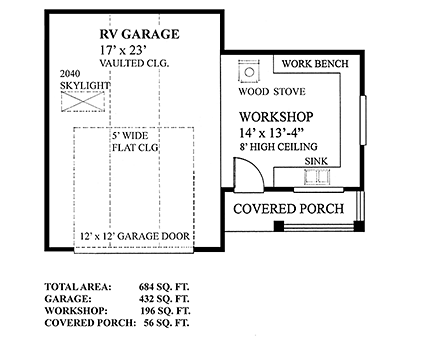

This RV Garage with Workshop plan provides two distinct and specific work and storage spaces.
The RV garage portion boasts a twelve-foot ceiling sloping to fifteen feet with a 12’ wide by 12’ high overhead garage door. Extra natural light is provided by a large skylight. Plans could be modified to accommodate a rear overhead garage door for drive through ease if required.
The 196 square foot workshop portion of this plan has an eight-foot ceiling height with ample work bench space including a wash up sink location. A wood stove makes this space a year-round functioning space. Or eliminate the stove to add additional work bench and storage.

These designs packages usually run between three and five 24" x 36" sheets.

Working drawings usually comprises of the following:

General notes. Site plan at 1/8"=1'-0". Foundation plan at 1/4"=1'-0". Some plans have foundation options, client to specify at time of order. Two cross sections at 1/4"=1'-0". Details as required. Main floor plan at 1/4"=1'-0". Second floor at 1/4"=1'-0", if applicable. All four elevations at 1/4"=1'-0". Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs. Plans are engineered by a structural engineer, but not stamped or sealed. Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf) Floor live load 40 psf. Assumed soil bearing capacity 1560 psf.

Electrical fixtures / switches / smoke alarms by location on floor plans. Plumbing fixtures by location on floor plans. Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.

Items not including with plans: Interior cabinet elevations. Window schedules.

Situations beyond the scope of these drawings: High wind speeds. Seismic, shear walls, holddowns, nailing patterns. Energy code compliance.
