House Plan 76511

• PDF File: $1,300.00
• 3 Sets: $1,425.00
• CAD File: $1,900.00
  Single Build License issued on CAD File orders.
• Right Reading Reverse: $200.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

** Please note that a PDF File is included with a 3 Set Order**



**Concerning all plans by this designer: Due to a certain staff shortage and upcoming summer holidays, orders received after July 6th may not be shipped before we get back in August.**

**All plans by this designer are being updated to IRC 2015 starting on March 13, 2023. This plan may be delayed by 4 business days before shipping.**

Available Foundation Types:

• Walkout Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1344 sq ft
Main Living Area:	672 sq ft
Upper Living Area:	672 sq ft
Unfinished Basement Area:	672 sq ft
Garage Type:	None
See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount.
Foundation Types:	Walkout Basement
Exterior Walls:	2x6
House Width:	26'0
House Depth:	28'0
Number of Stories:	2
Bedrooms:	2
Full Baths:	1
Half Baths:	1
Max Ridge Height:	28'3 from Front Door Floor Level
Primary Roof Pitch:	0
Roof Load:	55 psf
Roof Framing:	Unknown
FirePlace:	Yes
Main Ceiling Height:	9'0

* May require additional drawing time.

Special Features:

• 2nd Floor Balcony
• Brick or Stone Veneer
• Front Porch
• Narrow Lot
• Open Floor Plan
• Rear Porch

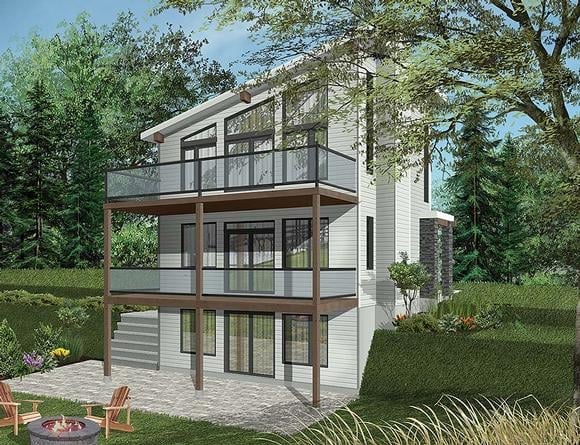

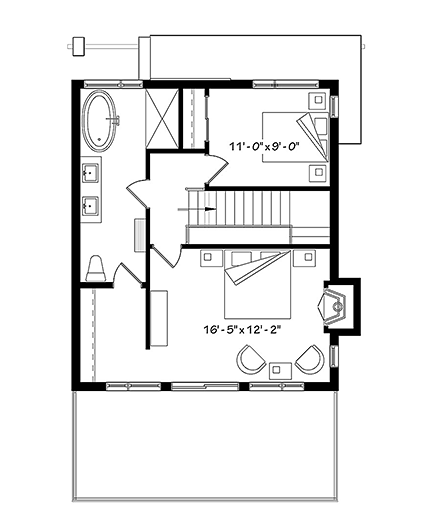

The new contemporary chalet plan charms at first by the impressive amount of windows and doors it offers to future owners. These openings allow a maximum of natural light to be obtained in several key rooms in the house: the activity area at the back and the master bedroom. Whether in the wooded countryside, along a lake or river, or in the mountains, this new cottage plan will give you the maximum enjoyment of the views available from your land. The main floor, which offers a ceiling height of 9 feet, allows you to enter a closed vestibule offering a wardrobe and which is adjacent to a convenient half bathroom (powder room). Then, to your left, find a flex room that can serve as a home office as well as a game room, TV room or guest bedroom. Located in the heart of the house, the dining room is near the kitchen and large enough to accommodate a table and 6 guests. Adjoining this dining room, an L shaped kitchen offers a large central island with sink and dishwasher, as well as a large counter space. The living room, open to the kitchen area, features a fireplace and an access to a large sheltered back deck. On the landing of the staircase leading to the second floor, a glass wall offers a view of the office area located at the front of the house. Upstairs, with a sloped ceiling, is the large master bedroom with a reading area, a fireplace, a walk-in closet, a private access to the upstairs bathroom and access to a large and private rear terrace! A secondary bedroom is also located upstairs and offers a good size closet and lots of natural light. A large family bathroom offers a double vanity, a toilet, a bath and a large shower, separate from the bath.

-4 elevations
-foundation plan
-main floor paln
-upper floor plans (if applicable)
-roof plan
-truss diagrams and building section
-construction details
-typical wall section

BCIN # for Ontario customers is available at an additional charge

-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
  If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

• No Risk Offer: Order your Home-Cost Estimate now for just $24.95! We provide a discount code in your receipt that will refund (plus some) the Home-Cost price when you decide to order any plan on our website!
• Get more accurate results, quicker! No need to wait for a reliable cost.
• Get a detailed cost report for your home plan with over 70 lines of summarized cost information in under 5 minutes!
• Cost report for your zip code. (the zip code can be changed after you receive the online report)
• Estimate 1, 1-1/2 or 2 story home plans. **
• Interactive! Instantly see the costs change as you vary quality levels Economy, Standard, Premium and structure such as slab, basement and crawlspace.
• Your estimate is active for 1 FULL YEAR!
