Garage-Living Plan 78469

• 1 Set: $475.00 **
• 5 Sets plus PDF File: $735.00
• PDF File Unlimited Build: $1,130.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File Unlimited Build: $1,260.00
  Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $100.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $30.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	820 sq ft
Upper Living Area:	820 sq ft
Garage Area:	988 sq ft
Garage Type:	Detached
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	38'0
House Depth:	42'0
Number of Stories:	2
Bedrooms:	2
Full Baths:	1
Max Ridge Height:	25'3 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Load:	25 psf
Roof Framing:	Stick
Deck:	480 sq ft
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

Special Features:

• 2nd Floor Balcony
• Deck or Patio
• Office
• Storage Space

Craftsman Style Garage Apartment with Shop on Main Floor and Living Above

Looking for a guest house or a detached work space? This garage plan makes an ideal addition to any property. At the back of the garage is a door that opens to a shop. The shop offers plenty of space to take on most projects. An exterior staircase leads to the second floor loft. to your left is a kitchenette. Across the entry is a full bathroom. The loft can be furnished as a living area or hobby space. Off the loft is a balcony and two offices. These could easily be set up as bedrooms.

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

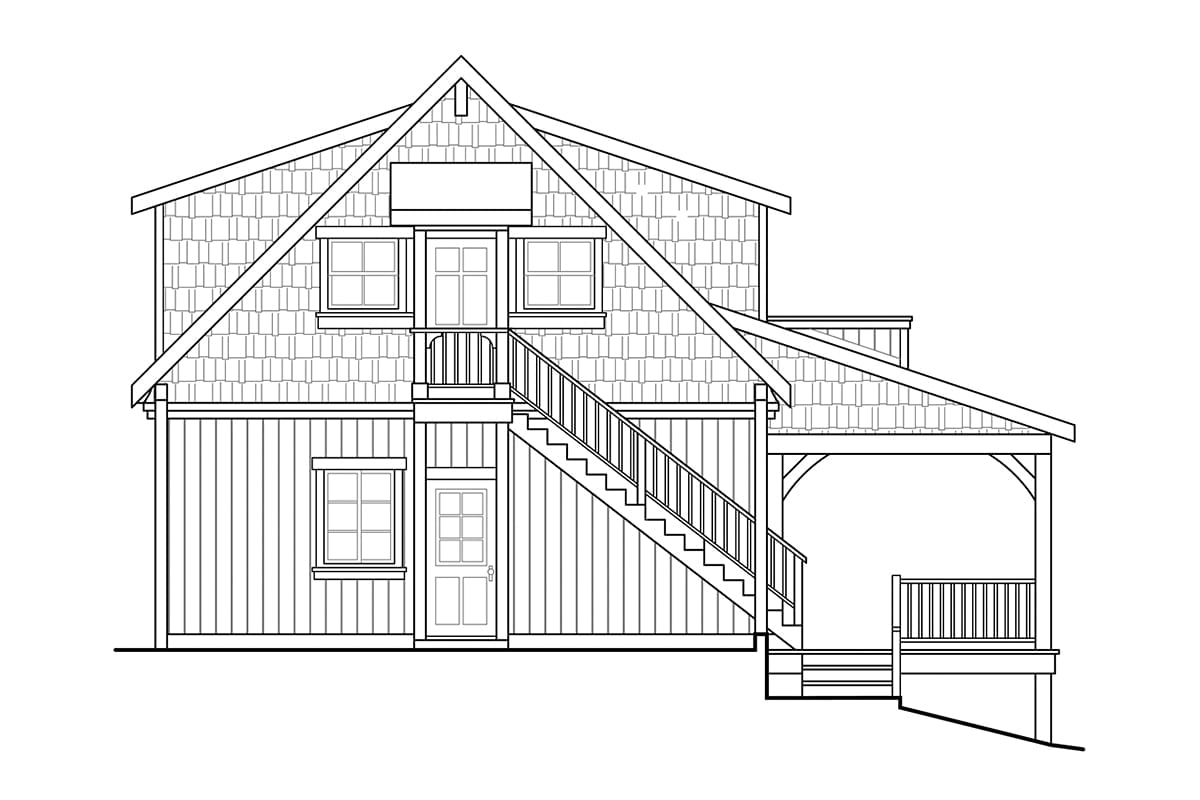

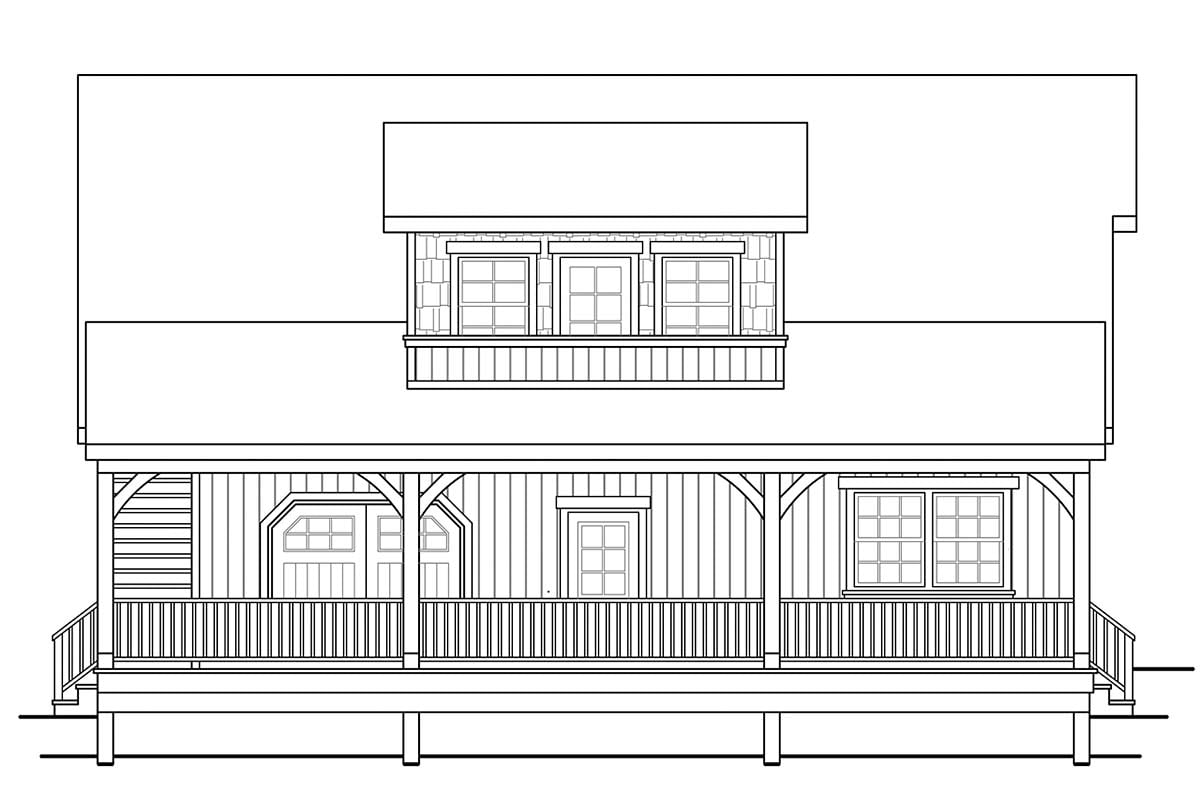

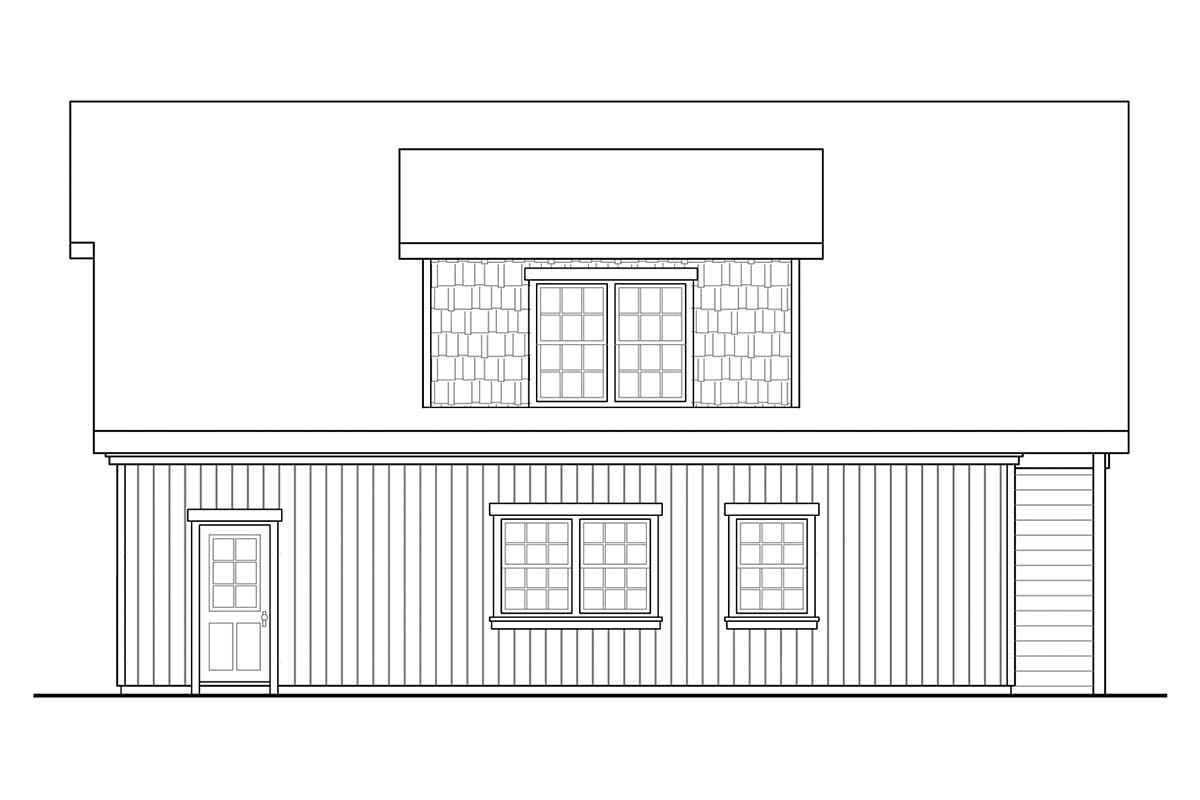

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

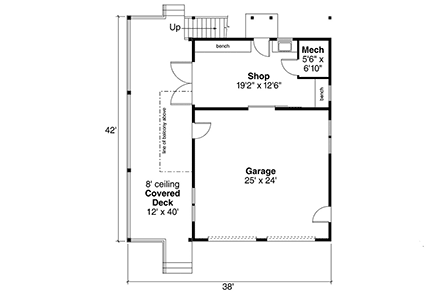

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

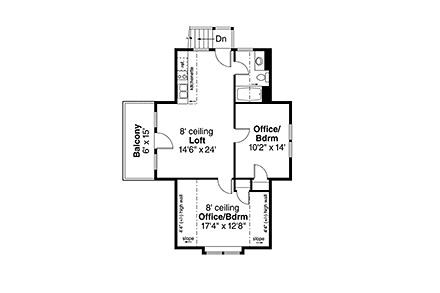

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.
