Multi-Family Plan 78487

• PDF File: $3,685.00
• 1 Set: $1,455.00 **
• 5 Sets plus PDF File: $2,185.00
• CAD File: $4,045.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
• Right Reading Reverse: $525.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $80.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Additional Notes

Unit A 1st Floor: 744 sq ft 2nd Floor: 887 sq ft Garage: 395 sq ft Bedrooms: 3 Full Baths: 2 Half Baths: 1 Garage Bays: 2

Unit B 1st Floor: 745 sq ft 2nd Floor: 885 sq ft Garage: 395 sq ft Bedrooms: 3 Full Baths: 2 Half Baths: 1 Garage Bays: 2

Unit C 1st Floor: 744 sq ft 2nd Floor: 887 sq ft Garage: 394 sq ft Bedrooms: 3 Full Baths: 2 Half Baths: 1 Garage Bays: 2

Available Foundation Types:

• Crawlspace : No Additional Fee

Available Exterior Wall Types:

• 2x4: $660.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1631 sq ft
Main Living Area:	744 sq ft
Upper Living Area:	887 sq ft
Garage Area:	395 sq ft
Garage Type:	Attached
Garage Bays:	6
Foundation Types:	Crawlspace
Exterior Walls:	2x4 - * $660.00 2x6
House Width:	110'0
House Depth:	37'0
Number of Stories:	2
Bedrooms:	9
Full Baths:	6
Half Baths:	3
Max Ridge Height:	26'9 from Front Door Floor Level
Primary Roof Pitch:	7:12
Roof Load:	20 psf
Roof Framing:	Truss and/or Stick
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Deck or Patio
• Entertaining Space
• Front Porch
• Open Floor Plan
• Storage Space

Artist's Rendering: An artist's drawing of the home, usually viewed from the front.

Elevations: Drawings which show the front, sides, and rear of the home, including exterior materials, trim sizes, roof pitches, etc.

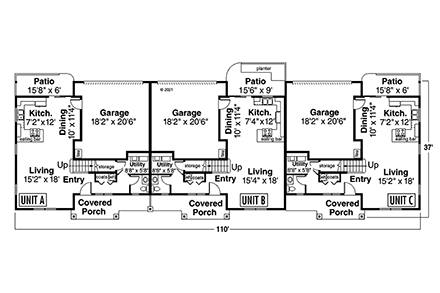

Main Floor Plan: Shows the placement and dimensions of all walls, doors, and windows. Includes the location of beams, ceiling heights, pertinent interior elevations, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details.

Basement Plan (if any): Included if the plan has a basement alternative. Shows all basement details. Plans which include alternate basement stair location or main basement stair will include a basement plan. Other plans can be modified to include a basement foundation.

Roof Framing Plan: Shows roof outlines, conventional framing and/or trusses, beams, roof framing details, etc.

Details: Drawings which show specific details such as fireplaces, stairways, decks, etc.

Section: A drawing of a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan: A schematic layout of all lighting and electrical outlets.
