House Plan 80457
Traditional Style, 2338 Sq Ft, 4 Bed, 4 Bath, 2 Car | Plan 80457
sq ft
2338beds
4baths
3.5bays
2width
42'depth
60'Click Any Image For Gallery
Plan Pricing from $1,155.00
Plan Pricing
Need Printed Sets?
It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 2338 sq ft |
| Main Living Area: | 1493 sq ft |
| Upper Living Area: | 845 sq ft |
| Garage Area: | 470 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement Crawlspace - * $295.00 Slab - * $295.00 |
| Exterior Walls: | 2x6 |
| House Width: | 42'0 |
| House Depth: | 60'0 |
| Number of Stories: | 2 |
| Bedrooms: | 4 |
| Full Baths: | 3 |
| Half Baths: | 1 |
| Max Ridge Height: | 30'9 from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Framing: | Unknown |
| 2nd Floor Laundry: | Yes |
| Main Ceiling Height: | 9'0 |
| Upper Ceiling Height: | 8'0 |
Plan Description

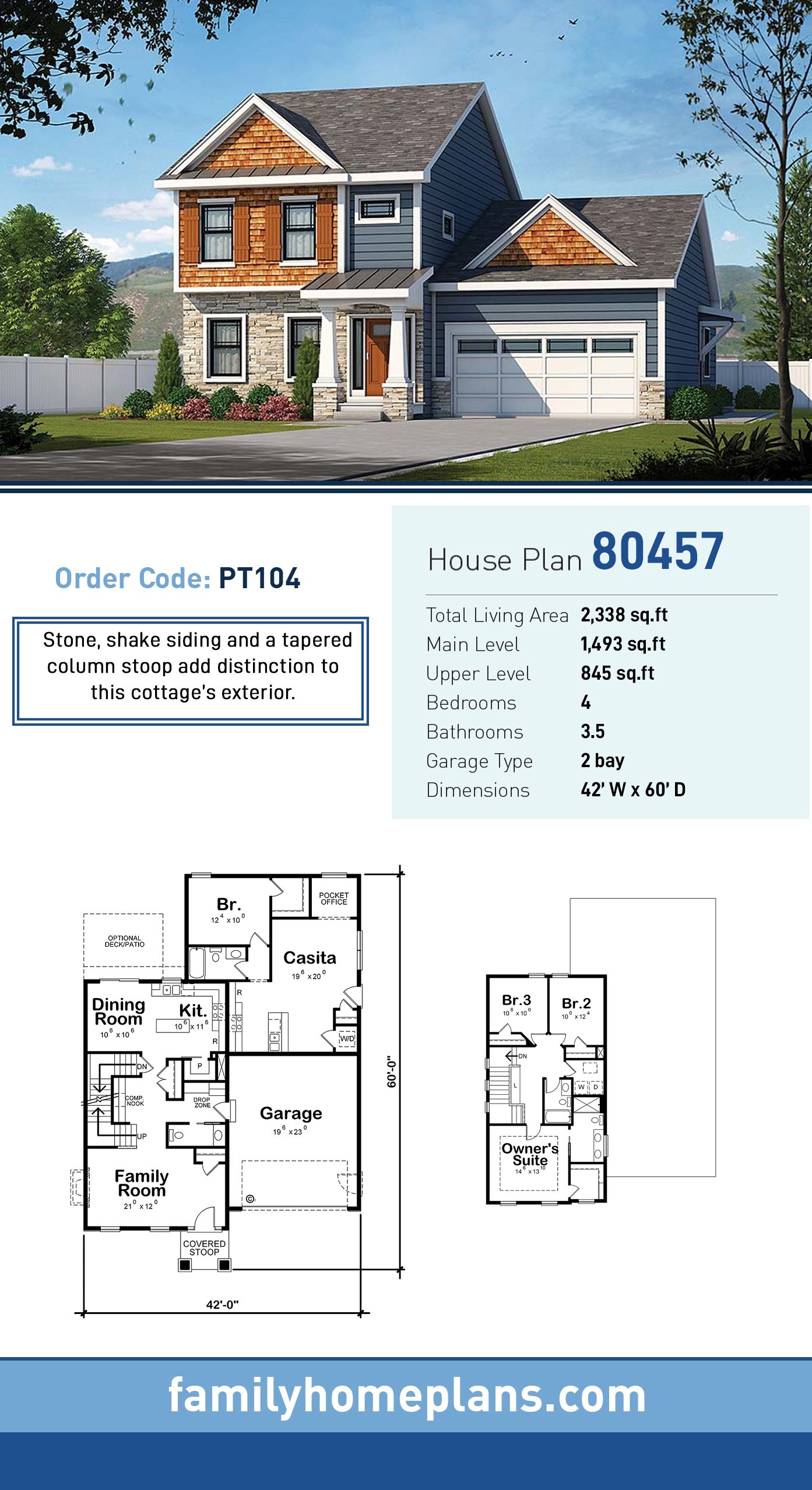

Stone, shake siding and a tapered column stoop add distinction to this cottage’s exterior. But what will delight the majority of buyers is the home’s first-floor casita tucked behind the garage. Perfect for a live-in caregiver/nanny or adult child. The casita has its own bedroom, bathroom, kitchen, entertaining space and even a pocket office for finishing up projects. The main home provides ample entertaining and daily living accommodations on the main floor. Three bedrooms, two bathrooms and the laundry room on the second floor, and there are transom windows in both the owner’s bathroom and walk-in closet for welcome natural light.
Special Features:
What's Included?
Cover Page
Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
Foundation
Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
Main Level Floor Plan
1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout
Second Level Floor Plan.
1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
Electrical and Sections
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
Roof Framing Plan.
Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.
Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.
Foundation
Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.
Main Level Floor Plan
1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout
Second Level Floor Plan.
1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
Electrical and Sections
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.
Roof Framing Plan.
Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.
Modifications
Receive a FREE modification estimate.
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Cost To Build
What will it cost to build your new home?
Let us help you find out!
Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.
$29.95 per plan
** Available for U.S. and Canada
With your 30-day online cost-to-build estimate you can start enjoying these benefits today.
- INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
- RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
- INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
- REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
- PEACE OF MIND: Take the financial guesswork out of building your dream home.
- DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
- EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.
Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Info Brochure
Elevation
Level One
