Multi-Family Plan 80460

• PDF Study Set: $1,515.00
  Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
• PDF File: $2,280.00
• PDF File Unlimited Build: $2,780.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $3,345.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $3,845.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Materials List: $175.00
• Right Reading Reverse: $245.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $45.00

Available Foundation Types:

• Crawlspace : $245.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: $245.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	6195 sq ft
Main Living Area:	2427 sq ft
Upper Living Area:	3768 sq ft
Garage Area:	1449 sq ft
Garage Type:	Attached
Garage Bays:	2
Foundation Types:	Crawlspace - * $245.00 Slab
Exterior Walls:	2x4 - * $245.00 2x6
House Width:	84'0
House Depth:	50'0
Number of Stories:	2
Bedrooms:	9
Full Baths:	6
Half Baths:	3
Max Ridge Height:	32'0 from Front Door Floor Level
Primary Roof Pitch:	12:12
Roof Framing:	Unknown
FirePlace:	Yes
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'0
Upper Ceiling Height:	8'0

* May require additional drawing time.

Special Features:

• Deck or Patio
• Dropzone
• Office
• Open Floor Plan
• Pantry
• Storage Space

Cover Page
Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.

Foundation
Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.

Main Level Floor Plan
1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout

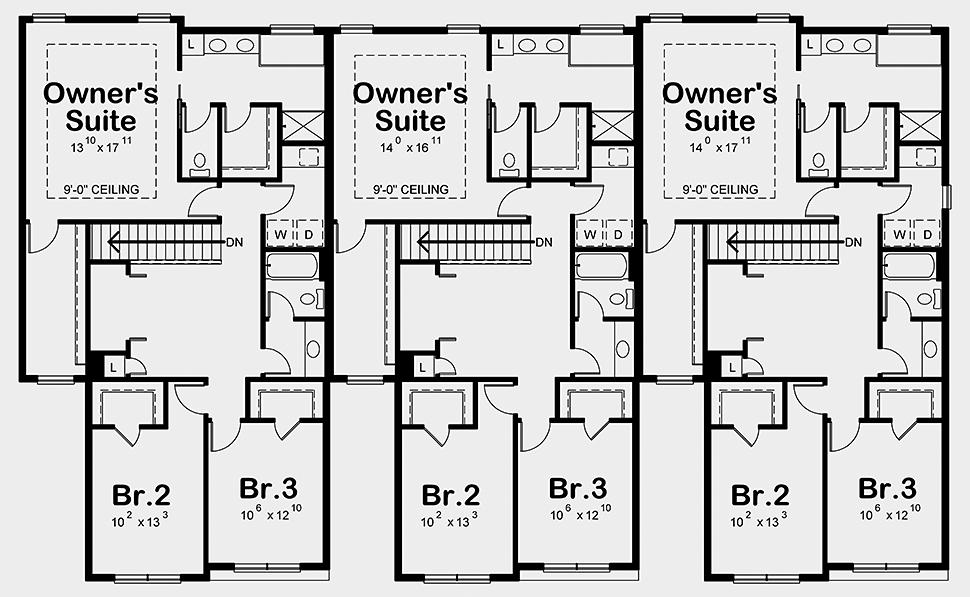

Second Level Floor Plan.
1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.

Electrical and Sections
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan.
Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

We are sorry, but an estimated cost build report is not available for this particular plan.
