House Plan 80802
3 Bedroom New American Home Plan
sq ft
1697beds
3baths
2bays
2width
58'depth
51'
click for more images
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Plan Description
3 Bedroom New American Home Plan
New American Home Plan 80802 has 1,697 square feet of air-conditioned space. Plus, enjoy 287 square feet outside when you count both covered porches. In the back, we have a rear covered porch measuring 21'4 wide by 8' deep. This one-story home has 3 bedrooms and 2 bathrooms with the popular split floor plan. Storage options are placed strategically throughout the home to help busy families remain organized. Buyers will build this home because the traditional architecture will fit into any new home development.
New American Home Plan Designed for Family Fun

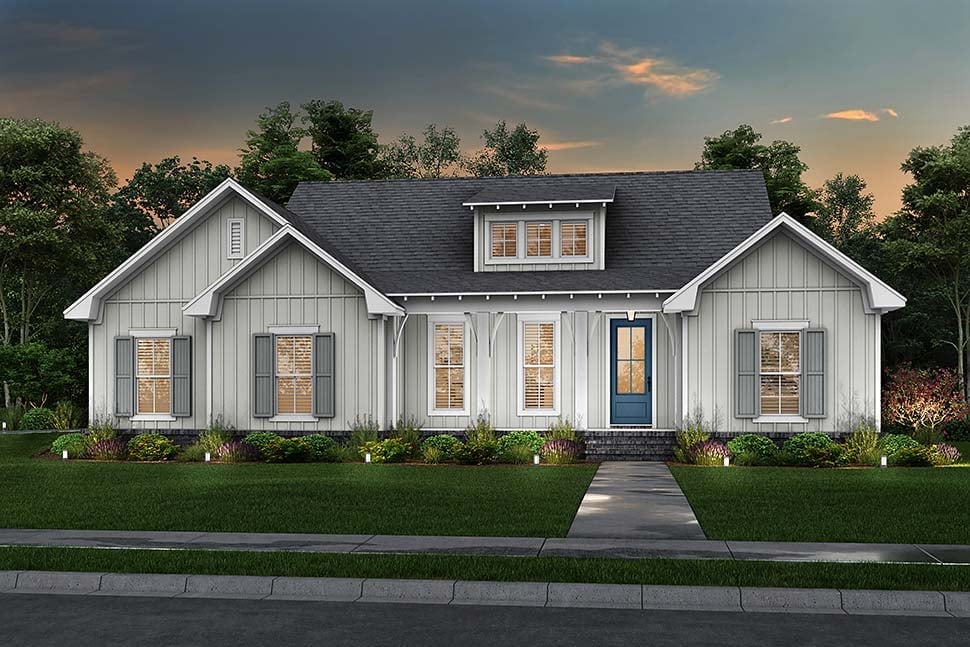

New American Home Plan 80802 will appeal to buyers for several reasons. Firstly, this home has excellent curb appeal. Vertical wood siding and gray shingles lend farmhouse nostalgia to this home. We love the deeper gray tone of the board and batten shutters because they add country flavor. To top it all off, more character is added by the shed style dormer above the front porch. Secondly, outdoor living space is a high priority of today's homeowners. The back porch measures 21'4 wide by 8' deep, and that's plenty of space for outdoor dining. Add your favorite grill and spend time with family on warm summer days.
Thirdly, open living space means no separation between you and your guests. The non-vented, gas log fireplace is surrounded by built-ins so you can display souvenirs from that amazing vacation last summer. Guests will start the evening by perching on a barstool at the huge kitchen island. Chat with your best friends while finishing up the meal preparation. Notice, you will never run out of supplies because there is a large walk-in pantry right off the kitchen. It includes a broom closet and lots of shelving.
Master Suite with Huge Walk In Closet
Parents will appreciate the split floor plan because it gives them a little more privacy. Think about the weekends especially. The kids have friends over, and they just won't settle down. That's ok. Mom and Dad will retreat to the far left side of the house and enjoy their fully-stocked master suite. The master bedroom is 13' wide by 16' deep, and the ensuite includes his and her sinks, custom shower, private water closet, and linen storage. The large walk-in closet measures 9'2 wide by 6'2 deep.
Bedrooms 2 and 3 share the full guest bathroom on the opposite end of the house. This home plan has two bathrooms, and most families find that's a time-saver. For example, it's easier to clean the house when you only have to worry about 2 bathrooms. In the mornings, the kids will sit in the sunny dining area in the kitchen to eat breakfast. Next, they will collect their bookbags from the locker drop zone before going into the 2 car, side entry garage to load up for the ride to school.
In conclusion, New American Home Plan 80802 has everything you need for your family to function in comfort and style.
Plan Pricing
Unlimited License To Build included with CAD file sale.
CAD file sale also includes PDF file. Materials list will NOT reflect any options that have an additional fee because those are modifications. If you buy a materials list, it will only reflect the standard original plan. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 1697 sq ft |
| Main Living Area: | 1697 sq ft |
| Garage Area: | 600 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab |
| Exterior Walls: | 2x4 2x6 - * $325.00 |
| House Width: | 57'2 |
| House Depth: | 50'4 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Max Ridge Height: | 23'0 from Front Door Floor Level |
| Primary Roof Pitch: | 9:12 |
| Roof Framing: | Stick |
| Porch: | 287 sq ft |
| FirePlace: | Yes |
| Main Ceiling Height: | 9' |
Special Features:
What's Included?
Cover Sheet – May include index, front view of home, definitions, etc.
Foundation Plan – Typically includes dimensioned foundation plan with footing details.
Dimensioned Floor Plan – Electrical may be shown.
Exterior Views – Four exterior views of the residence with other miscellaneous details.
Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
Electrical Plan – Displays all switches, lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan.
Wall Section(s) – Detail of wall materials and assembly.
Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
Cabinet Elevations – Displays interior kitchen cabinet views.
Blank Specifications – Specifications guide for the purchaser and their builder to complete. Not available on all plans.
*Note: The items listed above as “Not available on all plans” are not always required for every plan depending on location and complexity.
Items Not Included
Mechanical Plans - Because of varying site conditions, mechanical plans such as plumbing and HVAC plans are not included. These items are easily obtained by your mechanical contractor or material supplier.
Site Plans – If required, this information must be obtained locally to include the information specific to your individual property.
Structural Calculations – In certain areas, particularly those in earthquake and hurricane zones, permit departments may require you to submit structural calculations for your particular conditions. When required, you should consult with a local structural engineer.
Modifications
Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!
We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.
Email Designer This is the best and quickest way to get a modification quote!
Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.
It's as simple as that!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $24.95 credit per complete plan package order.
** Available for U.S. only.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Previous Q & A
A: The basement for this plan is only available as an unfinished basement, so there is no layout available. You can work with your builder to build out the space to your specific needs.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
click for galleryInfo Brochure
Photographs may show modified designs.

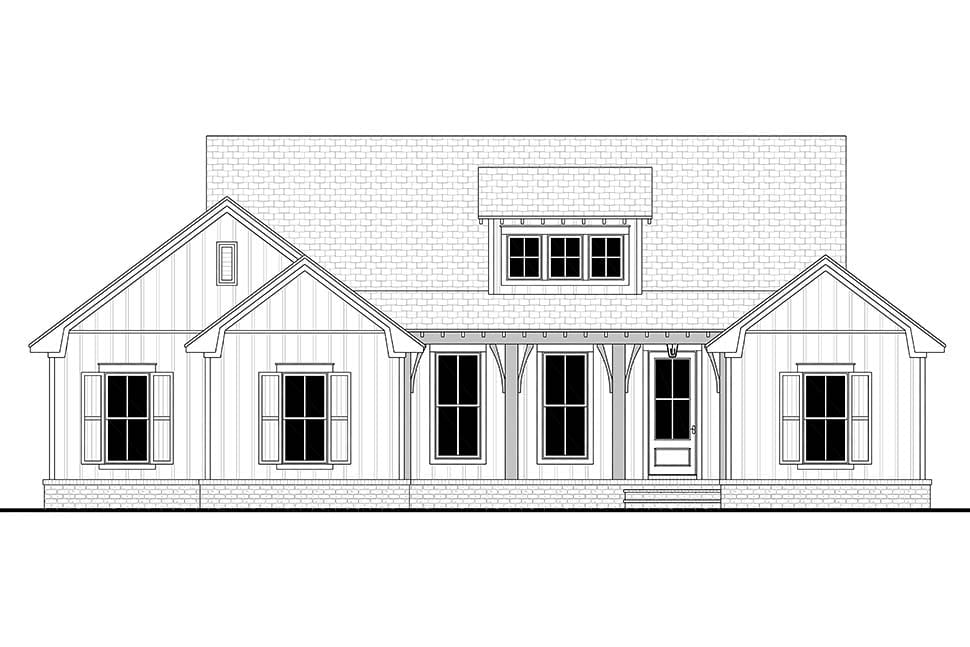

Elevation

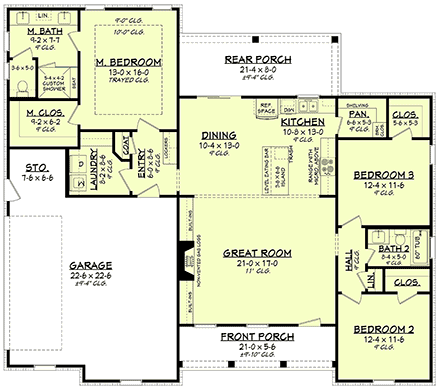

Level One
Alternate Level One
Quick Specs
1697 Total Living Area1697 Main Level
3 Bedrooms
2 Full Baths
2 Car Garage
57'2 W x 50'4 D
Quick Specs
1697 Total Living Area3 Bedrooms
2 Full Baths
2 Car Garage
57'2 W x 50'4 D

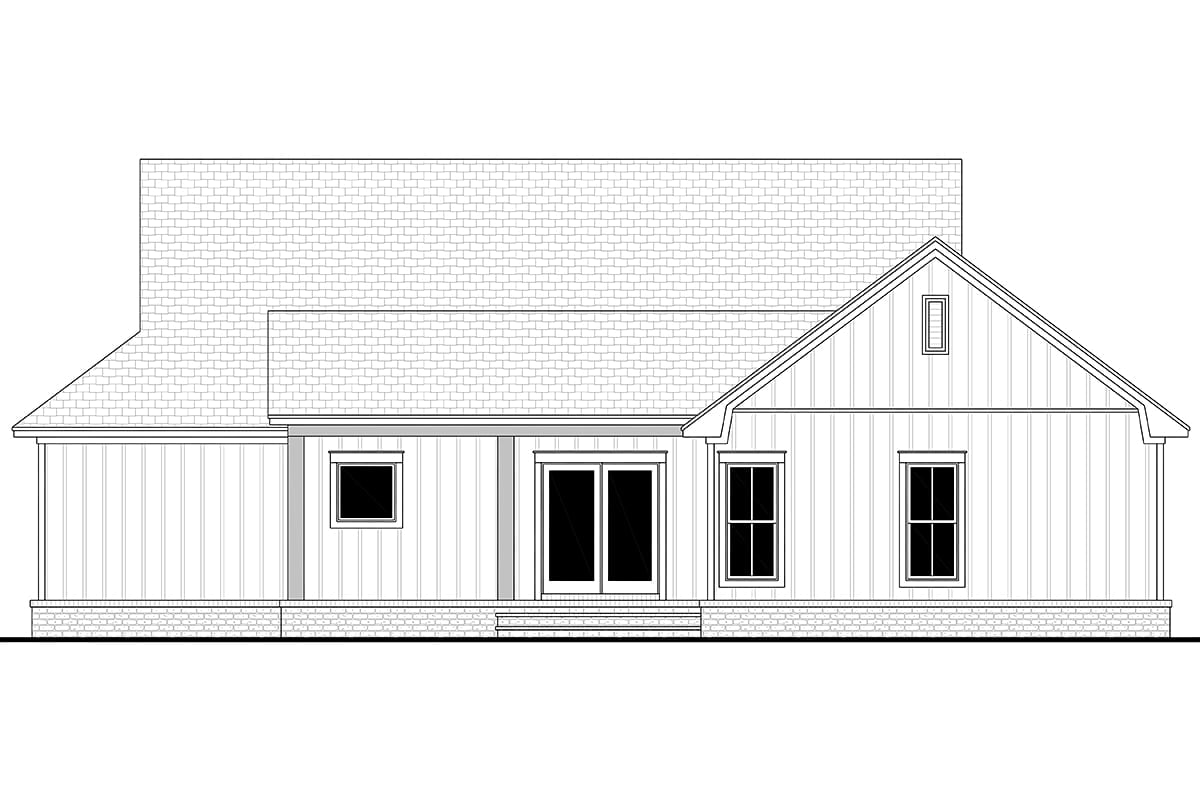

Rear Elevation
Photographs may show modified designs.
