Garage-Living Plan 80886

• PDF File: $795.00
• 5 Sets plus PDF File: $945.00
• CAD File: $1,295.00
  Single Build License issued on CAD File orders.
• Right Reading Reverse: $225.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $100.00

Unlimited License To Build included with CAD file sale.
CAD file sale also includes PDF file. Materials list will NOT reflect any options that have an additional fee because those are modifications. If you buy a materials list, it will only reflect the standard original plan. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	566 sq ft
Main Living Area:	179 sq ft
Upper Living Area:	387 sq ft
Garage Area:	447 sq ft
Garage Type:	Attached
Garage Bays:	1
Foundation Types:	Slab
Exterior Walls:	2x4
House Width:	31'4
House Depth:	42'0
Number of Stories:	2
Max Ridge Height:	25'0 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Load:	30 psf
Roof Framing:	Stick
Porch:	635 sq ft
Main Ceiling Height:	9'
Upper Ceiling Height:	9'

Special Features:

• Entertaining Space
• Hobby Room
• Outdoor Fireplace
• Outdoor Kitchen
• Storage Space
• Workshop

Perfect Pool House with Great Outdoor Living

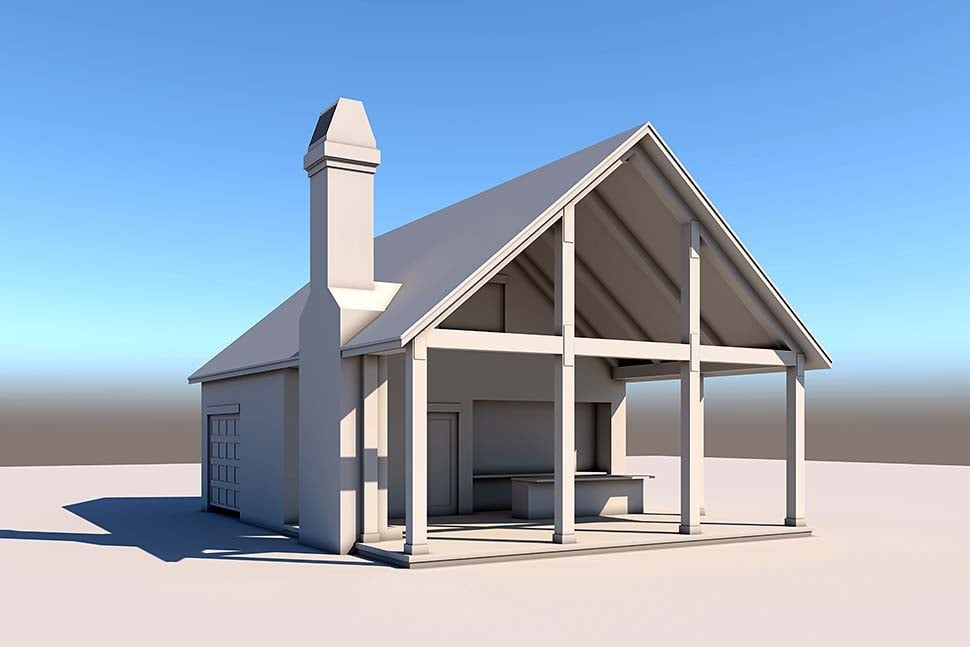

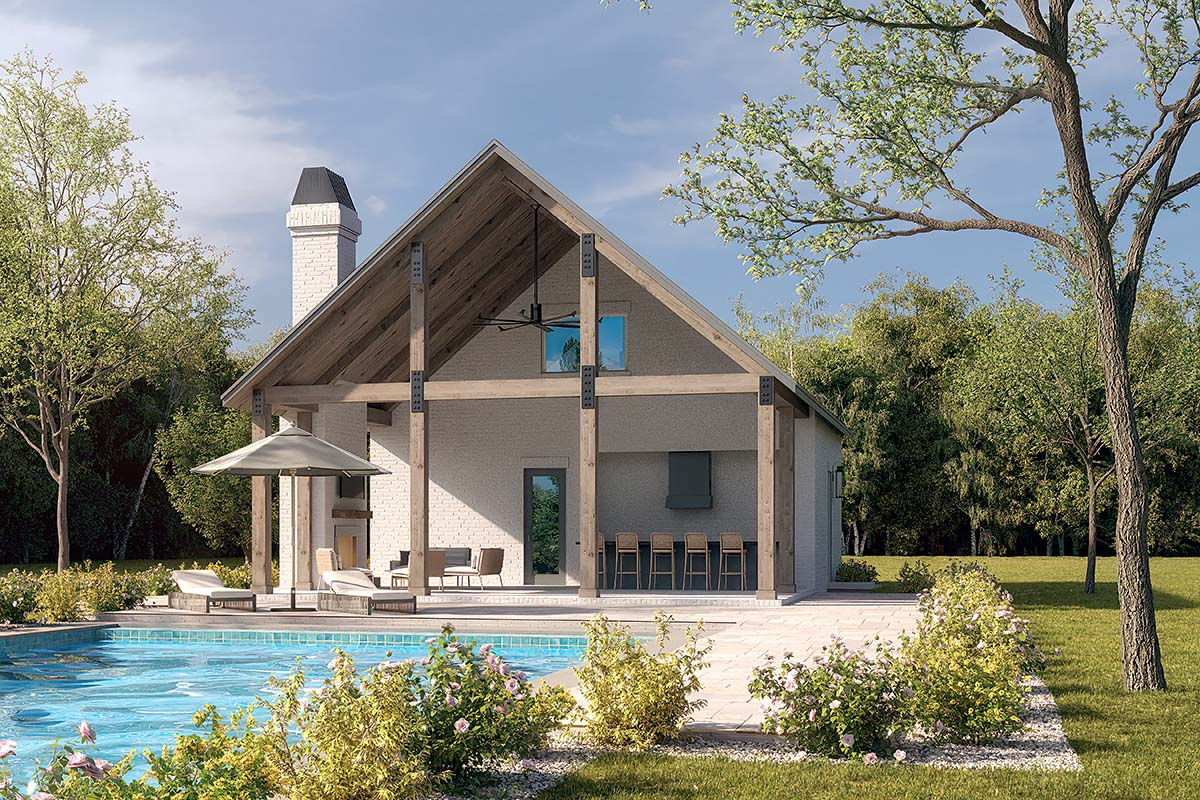

Pool House Plan 80886 is an eye-catching outbuilding, and it will make your summers unforgettable! Sunlight shimmers off the clear cool water of the pool as you approach. Thick, rustic columns decorate the exterior of the pool house and stretch upwards to support the vaulted porch ceiling. Creamy brick sets the modern vibe, and neutral colors promote optimal relaxation. Ah relaxation—that's what we're going for in this design.

Pool House Plan With Outdoor Kitchen

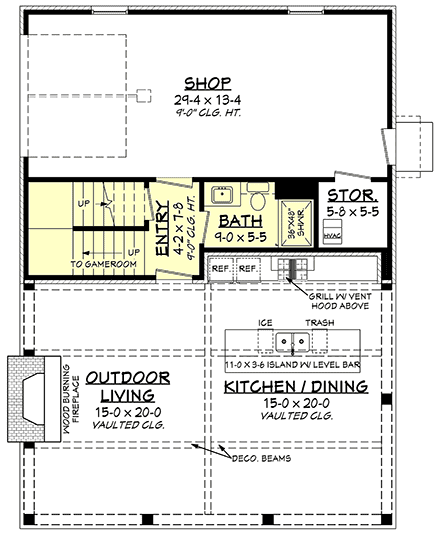

Pool House Plan 80886 offers so much more than your standard utilitarian pool house. Firstly, the interior is 566 square feet of air conditioned space. The main level has everything you need for family and guests to change and get ready for a dip in the swimming pool. Access the bathroom immediately upon entering the door, and that will cut down on wet footprints travelling too far inside. The bathroom measures 9' wide by 5'5 deep, and it includes a shower which is 36" x 48".

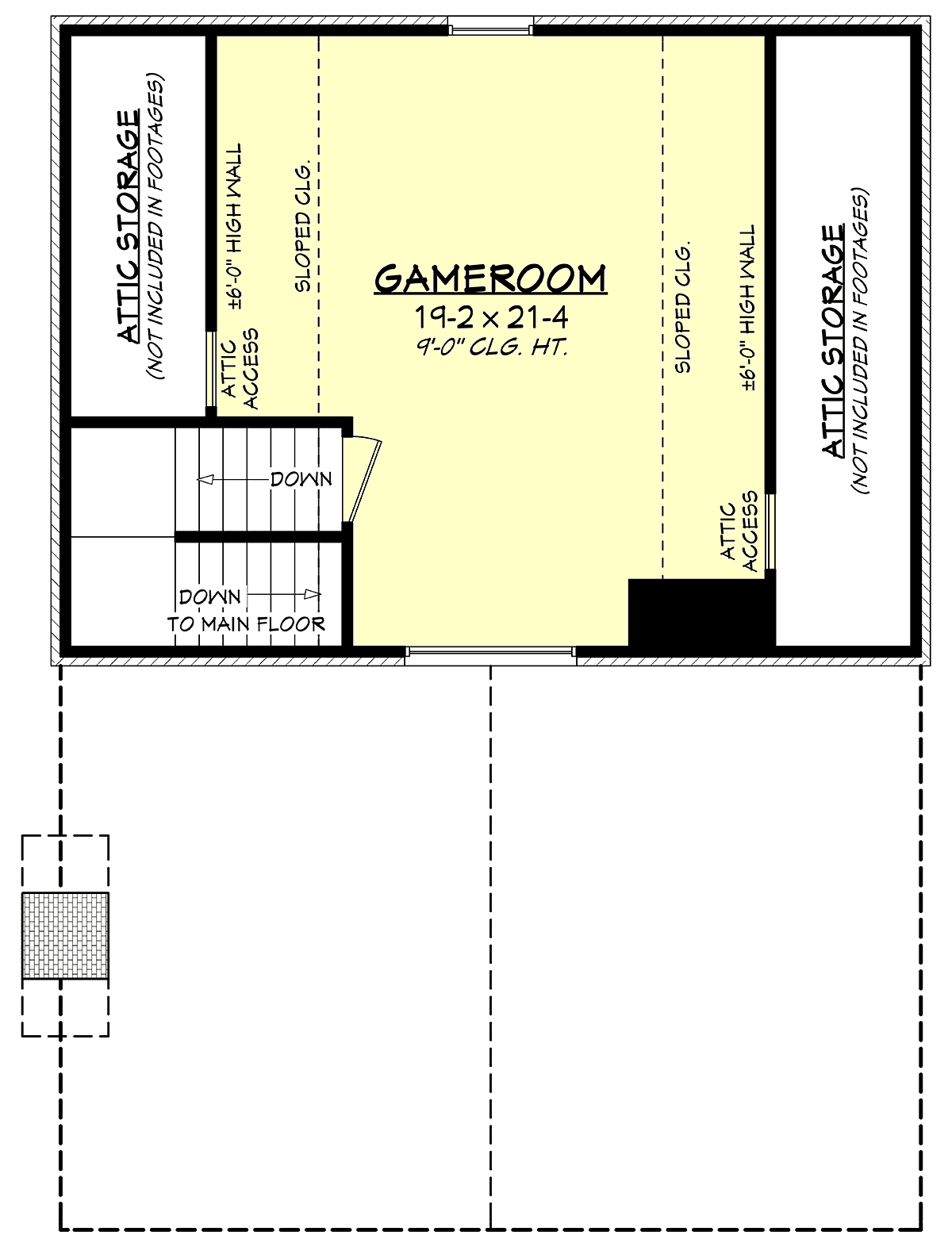

Secondly, make your way upstairs to find a giant game room. It measures 19'2 wide by 21'4 deep. You can keep games and all kinds of supplies because the plan includes abundant attic storage space. Use the game room for entertaining, or utilize it as a guest room when family comes over for the holidays. Thirdly, around back, there is a garage and shop area. Park an extra vehicle here to keep it out of the sun, and spend time on those woodworking projects you always meant to do.

Outdoor Living Space With Kitchen

Entertaining is easy with Pool House Plan 80886 because you can enjoy it year round. Is it getting a little chilly outside? No worries! The plan includes a wood burning fireplace. In the fall, snuggle up in front of the cracking fire with a mug of hot chocolate. Keep the kids entertained by handing out all the ingredients for delicious smores. Some will even add a tv above the mantle and enjoy an outdoor movie night. Don't worry, you won't have to go far to refill your popcorn bowl.

Buyers will choose this plan because it has a dream outdoor kitchen. Store your supplies in the built-in refrigerators and grill up hamburgers under the vent hood. Spread out the condiments and plates and serve up the meal at the island bar. The island measures 11' wide by 3'6 deep, and it includes an ice machine, concealed trash can, and sink for easy cleanup. In conclusion, building this perfect pool house will result in years of fun for your family and friends.

Cover Sheet – May include index, front view of home, definitions, etc.

Foundation Plan – Typically includes dimensioned foundation plan with footing details.

Dimensioned Floor Plan – Electrical may be shown.

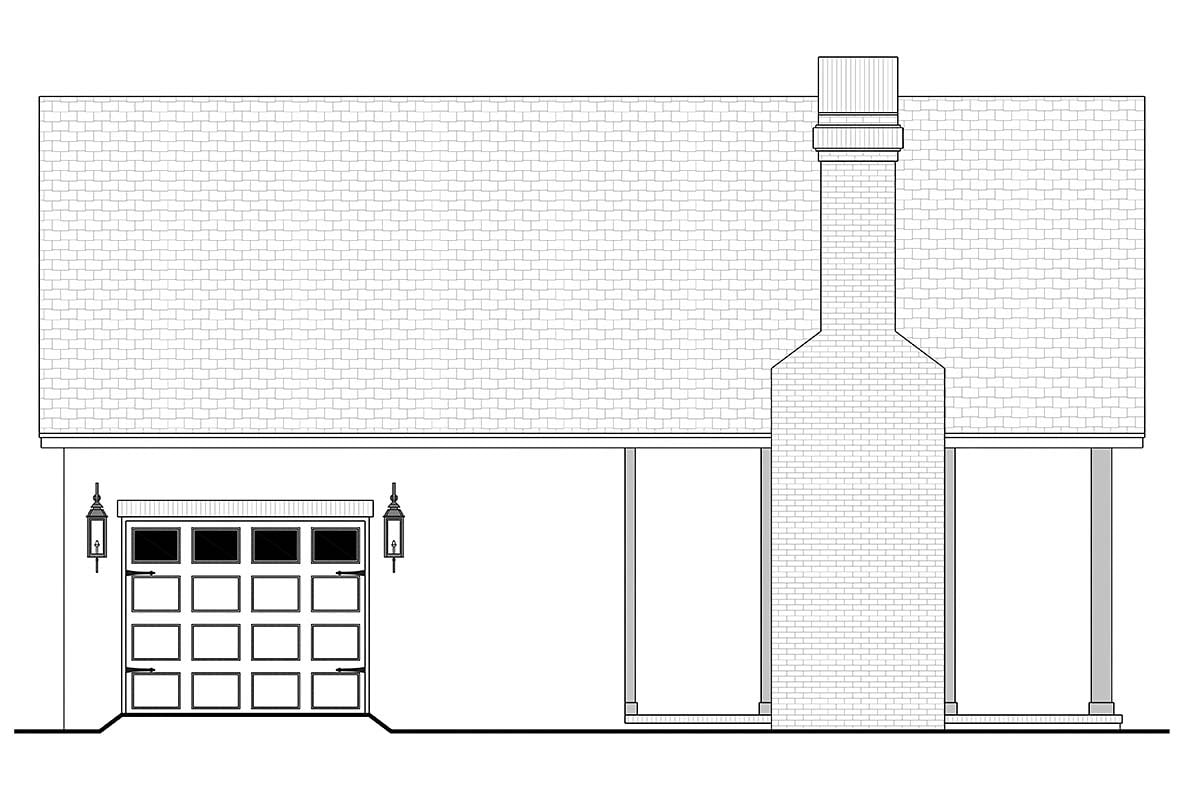

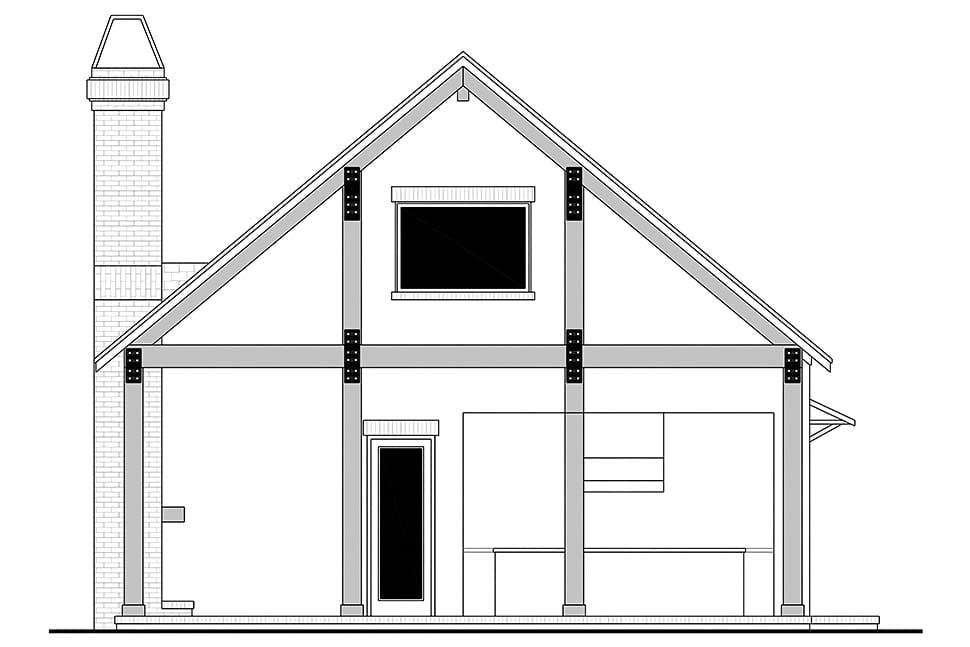

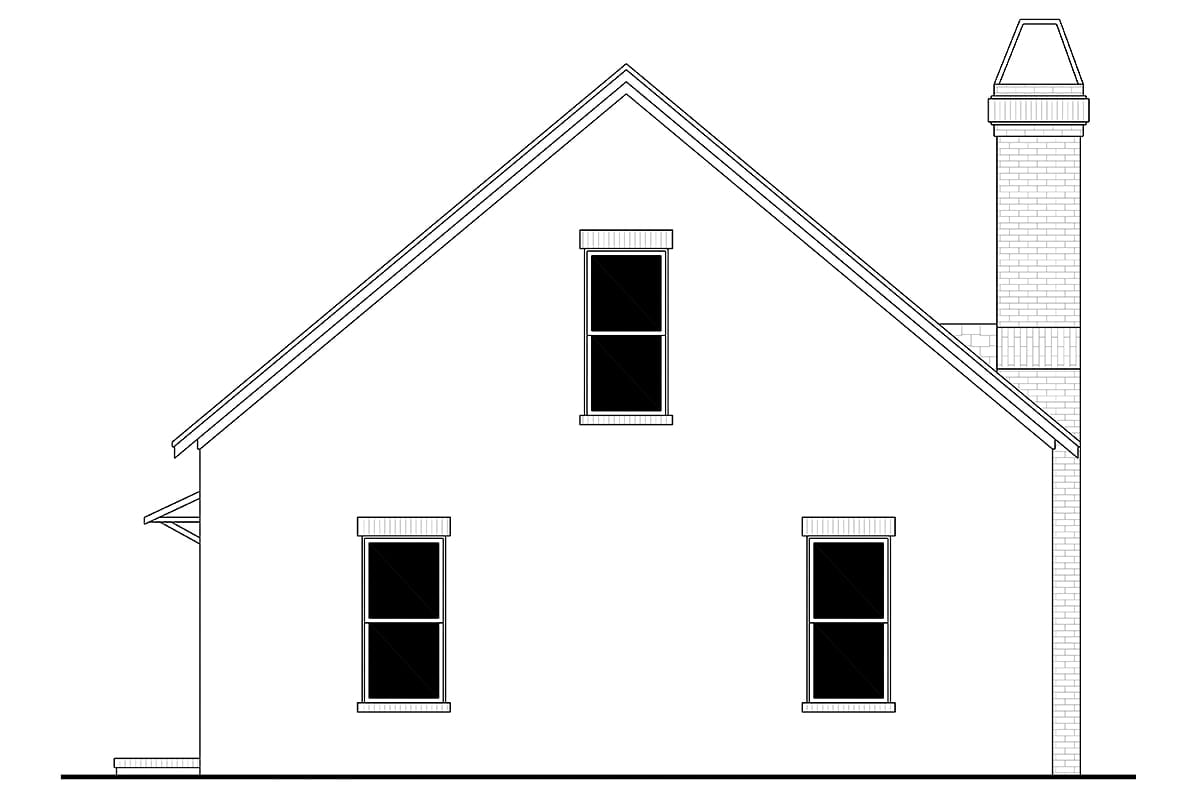

Exterior Views – Four exterior views of the residence with other miscellaneous details.

Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.

Electrical Plan – Displays lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches are NOT shown and should be located by contractor at site.

Wall Section(s) – Detail of wall materials and assembly.

Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.

Cabinet Elevations – Displays interior kitchen cabinet views.

ITEMS NOT INCLUDED

Mechanical Plans - Because of varying site conditions, mechanical plans such as plumbing and HVAC plans are not included. These items are easily obtained by your mechanical contractor or material supplier.

Site Plans – If required, this information must be obtained locally to include the information specific to your individual property.

Structural Calculations – In certain areas, particularly those in earthquake and hurricane zones, permit departments may require you to submit structural calculations for your particular conditions. When required, you should consult with a local structural engineer.

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Email Designer This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!
