Garage-Living Plan 80969
Traditional Style with 6 Bed, 5 Bath, 5 Car Garage
sq ft
3204beds
6baths
5bays
5width
81'depth
49'
click for more images
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Plan Pricing
Additional Notes
Unit A: 3 beds, 2 baths, 1412 heated sq. ft.Unit B: 3 beds, 2 baths, 1412 heated sq. ft.
Second Level Ceiling Height: 7' to 9'.
Materials List may take 3-5 weeks to fulfill depending on availability.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 3204 sq ft |
| Main Living Area: | 382 sq ft |
| Upper Living Area: | 2824 sq ft |
| Garage Area: | 2774 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 5 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 81'0 |
| House Depth: | 49'0 |
| Number of Stories: | 2 |
| Bedrooms: | 6 |
| Full Baths: | 5 |
| Max Ridge Height: | 32'3 from Front Door Floor Level |
| Primary Roof Pitch: | 10:12 |
| Roof Framing: | Stick |
| Deck: | 742 sq ft |
| Main Ceiling Height: | 14' |
Special Features:
What's Included?
a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE
Plans are sent in AutoCAD 2000 format
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.
Elevation

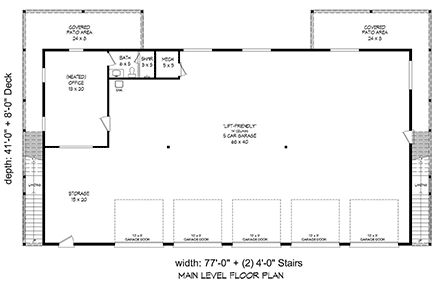

Level One

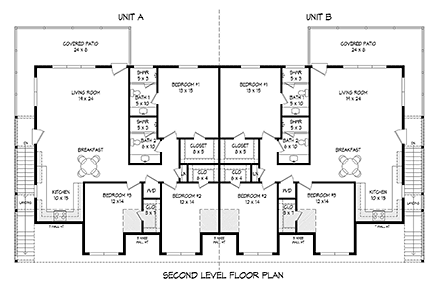

Level Two
Quick Specs
3204 Total Living Area382 Main Level
2824 Upper Level
6 Bedrooms
5 Full Baths
5 Car Garage
81'0 W x 49'0 D
Quick Specs
3204 Total Living Area6 Bedrooms
5 Full Baths
5 Car Garage
81'0 W x 49'0 D
Pricing
PDF File: $2,653.005 Sets: $2,884.00
5 Sets plus PDF File: $2,992.00
CAD File: $3,423.00
more info
Rear Elevation
Photographs may show modified designs.
