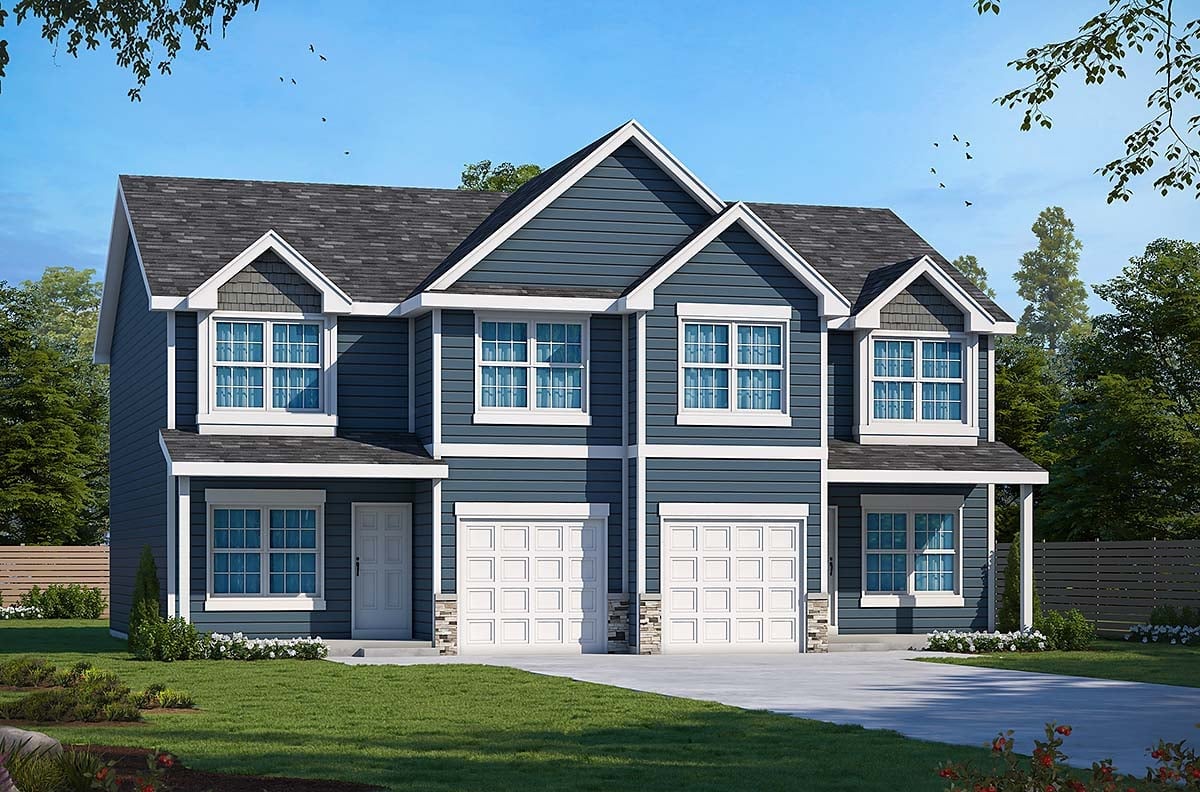

Multi-Family Plan 81461

• PDF Study Set: $1,290.00
  Get your plans fast! A PDF Study Set is a complete set of plans stamped NOT FOR CONSTRUCTION. Not considered a license-to-build. Great for bidding purposes. Customer can upgrade within 90 days.
• PDF File: $1,980.00
• CAD File: $2,995.00
  Single Build License issued on CAD File orders.
• Right Reading Reverse: $245.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Basement : $245.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $245.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : No Additional Fee
• Walkout Basement : $490.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $245.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1528 sq ft
Main Living Area:	688 sq ft
Upper Living Area:	840 sq ft
Garage Area:	205 sq ft
Garage Type:	Attached
Garage Bays:	1
Foundation Types:	Basement - * $245.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $245.00 Slab Walkout Basement - * $490.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x4 2x6 - * $245.00
House Width:	48'0"
House Depth:	42'0"
Number of Stories:	2
Bedrooms:	3
Full Baths:	2
Half Baths:	1
Max Ridge Height:	28'8" from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Unknown
Porch:	93 sq ft
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• 2nd Floor Balcony
• Dropzone
• Entertaining Space
• Front Porch
• Open Floor Plan
• Pantry
• Storage Space

Traditional Style Duplex with Single-Family Home Amenities!

Here’s a duplex/twin design that offers amenities typically seen only in much larger homes. Coming in from the garage, the drop zone is great for holding items that would otherwise clutter your kitchen counters and island. Additionally, the drop zone is perfect for your “catch-all” drawer with the tape, flashlights, scissors, glue, etc. There’s a walk-in pantry with base cabinet and countertop at one end, and a pocket office/planning center or added storage just off the kitchen. A second kitchen layout with angled peninsula is also included. Your washer and dryer are upstairs with the bedrooms, minimizing steps with a laundry basket. Bedroom closets and linen was prioritized, and there’s even a modest loft area for study or crafts.

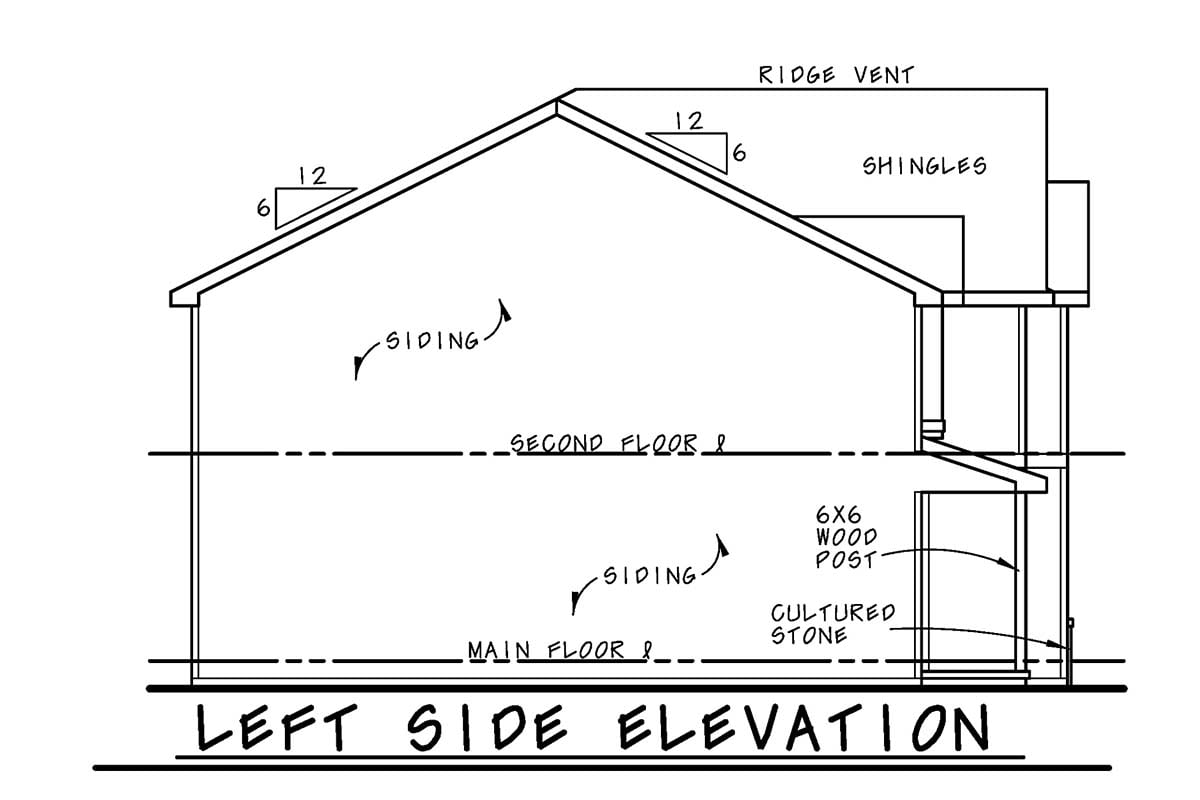

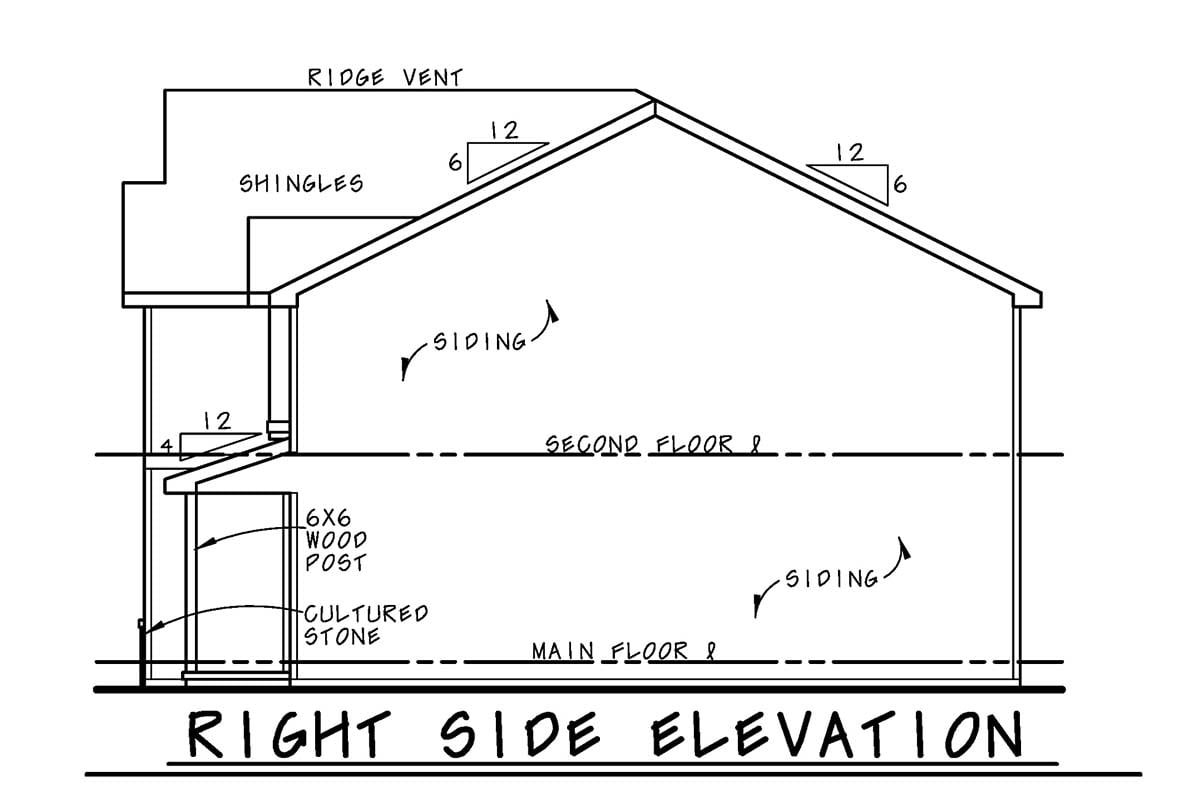

Cover Page
Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.

Foundation
Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the structural information, steel beam and pole locations and the direction and spacing of the floor system above. Optional basement, slab and crawl space foundations are available.

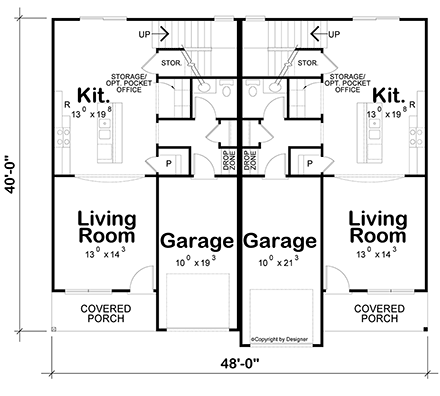

Main Level Floor Plan
1/4" scale. Fully dimensioned from stud to stud for ease of framing. 2"x4" walls are standard. The detailed drawings include such things as structural header locations, framing layout and kitchen layout

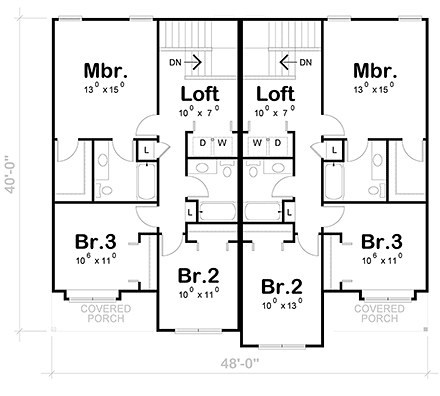

Second Level Floor Plan.
1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.

Electrical and Sections
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan.
Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.
