Prices subject to approval prior to fulfillment.Specifications
| Bonus Area: | 1080 sq ft |
| Garage Area: | 1800 sq ft |
| Garage Type: | Detached |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 40'0" |
| House Depth: | 45'0" |
| Number of Stories: | 2 |
| Half Baths: | 1 |
| Max Ridge Height: | 23'9" from Front Door Floor Level |
| Primary Roof Pitch: | 6:12 |
| Roof Load: | 10 psf |
| Roof Framing: | Truss |
| Main Ceiling Height: | 10' |
What's Included?
a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE
Plans are sent in AutoCAD 2000 format
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.

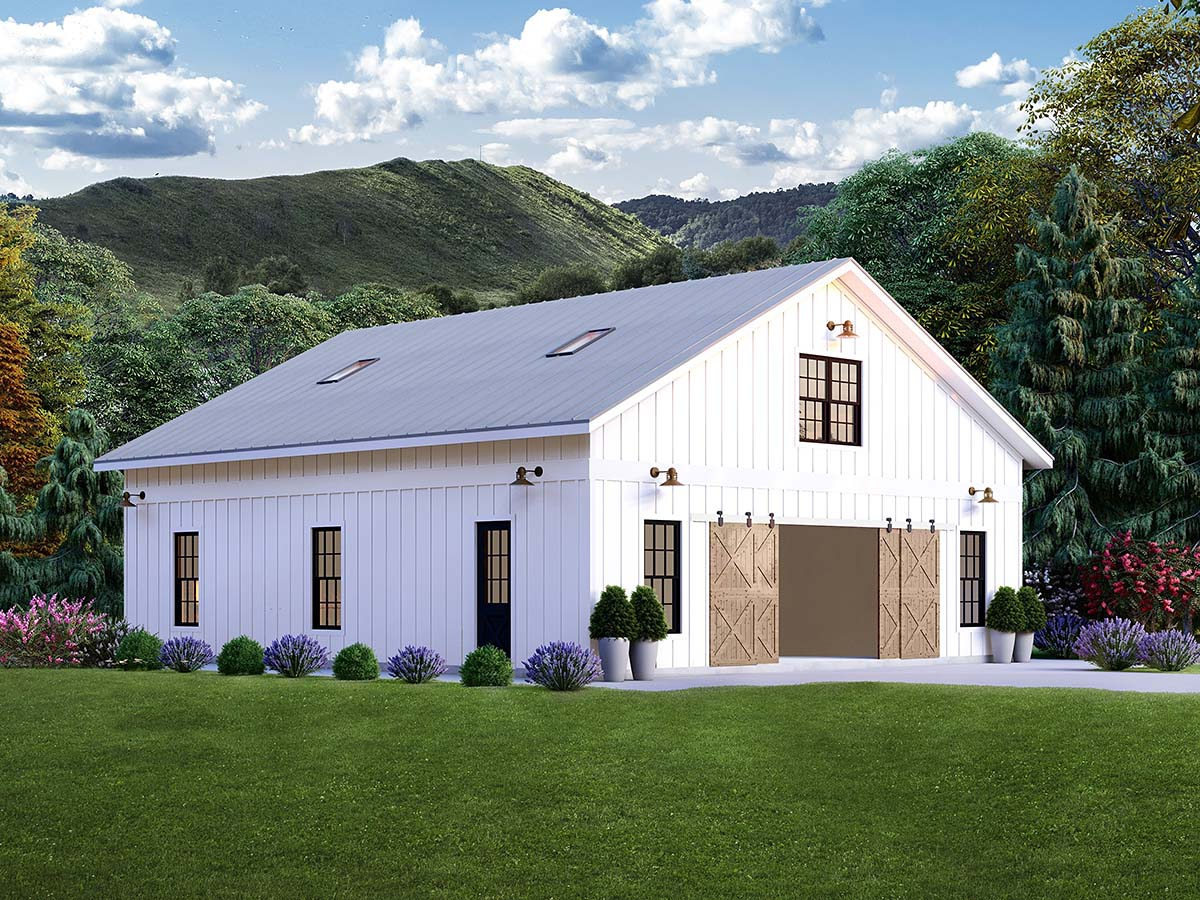

Photographs may show modified designs.

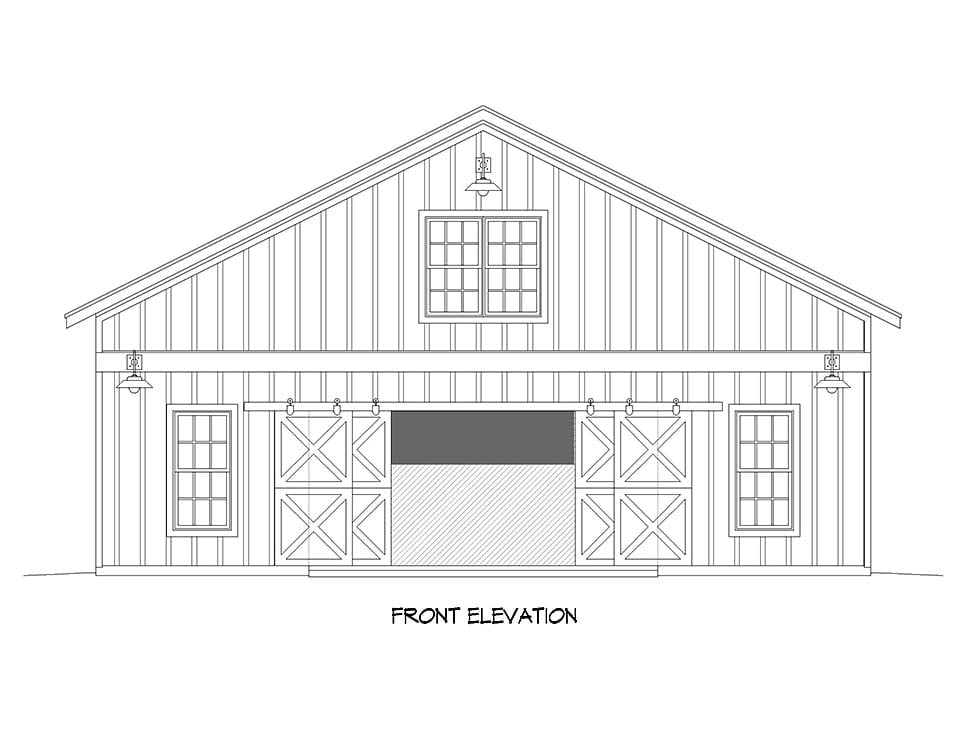

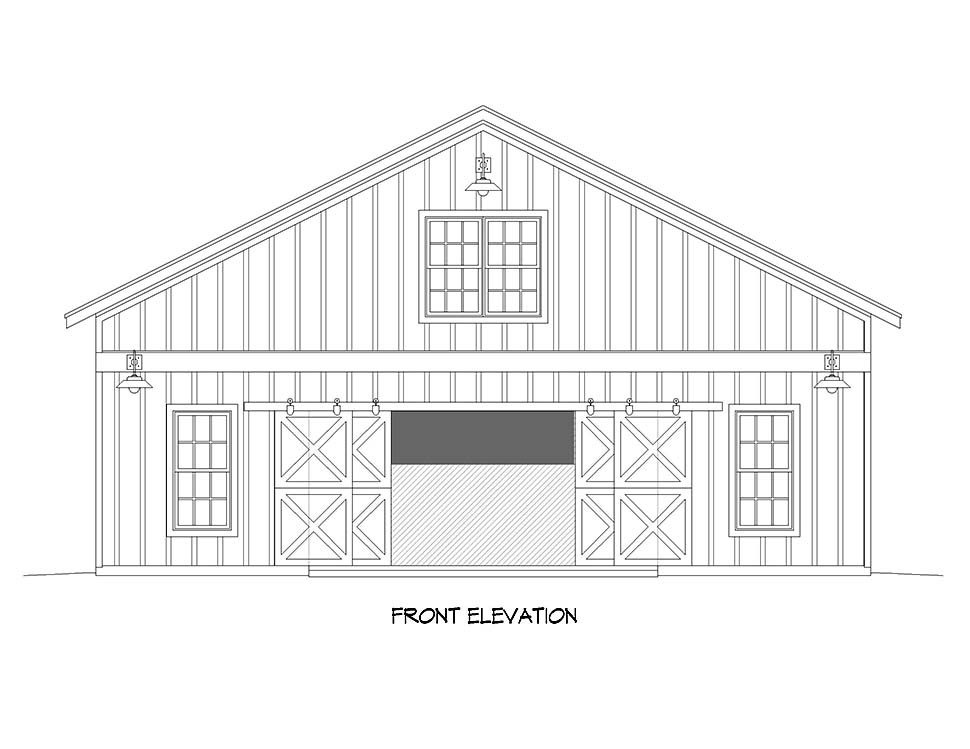

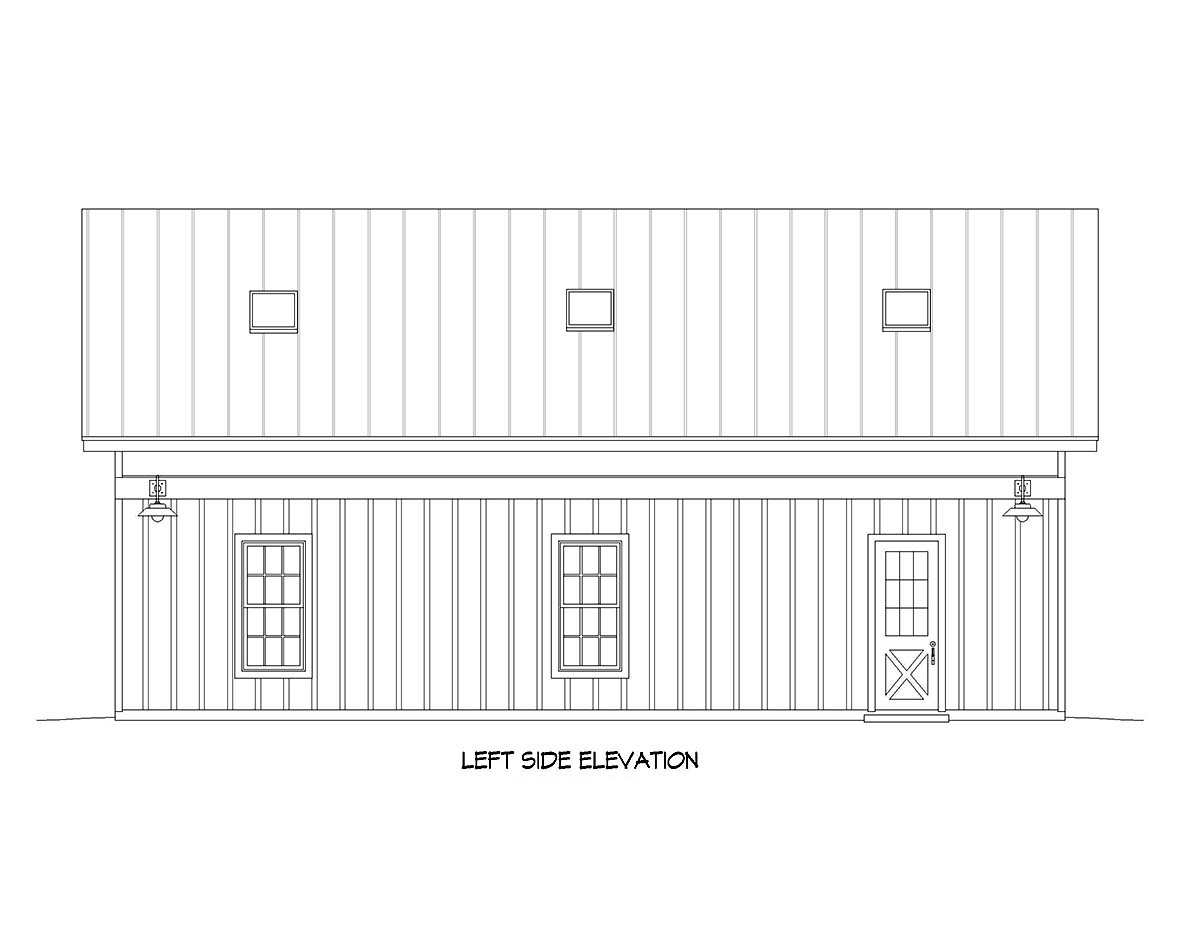

Elevation

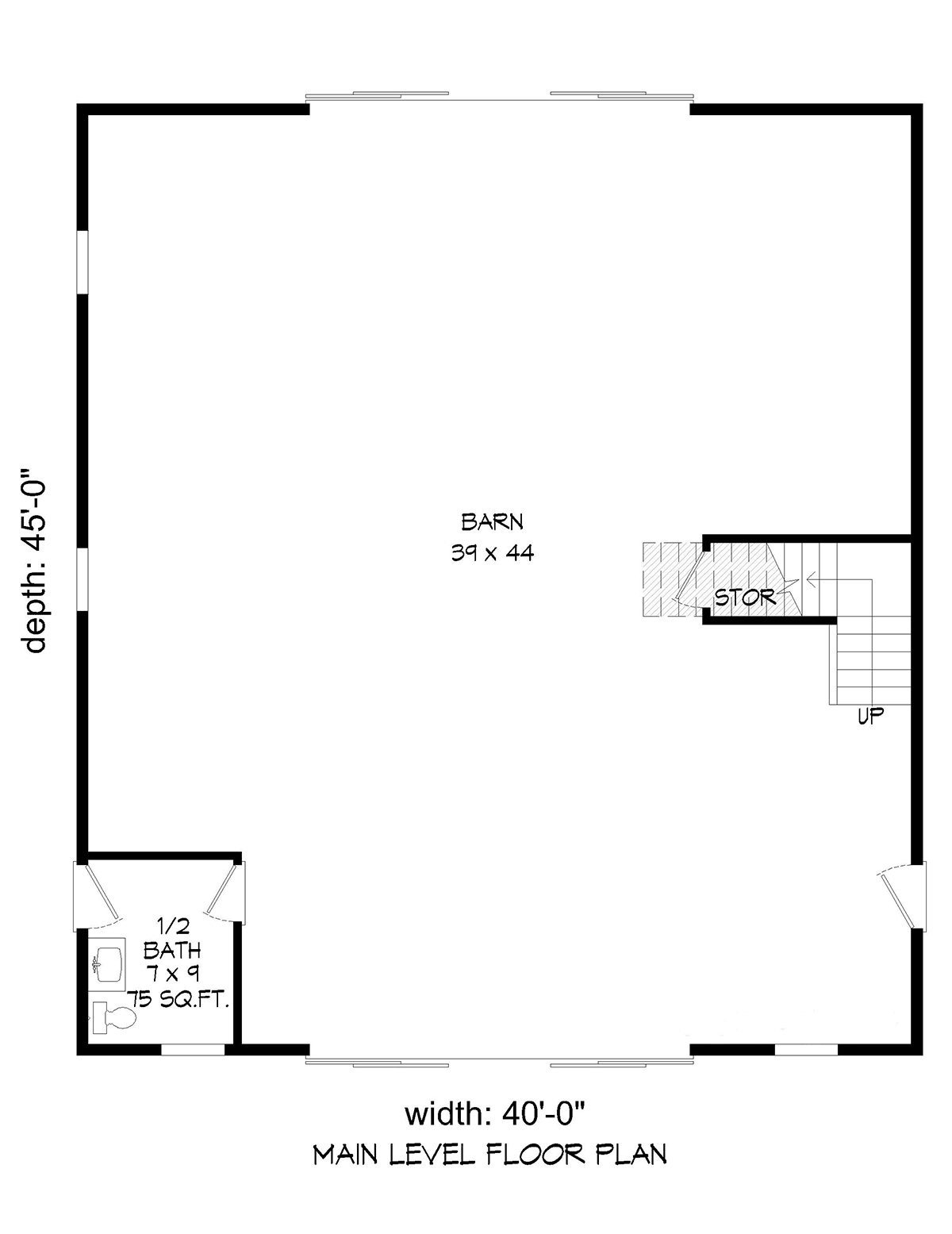

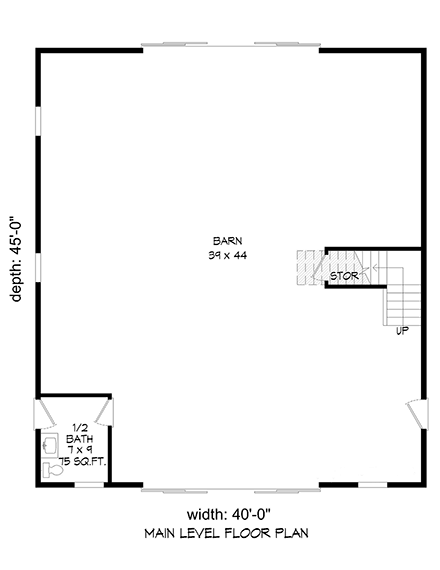

Level One

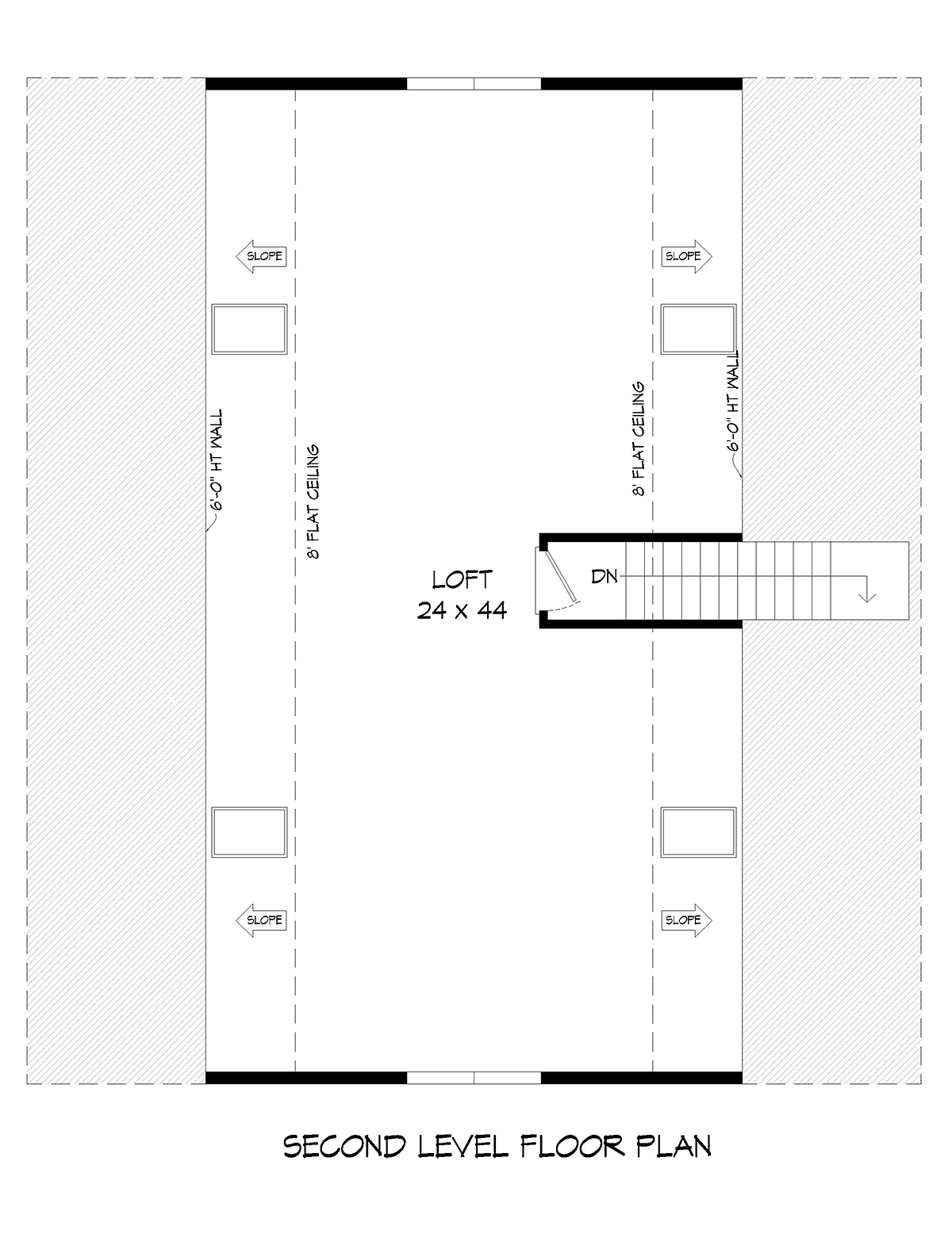

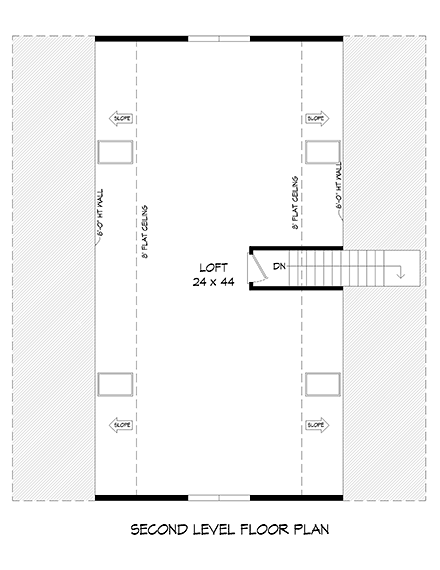

Level Two
Quick Specs
1080 Bonus Area40'0" W x 45'0" D
Quick Specs
1080 Bonus Area40'0" W x 45'0" D
Pricing
PDF File: $2,163.005 Sets: $2,268.00
5 Sets plus PDF File: $2,373.00
CAD File: $2,583.00
more info

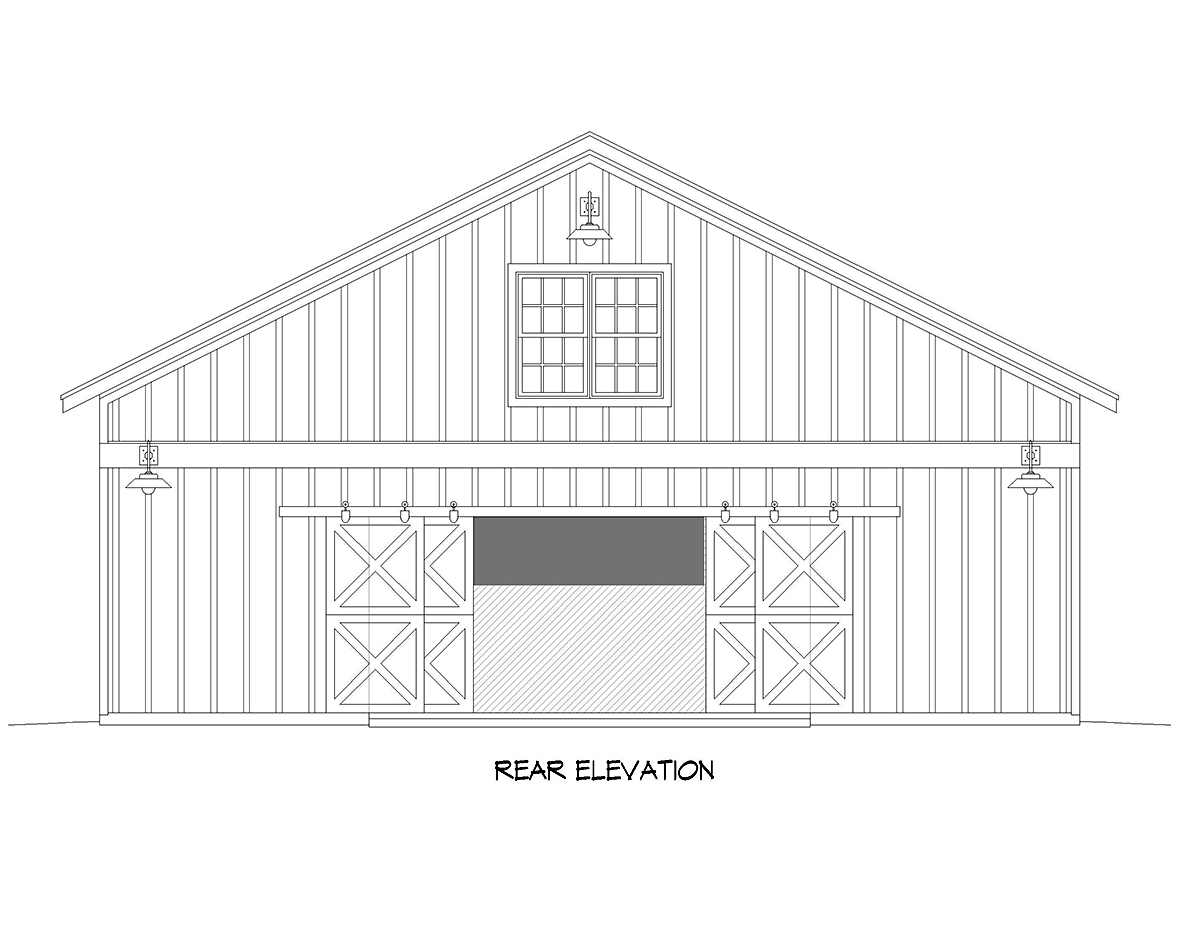

Rear Elevation
