Multi-Family Plan 81862

• PDF File: $2,725.00
• 3 Sets: $2,860.00
• CAD File: $4,225.00
  Single Build License issued on CAD File orders.
• Right Reading Reverse: $295.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $65.00

** Please note that a PDF File is included with a 3 Set Order**



**All plans by this designer are being updated to IRC 2015 starting on March 13, 2023. This plan may be delayed by 4 business days before shipping.**

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $520.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $520.00
  May require additional drawing time, please call to confirm before ordering.
• Stem Wall Slab : $520.00
  May require additional drawing time, please call to confirm before ordering.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	4839 sq ft

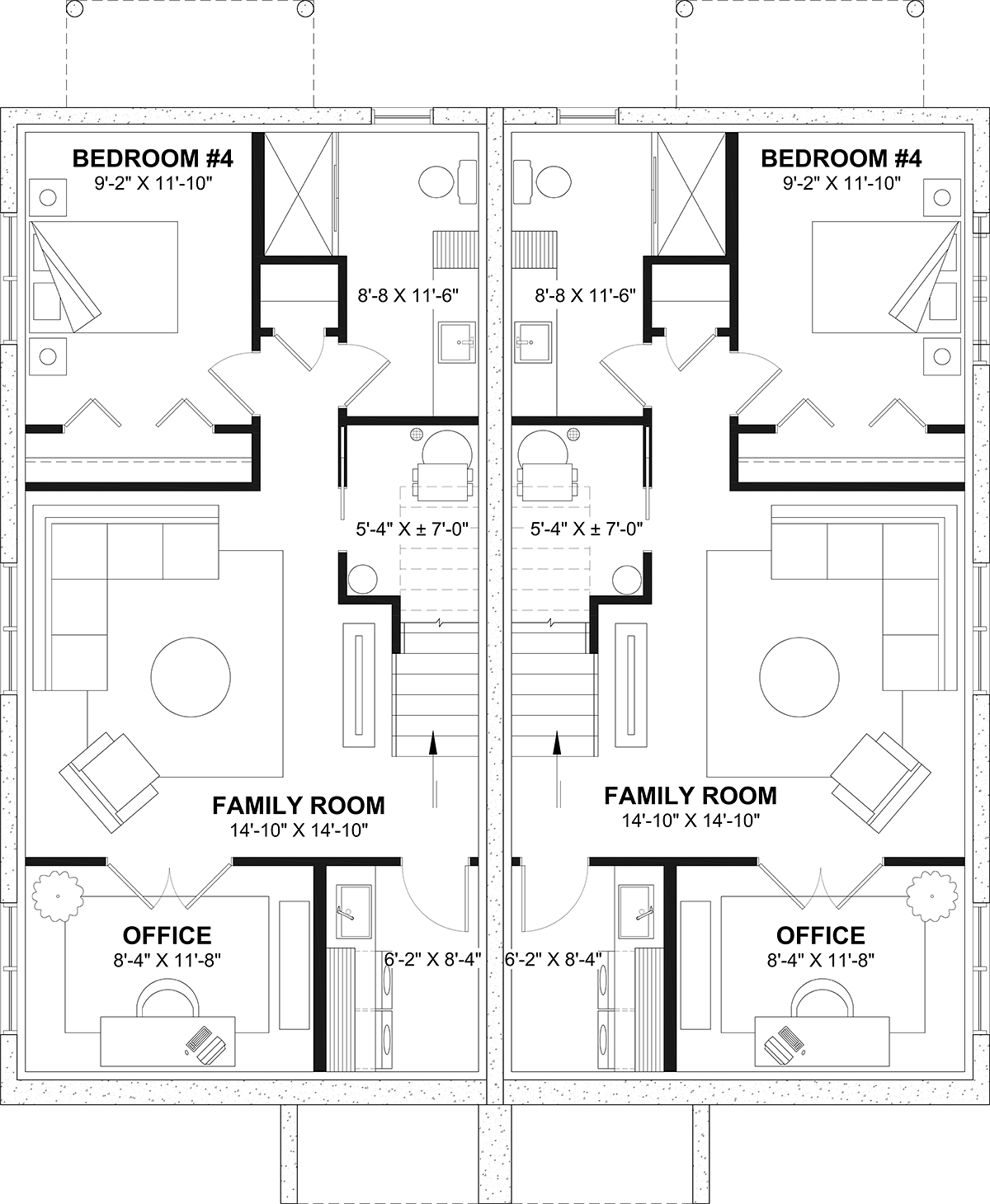

Lower Living Area:	1613 sq ft

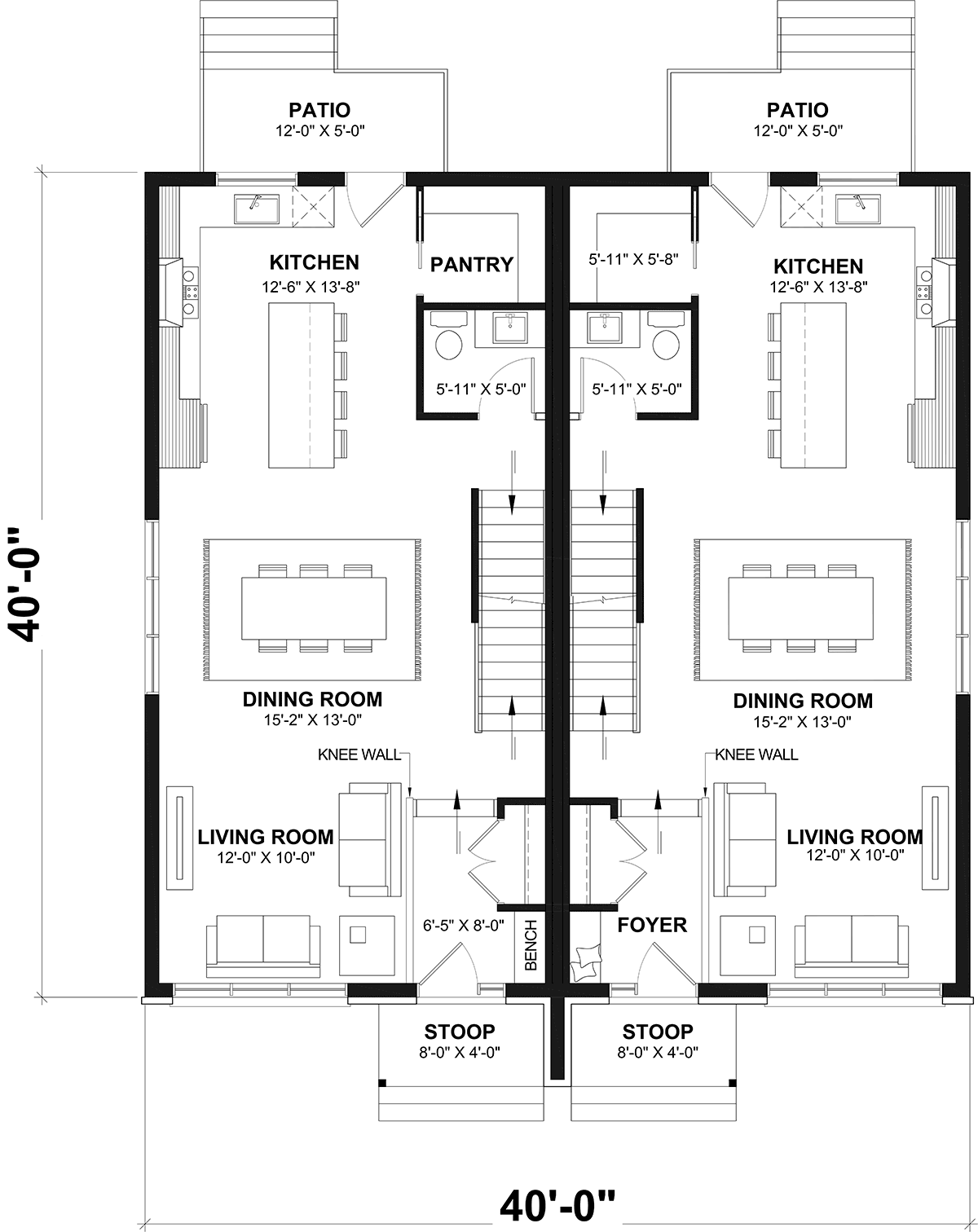

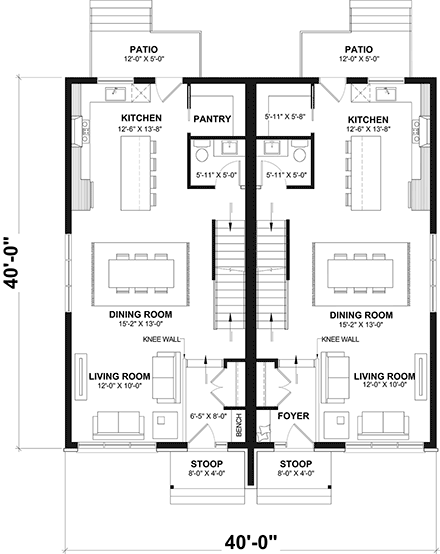

Main Living Area:	1613 sq ft

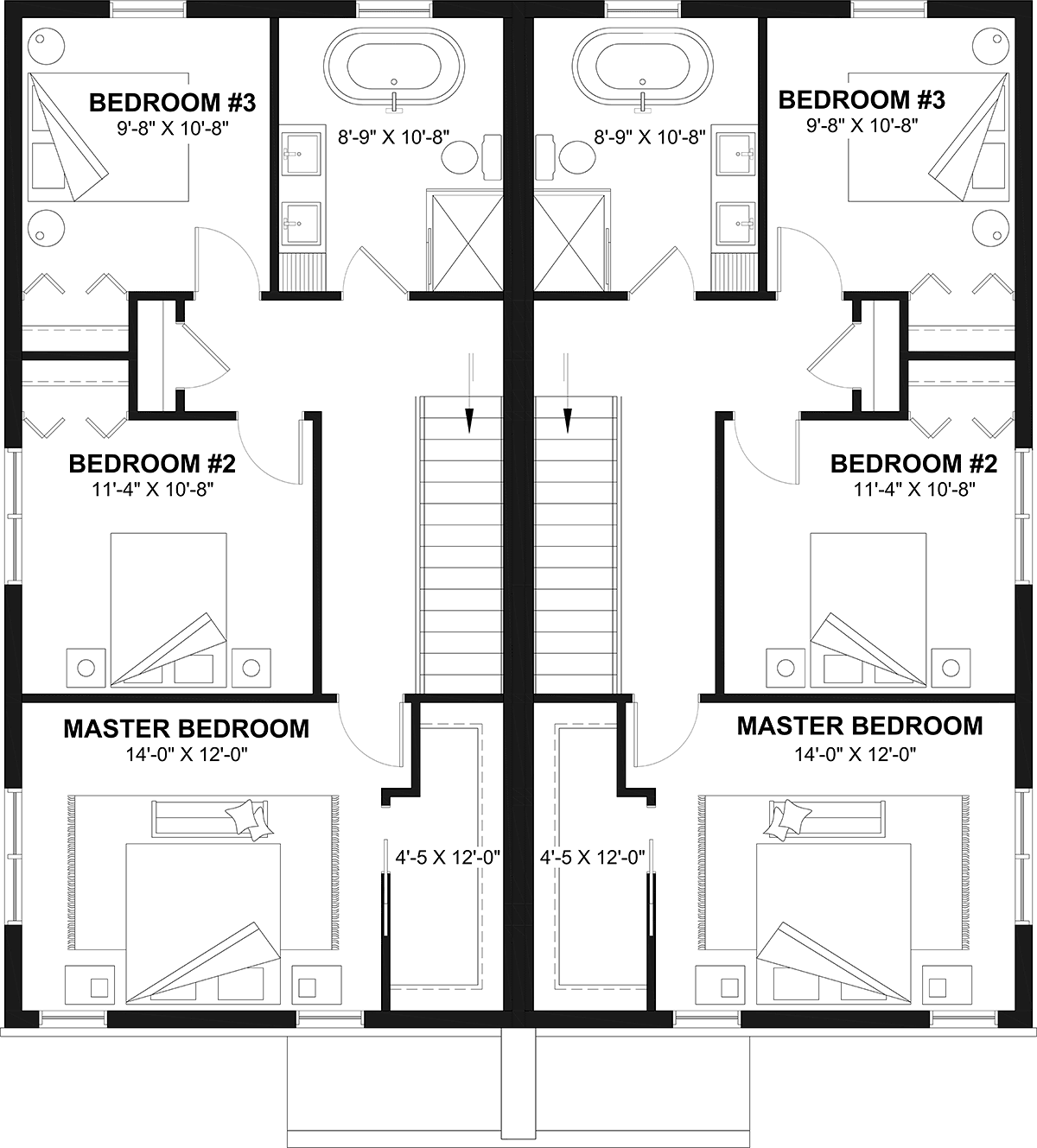

Upper Living Area:	1613 sq ft
Garage Type:	None
Foundation Types:	Basement Crawlspace - * $520.00 Slab - * $520.00 Stem Wall Slab - * $520.00
Exterior Walls:	2x6
House Width:	40'0"
House Depth:	40'4"
Number of Stories:	3
Bedrooms:	8
Full Baths:	4
Half Baths:	2
Max Ridge Height:	29'6" from Front Door Floor Level
Primary Roof Pitch:	0
Roof Load:	55 psf
Roof Framing:	Unknown
Porch:	64 sq ft
Main Ceiling Height:	8'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Coat Closet
• Deck or Patio
• Dropzone
• Entertaining Space
• Office
• Open Floor Plan
• Pantry
• Storage Space

Contemporary Style Semi-detached Home or Single Family Duplex with Finished Basement

This new contemporary semi-detached house, will delight families with 2+ children.

It offers a total living area of approx. 2420 sq.ft. arranged on 3 floors, for each unit. In addition, the 2 units are "mirror" replicas, therefore offering the same spaces, but reversed.

All our house plans include:

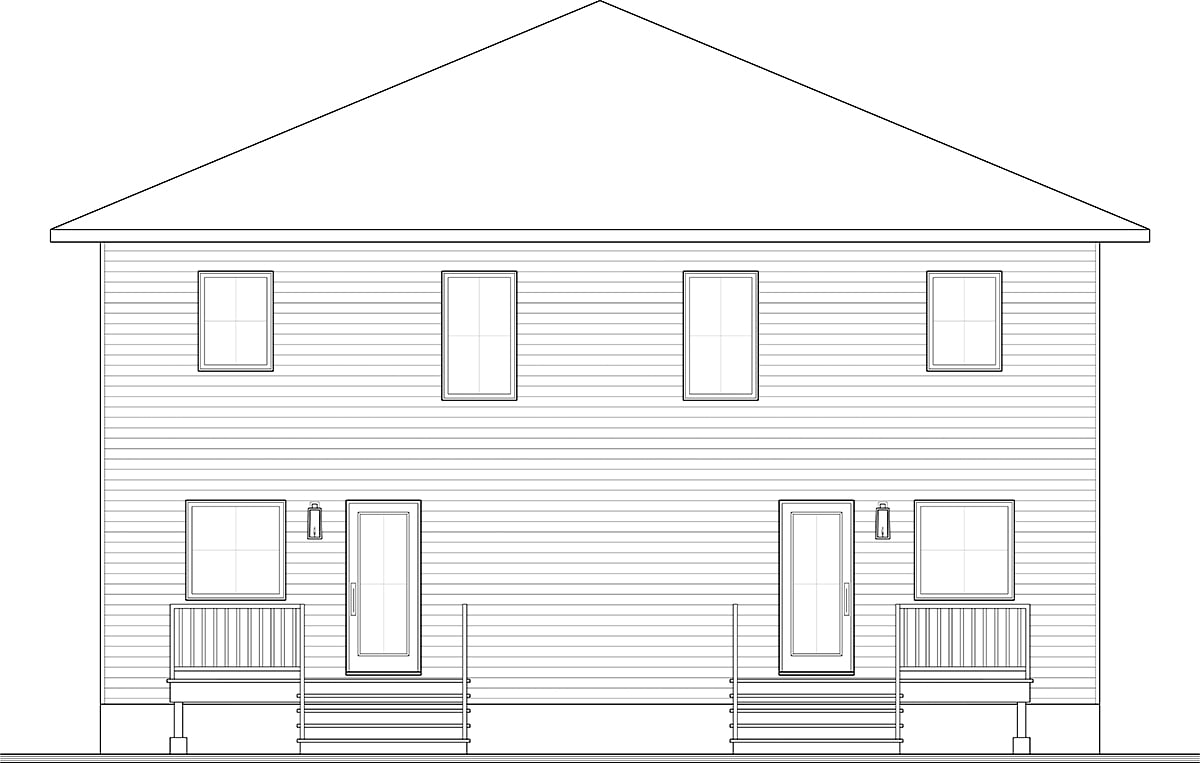

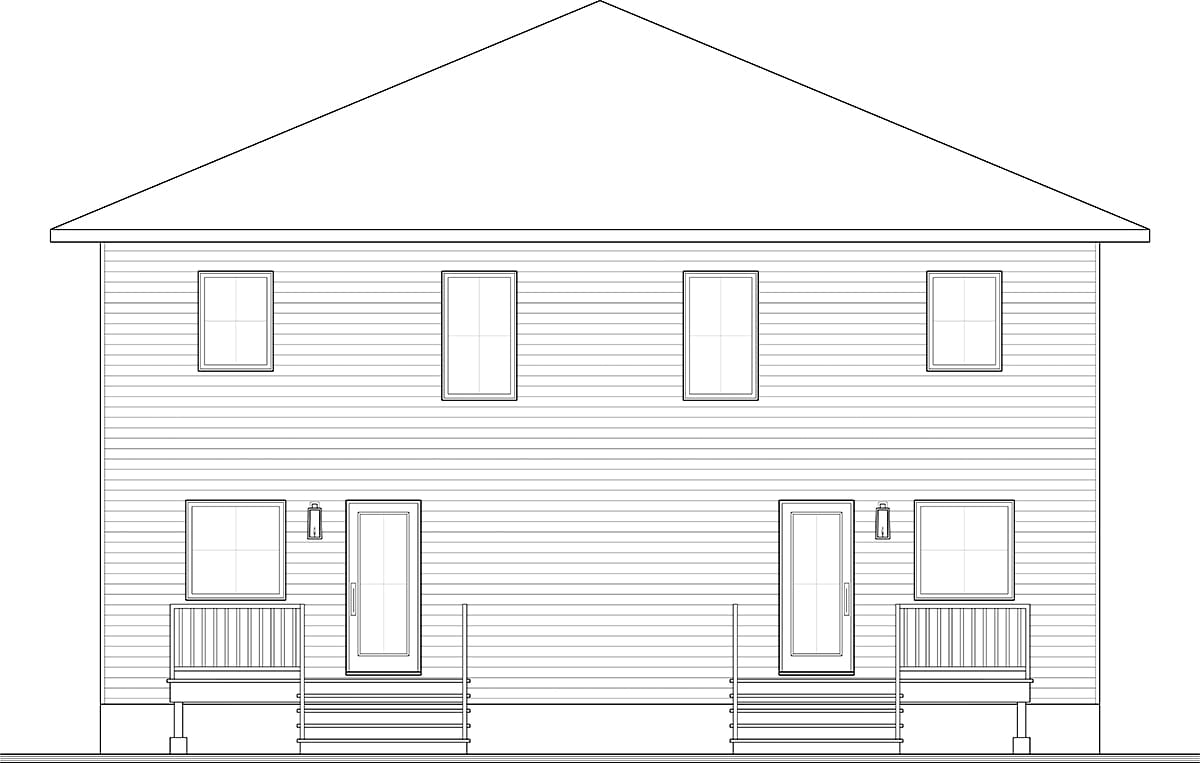

-4 elevations
-Foundation plan
-Ground floor plan
-Upper floor plan (if applicable)
-Roof plan
-Truss diagrams and building sections (manufactured trusses required – no structural details included)
-Construction details
-Typical wall section

NOT included:

-Engineering
-HVAC (Heating, ventilation and air conditioning)
-Electrical and plumbing plans

What's included in our house plans detail

BCIN # for Ontario customers is available at an additional charge

-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $200 charge for BCIN
  If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the FamilyHomePlans.com Modification Department.

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
