Multi-Family Plan 82147

• PDF File: $2,050.00
• 5 Sets: $2,150.00
• 5 Sets plus PDF File: $2,400.00
• PDF File Unlimited Build: $2,750.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File Unlimited Build: $4,100.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Right Reading Reverse: $299.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $80.00

Additional Notes

Porches:235
Unit I Basement:2009
Unit I Total:6463
Unit I Bonus Room:412
Unit II Heat/Cooled:2232
Unit II Garage/Storage:455
Unit II Porches:216
Unit II Basement:2232
Unit II Total:5135
Unit II Bonus Room:514
Unit III Heat/Cooled:2213
Unit III Garage/Storage:536
Unit III Porches:319
Unit III Basement:1677
Unit III Total:4745



Orders placed with overnight/2-day shipping may be delayed by two business days due to a review process.

Available Foundation Types:

• Basement : $299.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Slab : No Additional Fee
• Walkout Basement : $299.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $299.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	6507 sq ft
Main Living Area:	6507 sq ft
Bonus Area:	926 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement - * $299.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab Walkout Basement - * $299.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x4 2x6 - * $299.00
House Width:	192'0
House Depth:	81'0
Number of Stories:	1
Bedrooms:	9
Full Baths:	6
Max Ridge Height:	27'0 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Load:	45 psf
Roof Framing:	Unknown
Porch:	299 sq ft
Formal Dining Room:	Yes
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'0
Upper Ceiling Height:	8'0

* May require additional drawing time.

FOUNDATION PLAN Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.

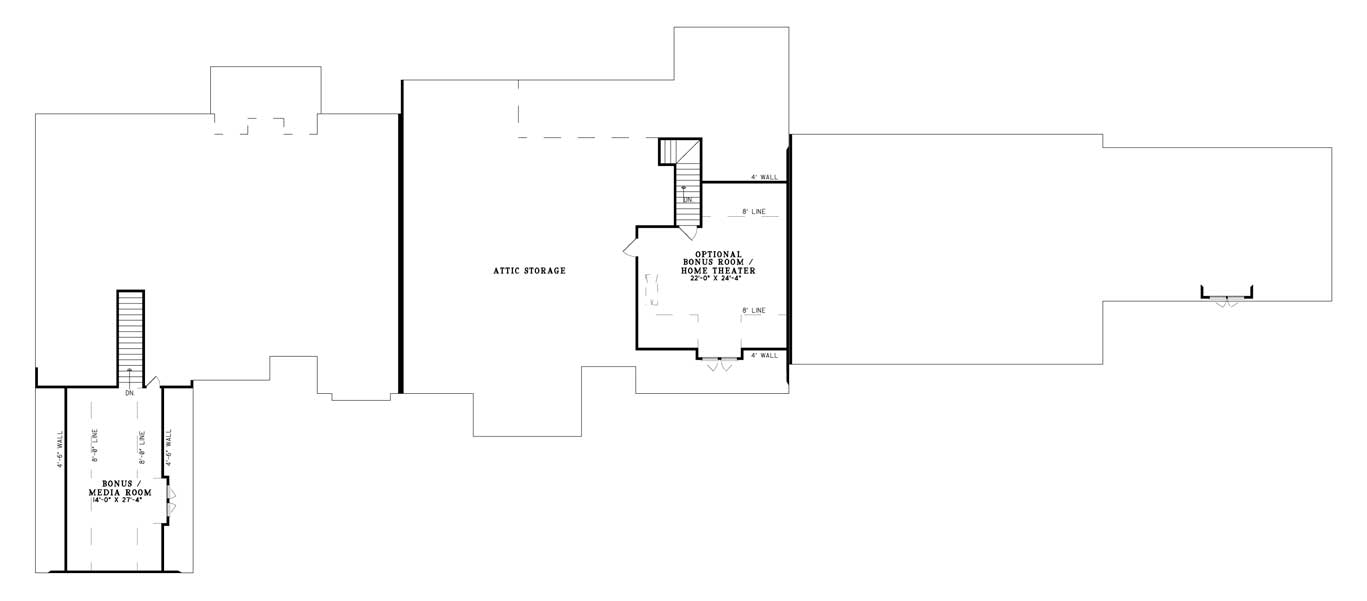

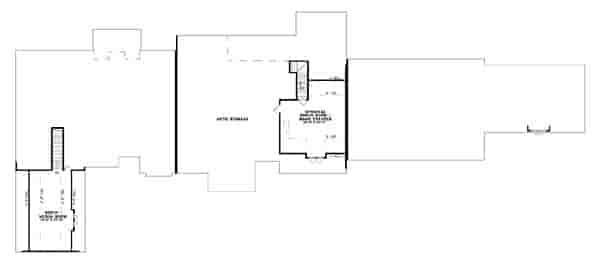

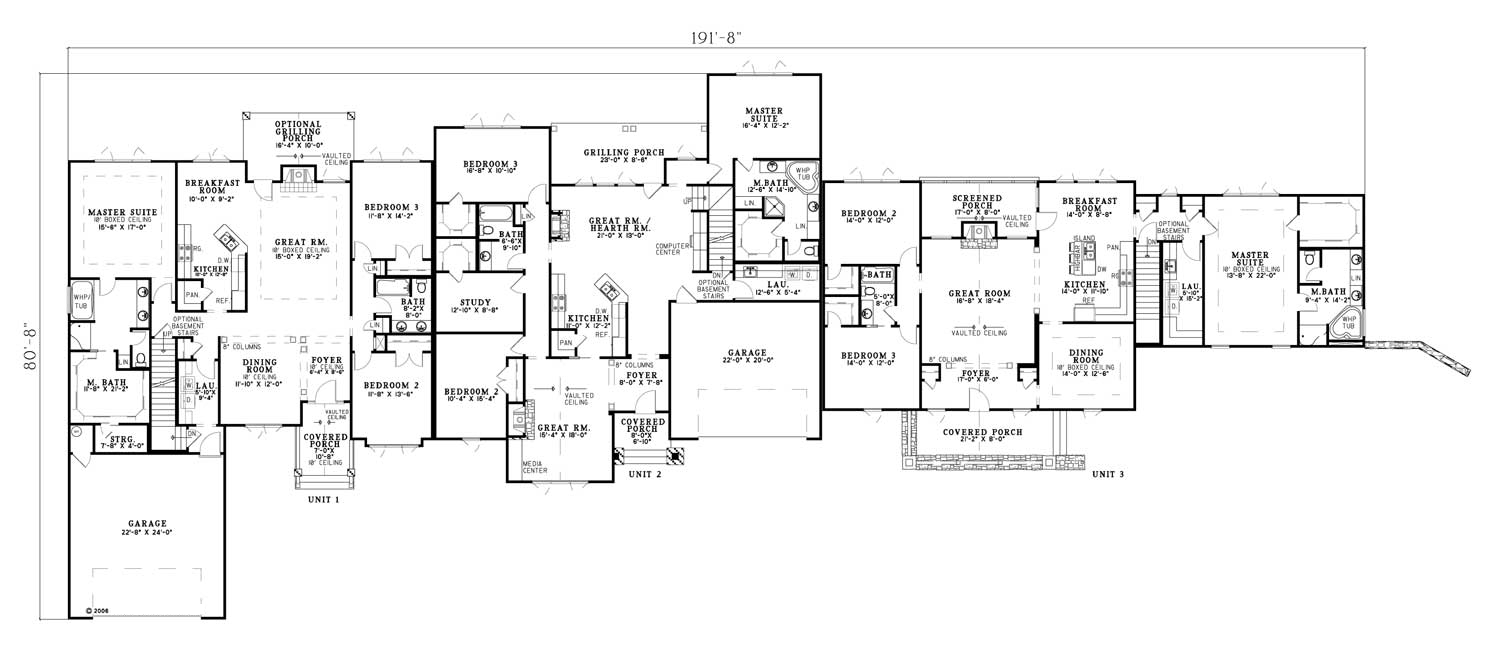

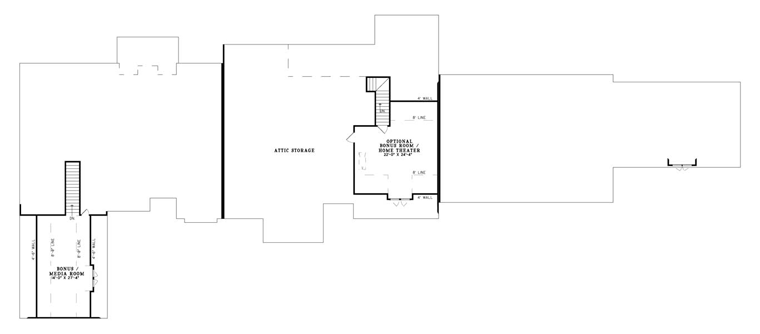

FLOOR PLANS Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout (not available for log homes).

SET OF ELEVATIONS All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.

MISCELLANEOUS DETAILS These are included for many interior and exterior conditions that require more specific information for their construction.

ROOF OVERVIEW PLAN This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ROOF OVERVIEW PLAN This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

SCHEMATIC ELECTRICAL LAYOUT is included unless the plan employs exterior log wall construction.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

We are sorry, but an estimated cost build report is not available for this particular plan.
