Multi-Family Plan 82524

• PDF File: $2,050.00
• 5 Sets: $2,150.00
• 5 Sets plus PDF File: $2,400.00
• PDF File Unlimited Build: $2,750.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File Unlimited Build: $4,100.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Right Reading Reverse: $299.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $75.00

Orders placed with overnight/2-day shipping may be delayed by two business days due to a review process.

Available Foundation Types:

• Basement : $299.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Slab : No Additional Fee
• Walkout Basement : $299.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $299.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1595 sq ft
Main Living Area:	1083 sq ft
Upper Living Area:	512 sq ft
Garage Type:	None
Foundation Types:	Basement - * $299.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab Walkout Basement - * $299.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x4 2x6 - * $299.00
House Width:	69'4
House Depth:	48'6
Number of Stories:	1.5
Bedrooms:	4
Full Baths:	3
Max Ridge Height:	23'0 from Front Door Floor Level
Primary Roof Pitch:	9:12
Roof Load:	45 psf
Roof Framing:	Stick
Porch:	913 sq ft
FirePlace:	Yes
1st Floor Master:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Breezeway
• Entertaining Space
• Front Porch
• Open Floor Plan
• Pantry
• Rear Porch

This charming duplex house plan is the perfect investment opportunity.

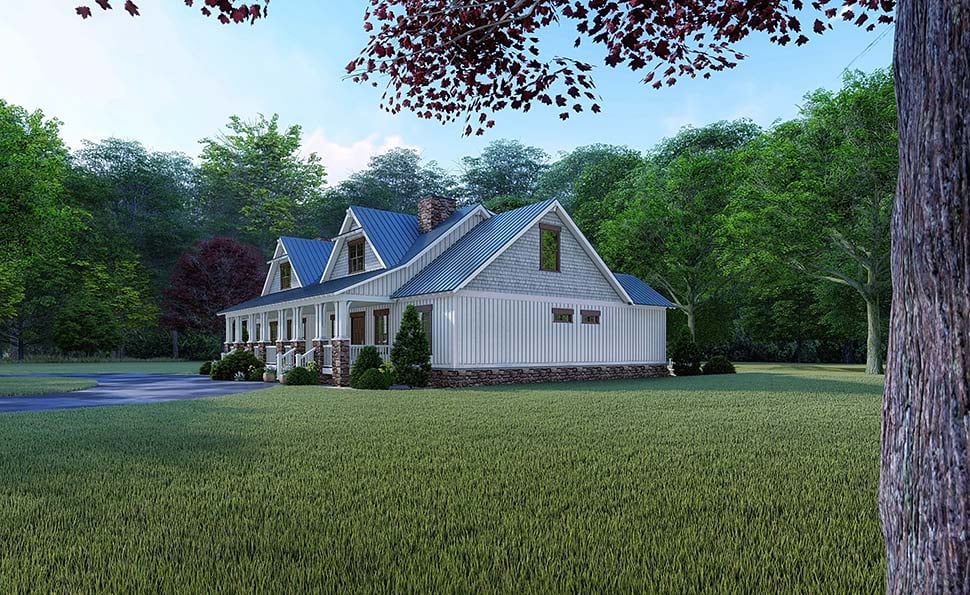

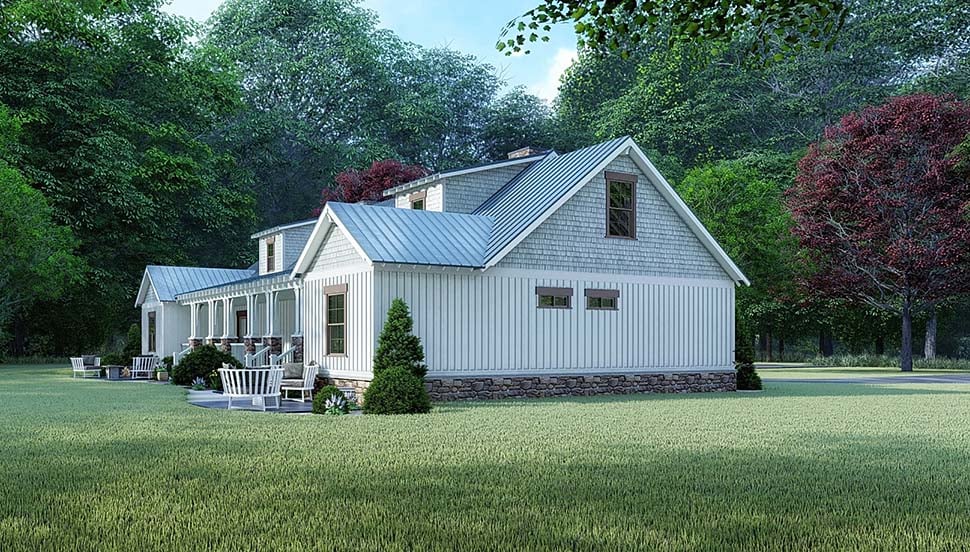

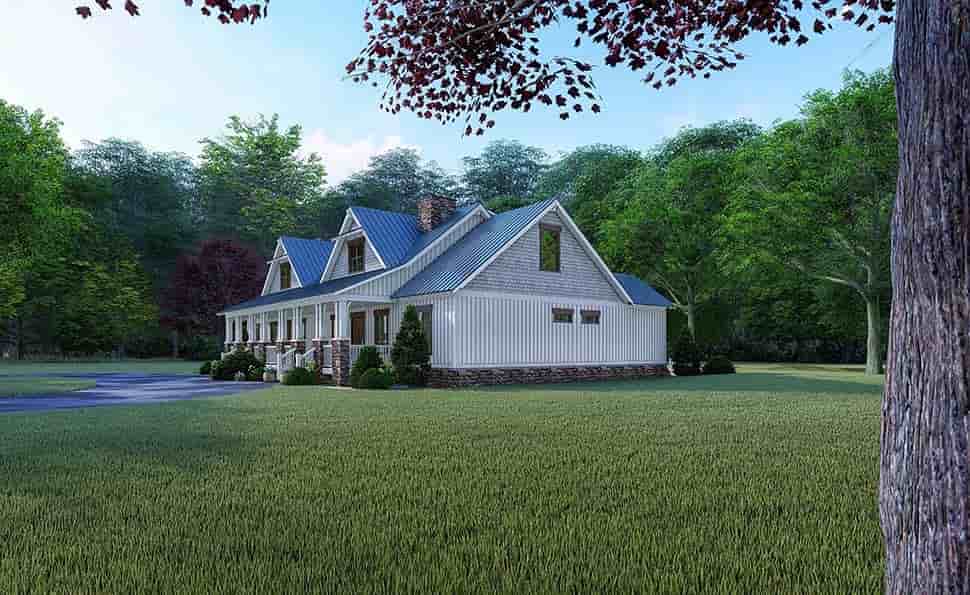

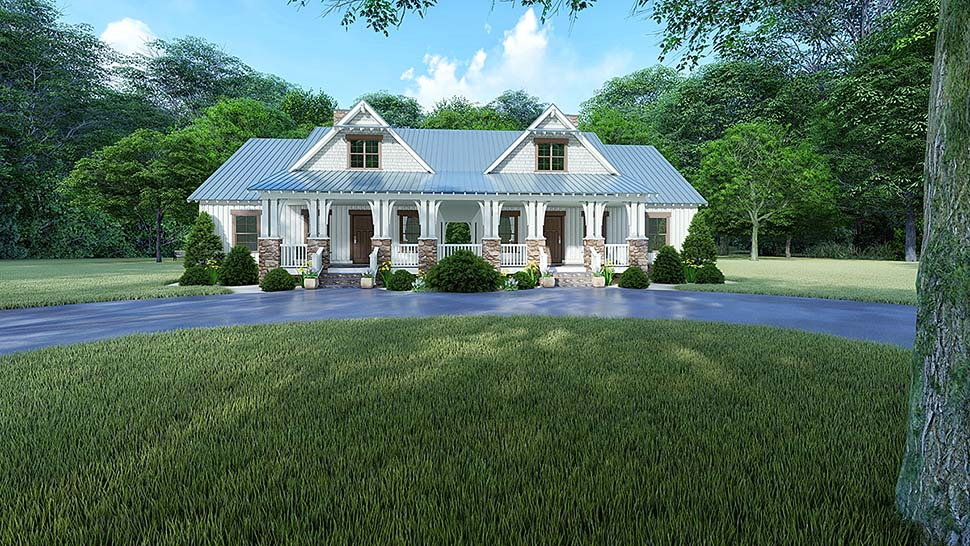

With the welcoming front porch, stone based columns and dormers up above, this duplex plan gives the feel of a single family home. This charming atmosphere and “at-home” feel will appeal to potential tenants who are looking for the perfect rental for their family.
These duplexes are the mirror duplicates of one another and a separated by a 6’ breezeway. This breezeway allows for separation and privacy between the two units. No shared walls between the two unit will also add appeal to this home for renters.

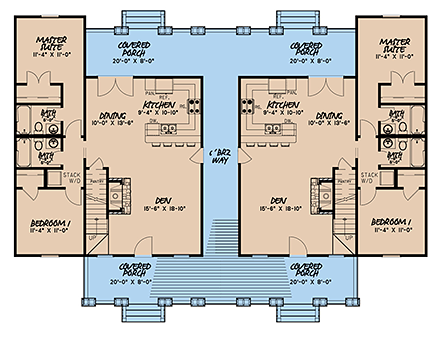

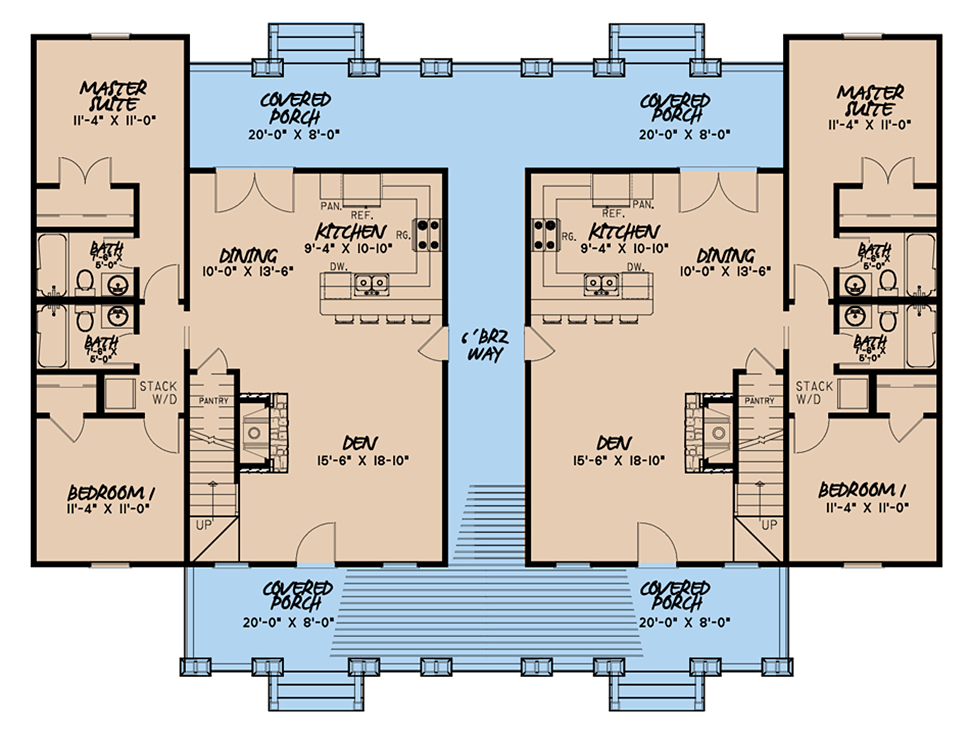

Stepping inside one of the units you will find yourself in the spacious den which features a beautiful fireplace and the stairway to the upper floor. The open floor plan allows the den to flow seamlessly into the kitchen over the peninsula.

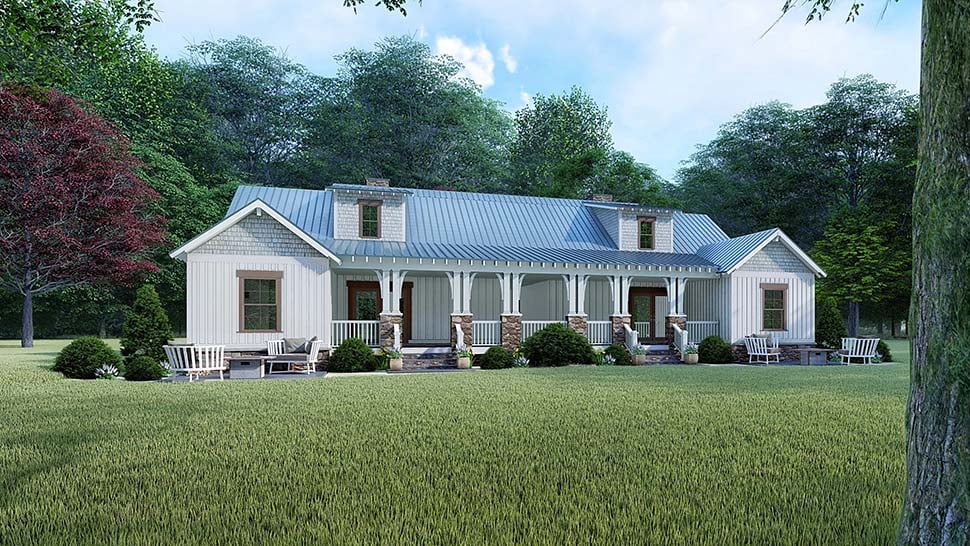

Lots of counter space is available in this kitchen as well as an eat-at bar perfect for quick meals before heading off to school and work. Connected off the side of the kitchen is the open dining space with access to the back covered porch.
On the main floor you will also find the master suite with a private ensuite bath and large closet as well as a hall bath, additional bedroom and the stacked washer and dyer.

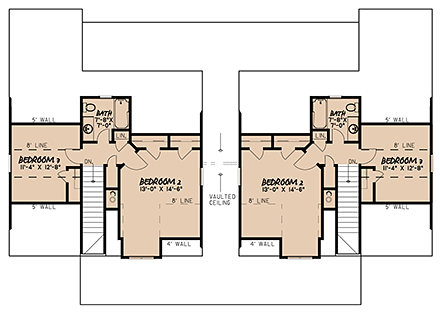

Heading upstairs you will find 2 more bedrooms and a full bath as well as a convenient linen closet.

FOUNDATION PLAN Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.

FLOOR PLANS Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout (not available for log homes).

SET OF ELEVATIONS All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.

MISCELLANEOUS DETAILS These are included for many interior and exterior conditions that require more specific information for their construction.

ROOF OVERVIEW PLAN This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.
