Multi-Family Plan 82946

• PDF File: $2,345.00
• 5 Sets plus PDF File: $2,595.00
• PDF File Unlimited Build: $3,045.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File Unlimited Build: $3,445.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Materials List: $250.00
  Important Notice: Material list only includes materials for the base slab and crawlspace versions. Basement and 2x6 wall options NOT included.
• Right Reading Reverse: $225.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional License Fee: $495.00
  Provides you with one additional license to build (a total of two builds).
• Additional Sets: $100.00

Unlimited License To Build included with CAD file sale.
CAD file sale also includes PDF file. Materials list will NOT reflect any options that have an additional fee because those are modifications. If you buy a materials list, it will only reflect the standard original plan. All of our CAD files are delivered in .DWG format and do not contain any type of 3D capability. Files are delivered in 2004 format so that older software versions will be able to open the files.

\

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $325.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	4743 sq ft
Main Living Area:	1983 sq ft
Upper Living Area:	2760 sq ft
Garage Area:	972 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x4 2x6 - * $325.00
House Width:	88'6
House Depth:	37'6
Number of Stories:	2
Bedrooms:	9
Full Baths:	6
Half Baths:	3
Max Ridge Height:	29'6 from Front Door Floor Level
Primary Roof Pitch:	7:12
Roof Load:	30 psf
Roof Framing:	Stick
Porch:	255 sq ft
FirePlace:	Yes
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Deck or Patio
• Entertaining Space
• Front Porch
• Mudroom
• Open Floor Plan
• Pantry
• Storage Space

Traditional Style Multi-Family Triplex Plan

Build Traditional Style Multi-Family Triplex Plan with oversized one car garages. In each of the 3 units, the 1st floor features an open kitchen and living room with pantry and island. The garage entry hall has lockers and a half bath. Upstairs, we find all 3 bedrooms, 2 baths, a loft, a dedicated laundry space, walk-in closets in each guest bedroom, and ample storage available off the hall. The main suite features dual vanities & a walk-in closet. Overall, the building is 4,743 SF living area.

Cover Sheet – May include index, front view of home, definitions, etc.

Foundation Plan – Typically includes dimensioned foundation plan with footing details.

Dimensioned Floor Plan – Electrical may be shown.

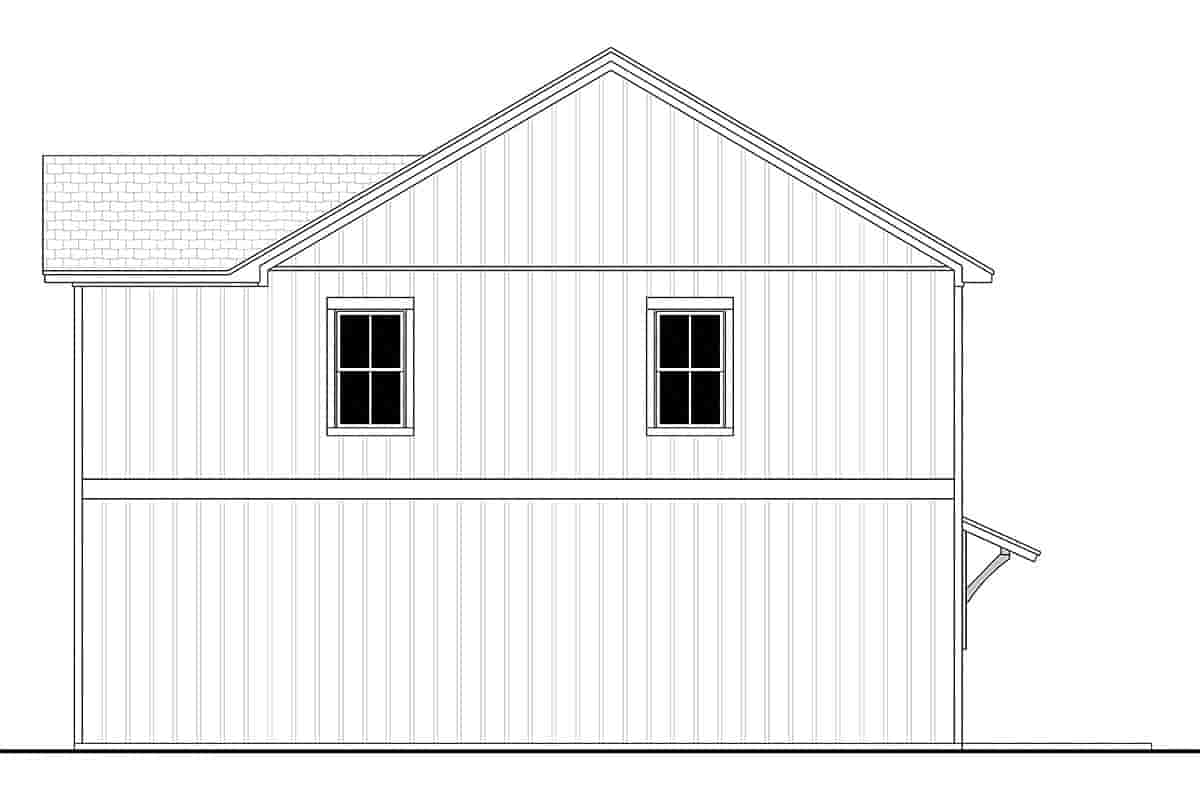

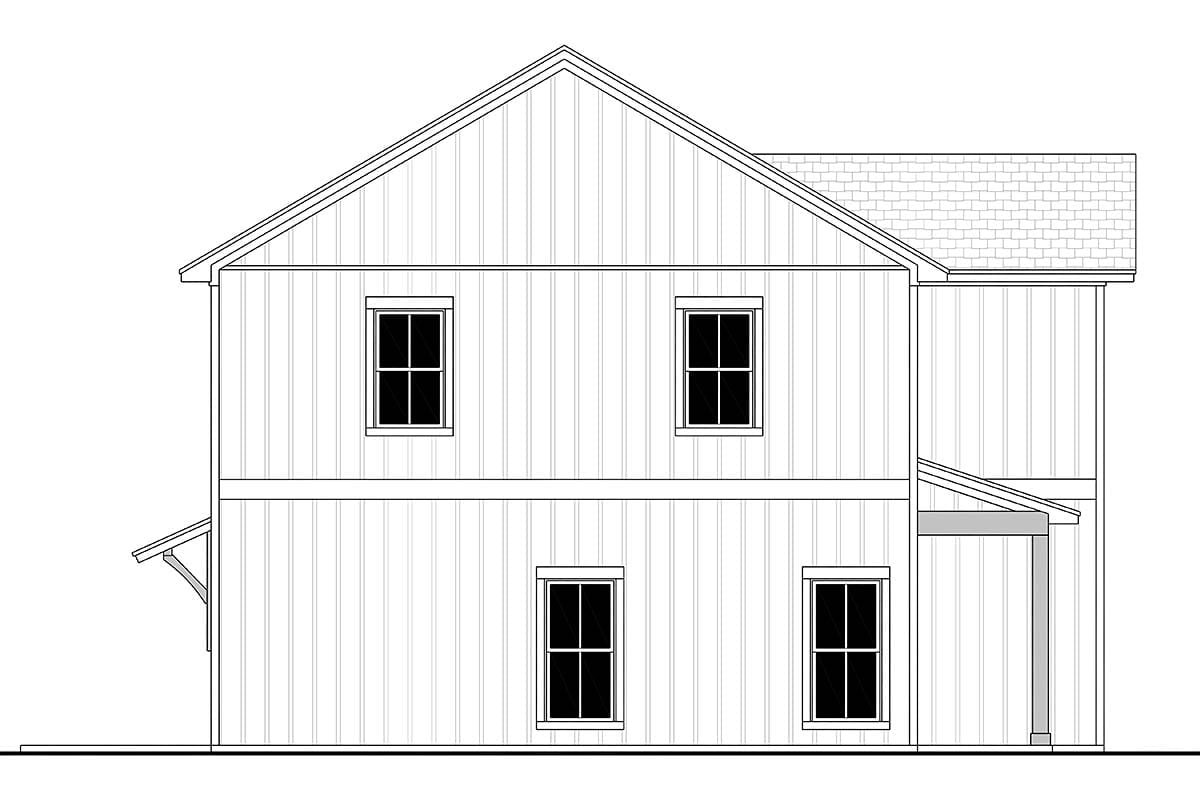

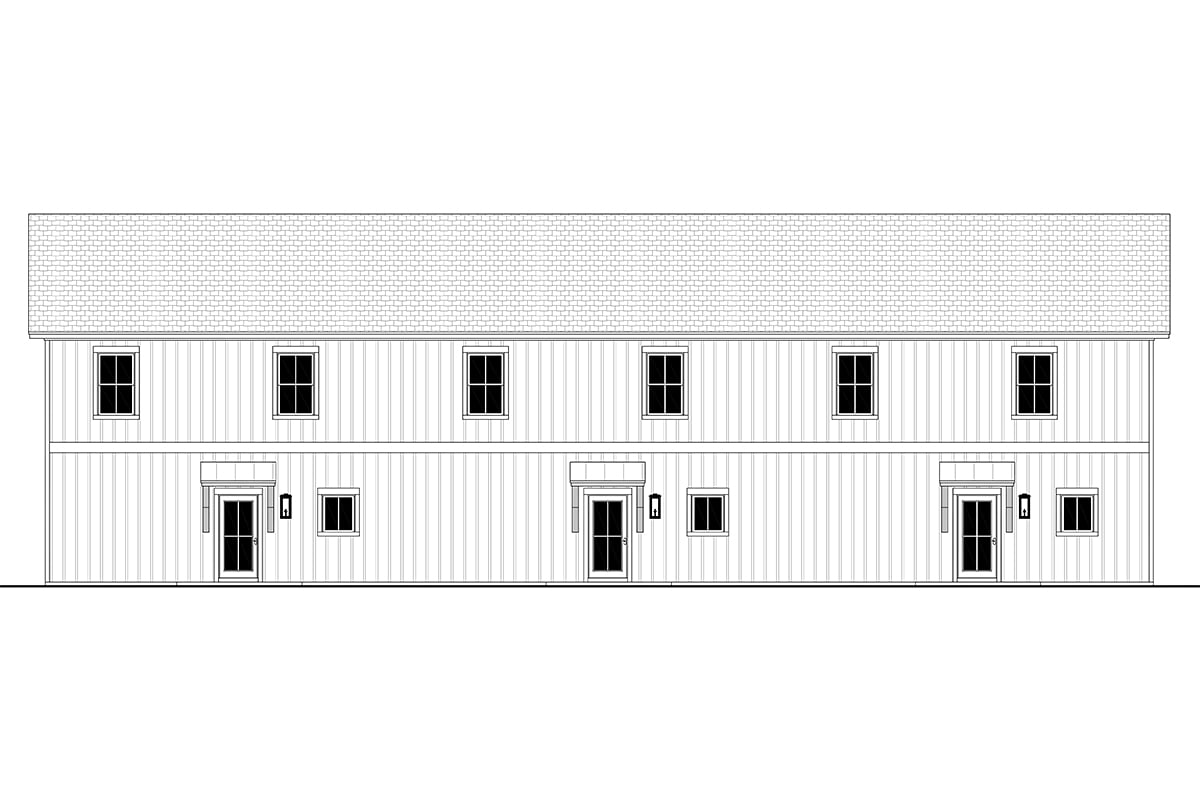

Exterior Views – Four exterior views of the residence with other miscellaneous details.

Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.

Electrical Plan – Displays lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan. Switches are NOT shown and should be located by contractor at site.

Wall Section(s) – Detail of wall materials and assembly.

Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.

Cabinet Elevations – Displays interior kitchen cabinet views.

ITEMS NOT INCLUDED

Mechanical Plans - Because of varying site conditions, mechanical plans such as plumbing and HVAC plans are not included. These items are easily obtained by your mechanical contractor or material supplier.

Site Plans – If required, this information must be obtained locally to include the information specific to your individual property.

Structural Calculations – In certain areas, particularly those in earthquake and hurricane zones, permit departments may require you to submit structural calculations for your particular conditions. When required, you should consult with a local structural engineer.

Receive a FREE modification estimate.

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. We believe that modification estimates should be FREE!

We provide a modification service so that you can customize your new home plan to fit your budget and lifestyle.

Email Designer This is the best and quickest way to get a modification quote!

Please include your preferred Foundation Type and a Specific List of Changes. You can also attach a Sketch of Changes.

It's as simple as that!

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.
