Garage-Living Plan 83336

• PDF File: $1,100.00
• CAD File: $1,800.00
  Single Build License issued on CAD File orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $250.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1025 sq ft
Upper Living Area:	1025 sq ft
Garage Area:	1080 sq ft
Garage Type:	Detached
Garage Bays:	4
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	30'0
House Depth:	36'0
Number of Stories:	2
Bedrooms:	2
Full Baths:	1
Half Baths:	1
Max Ridge Height:	21'11 from Front Door Floor Level
Primary Roof Pitch:	4.5:12
Roof Framing:	Truss
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'2
Upper Ceiling Height:	8'1

Special Features:

• 2nd Floor Balcony
• Computer Nook
• Deck or Patio
• Open Floor Plan
• Pantry
• Storage Space

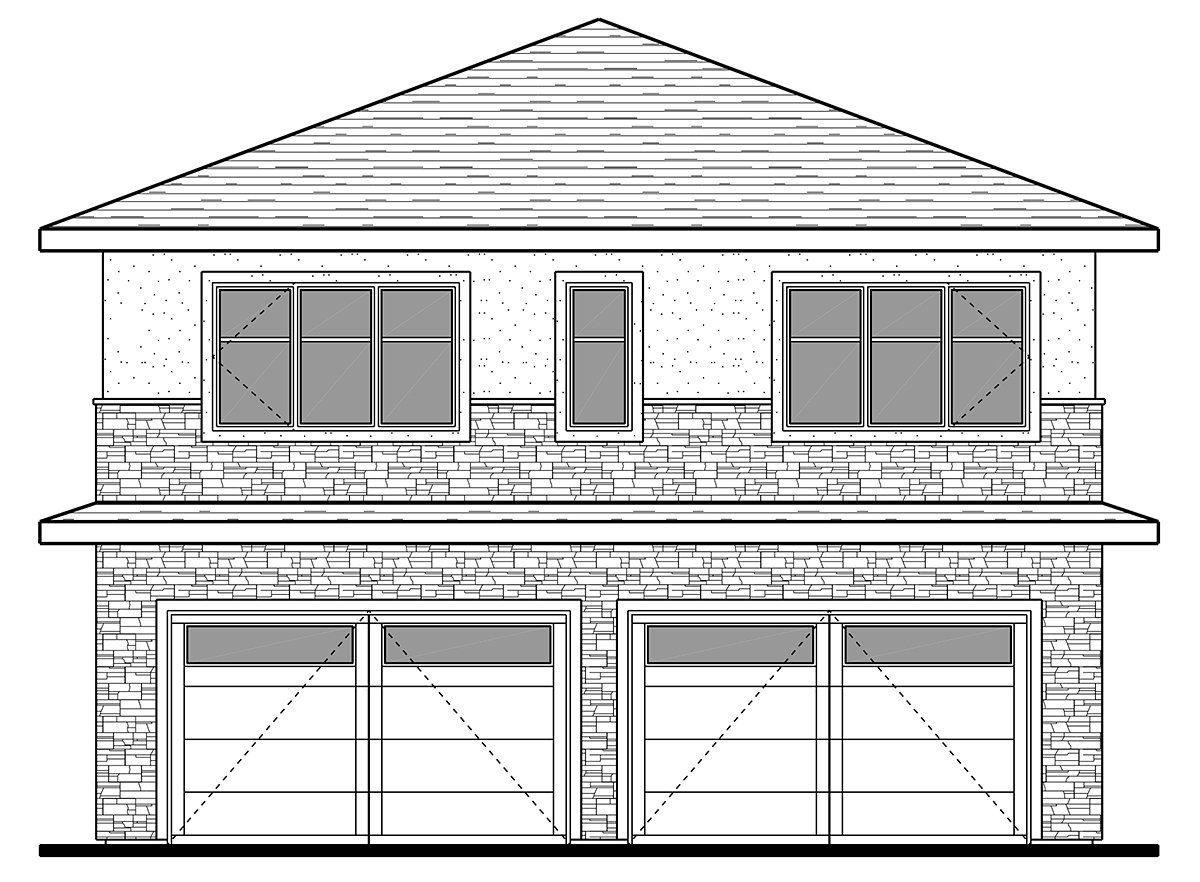

Exterior elevations - Elevations will be produced of all four sides of the home showing all exterior finishes, window and door details, lot grading, deck locations, etc. Additional elevations and details may be required on a per plan basis.

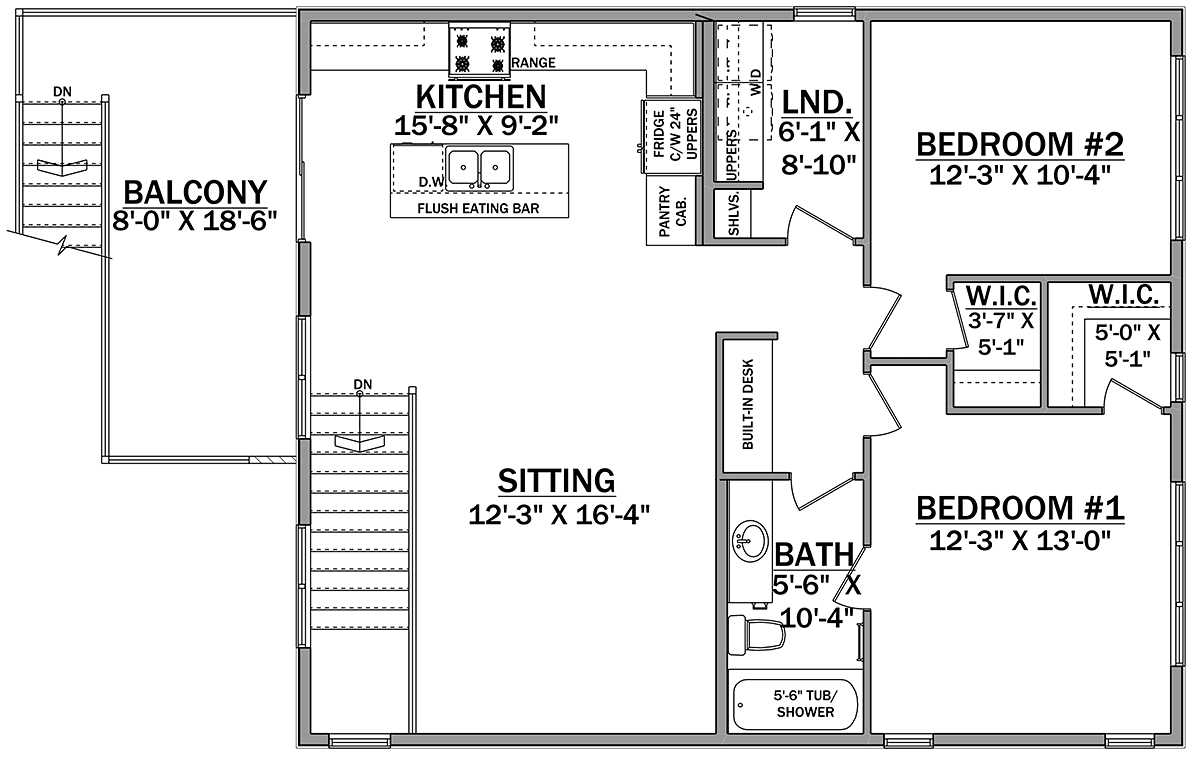

Floor plans - The conceptual plans you started off with, now get all of the final detail added into the drawings. The floor plans will go through a comprehensive structural analysis. Any unusual conditions will be specifically noted or referred on to a structural engineer for further analysis. The locations of all elements such as; windows, doors, walls, cabinetry, ceiling details and staircases, will be precisely determined. Interior elevation details of elements such as arches and fireplaces may be produced on a per plan basis or at the direction of our client.

Foundation plan - This drawing will be produced in addition to any basement development plans to specifically note all foundation walls, beam locations, telepost pads, plumbing rough-ins, and foundation steps in one simple and easy to read drawing.

Cross sections - These drawings are intended to show the specific heights and construction of walls, foundations, floors and roof. Multiple sections may be required to fully illustrate the construction of the home.

Roof plan - For complex roof designs especially, a well laid out roof plan will address all roof pitches, overhang depths, fascia sizes and drainage solutions for any valleys in the roof layout.

Building specifications - The specifications are a comprehensive list of all the various materials and standards that the home will be constructed with. Clients can request specific items in their specification or choose a standard set of construction specifications.

Lighting and electrical plans - These optional plans show locations of all the lights, switches and outlets for the interior and exterior of the home.
