House Plan 83542
Ranch Style, 648 Sq Ft, 1 Bed, 1 Bath | Plan 83542
sq ft
648beds
1baths
1bays
0width
38'depth
26'
Plan Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Total Living Area: | 648 sq ft |
| Main Living Area: | 648 sq ft |
| Garage Type: | None |
| See our garage plan collection. If you order a house and garage plan at the same time, you will get 10% off your total order amount. | |

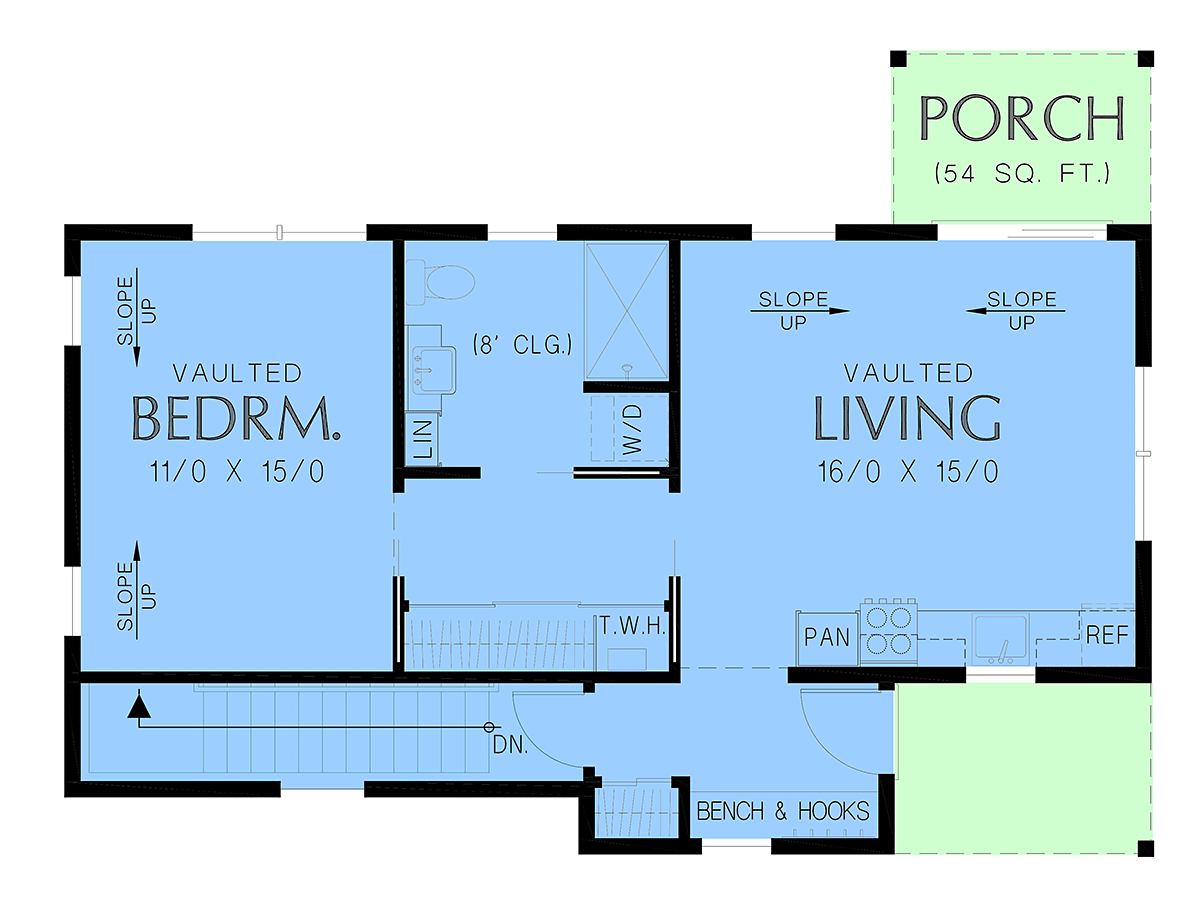

| Foundation Types: | Basement - * $402.00 Total Living Area may increase with Basement Foundation option. Slab |
| Exterior Walls: | 2x6 |
| House Width: | 38'0 |
| House Depth: | 26'0 |
| Number of Stories: | 1 |
| Bedrooms: | 1 |
| Full Baths: | 1 |
| Max Ridge Height: | 16'0 from Front Door Floor Level |
| Primary Roof Pitch: | 10:12 |
| Roof Load: | 25 psf |
| Roof Framing: | Truss |
| Porch: | 92 sq ft |
| Main Ceiling Height: | 8' |
Special Features:
Plan Description
Small Cottage Farmhouse with Tons of Character, ADA Friendly
Handicap Friendly Home Plan 83542 is your ticket to an accessible and easy-to-maintain small dwelling option. Overall, the living space is 648 square feet with 1 bedroom and 1 bathroom inside. Outside dimensions are 38 feet wide by 26 feet deep, so this is a great option for a small footprint house plan. Buyers will choose this convenient design to build on a fully-independent lot. In addition, some buyers will build this small house plan as an ADU which is an Accessory Dwelling Unit. Your loved one will enjoy the privacy of their own home, yet the home can be located on your property. In that case, you will be close enough to lend a hand or care for your family member if needed on a full time basis.
Handicap Friendly Home Plan Designed for Easy Maneuverability

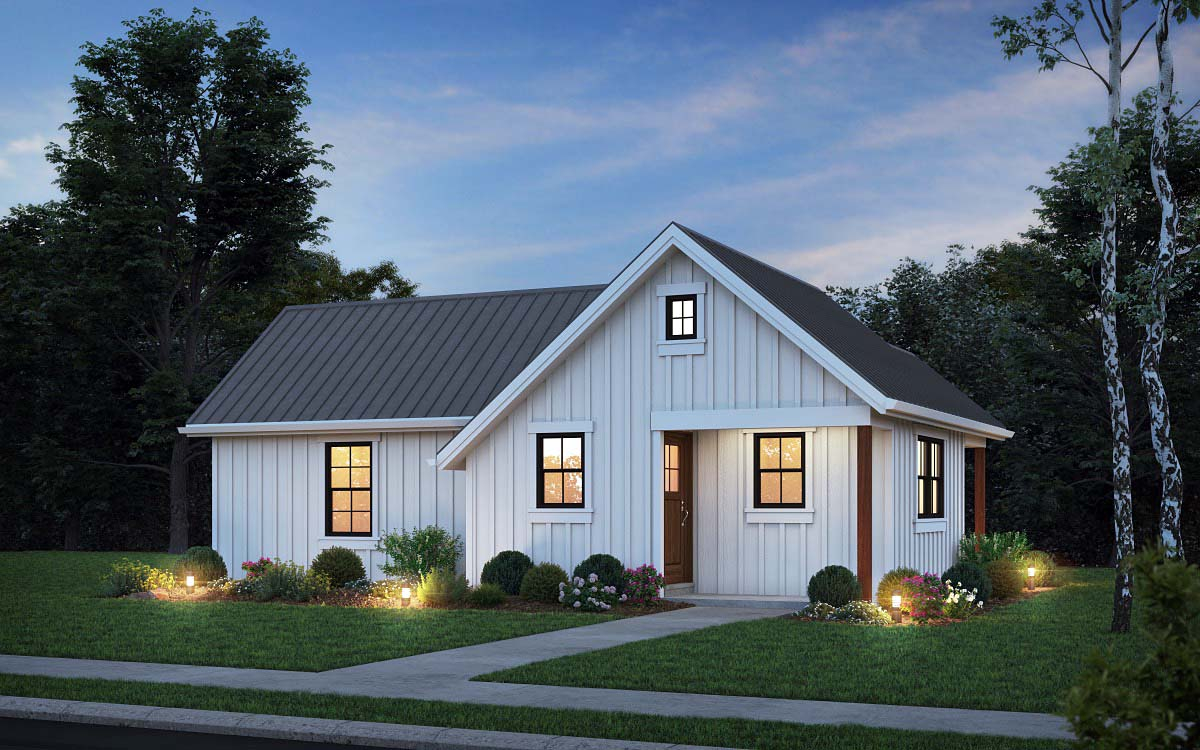

Handicap Friendly Home Plan 83542 cuts the unnecessary things in home design and simplifies your routine. Firstly, the simple footprint and basic rooflines of this home are "cut and dried" to make construction affordable and efficient. You want comfort and you want it fast, correct? No problem with this new plan because the materials are readily available. For example, pick up the vertical wooden siding at your local building supply company, and it will most likely be in stock. No wait time! The same will probably go for the windows and metal roofing. Not only will these materials be readily available in most places, but these in-stock items will be easy to replace when the time comes to do maintenance. Overall, we recommend choosing materials like Hardiplank for siding and metal for the roof because those materials will have a long lifespan and cut down on your maintenance.

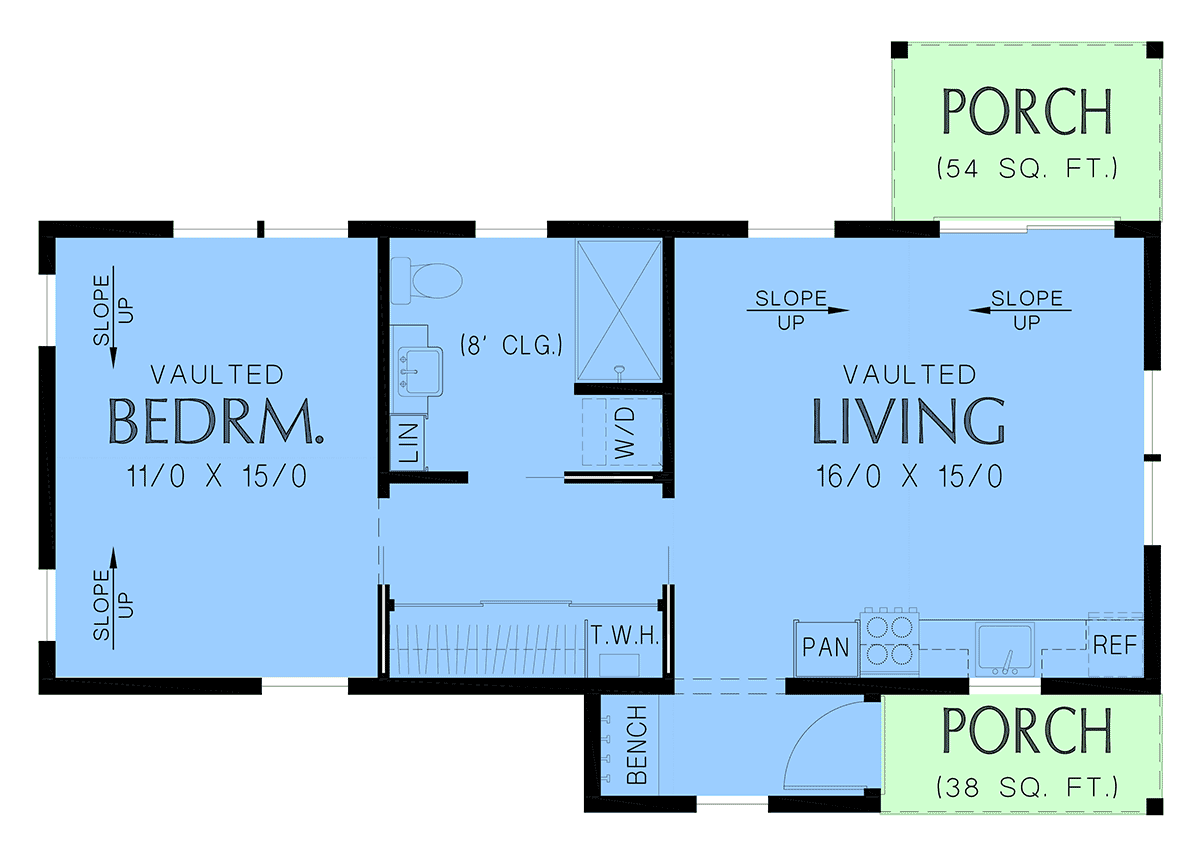

Secondly, the floor plan is designed to eliminate the obstacles that you would find in the average home. For example, have your front walkway poured so that it creates a gentle grade for your wheelchair. Immediately you will arrive at the front door, and you are sheltered from the sun and rain on the front porch. Going inside, there is a convenient entry space with a bench and hooks where you can leave bags and shoes. Next, we have a wide threshold leading into the open living space. There are no unnecessary walls separating the kitchen or dining room or living room. Instead, you have unobstructed access to every inch of the kitchen. From there, use your creativity to design furniture placement and dining space. The ceiling slopes up to make the space feel even larger, and windows on three sides make this room bright and sunny.
Utilize Pocket Doors for Accessibility
Thirdly, wide doorways and pocket doors are functional for opening up the space or protecting your privacy. Review the plans carefully to make sure that each entrance is constructed to maximize your personal needs for accessibility. It's easy to open and close the pocket door which separates the bedroom side of the house from the entertaining space. Everything you need for function is readily at hand such as the mechanical room and closet space to the left side. Move freely in this area because you don't have to navigate into a tight closet to access your clothing. The bathroom is on the right side of this space, and it includes your stacked washer and dryer. Some will choose a newer model for washing clothes such as the combined washer and dryer units to save space. Those units would also be easier to use for someone who is in a wheelchair.
Doors are vital in a home, but we love the use of pocket doors because they can be rolled back and kept out of your way. As you note in the bathroom, it includes a shower which can be designed easily with no curb. Linen storage space is available next to the sink so that you won't need to go searching for towels at inconvenient times. Lastly in this wonderful plan, we have a very spacious bedroom with a sloped ceiling and abundant windows. The room measures 11 feet wide by 15 feet deep, leaving plenty of room to move around the bed.
What's Included?

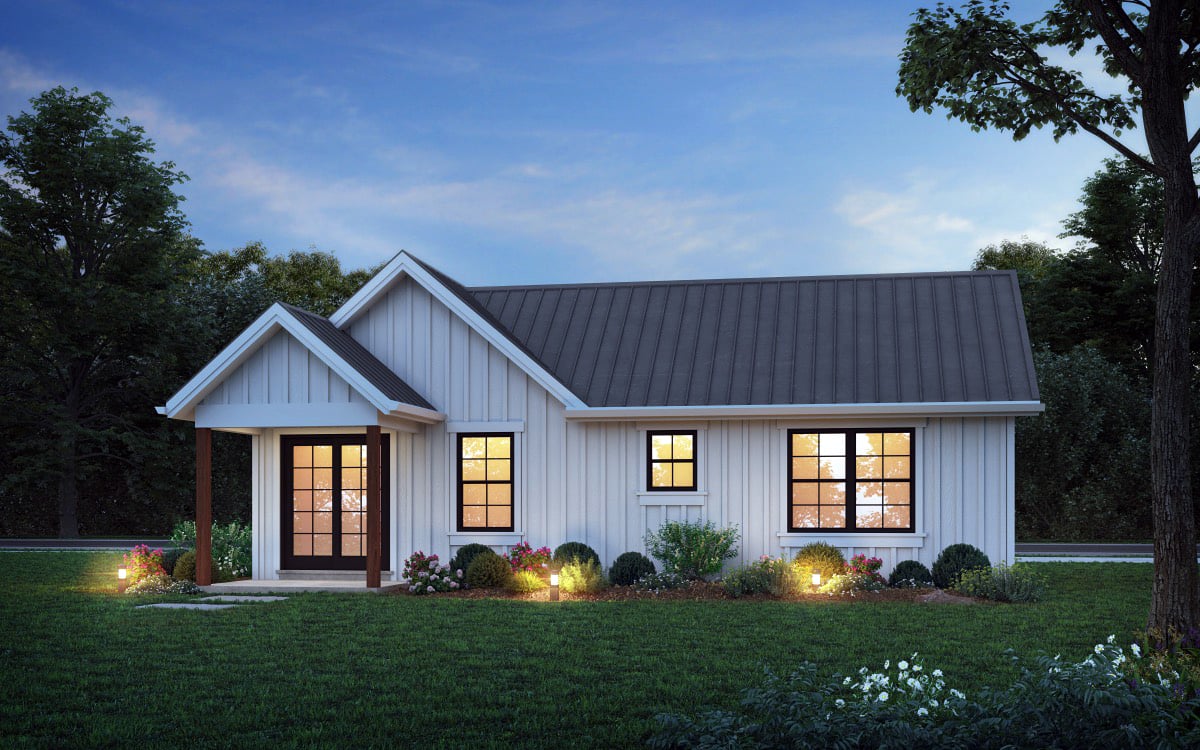

In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices
Foundation Plan
The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
Floor Plan(s)
Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
Building Sections
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices
Roof Plan
Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
Notes and Details Page(s)
Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
** Available for U.S. only.
Q & A
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
