Multi-Family Plan 83578

• PDF File: $2,288.00
• 5 Sets plus PDF File: $2,588.00
• CAD File: $4,576.00
  Single Build License issued on CAD File orders.
• Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $250.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $60.00

Available Foundation Types:

• Basement : $674.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : No Additional Fee
• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	4047 sq ft
Main Living Area:	1728 sq ft
Upper Living Area:	2319 sq ft
Garage Area:	720 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Basement - * $674.00 Total Living Area may increase with Basement Foundation option. Crawlspace Slab
Exterior Walls:	2x6
House Width:	60'0
House Depth:	47'0
Number of Stories:	2
Bedrooms:	9
Full Baths:	6
Half Baths:	3
Max Ridge Height:	26'10 from Front Door Floor Level
Primary Roof Pitch:	4:12
Roof Load:	25 psf
Roof Framing:	Truss
Porch:	114 sq ft
FirePlace:	Yes
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Coat Closet
• Deck or Patio
• Entertaining Space
• Front Porch
• Open Floor Plan
• Pantry
• Storage Space

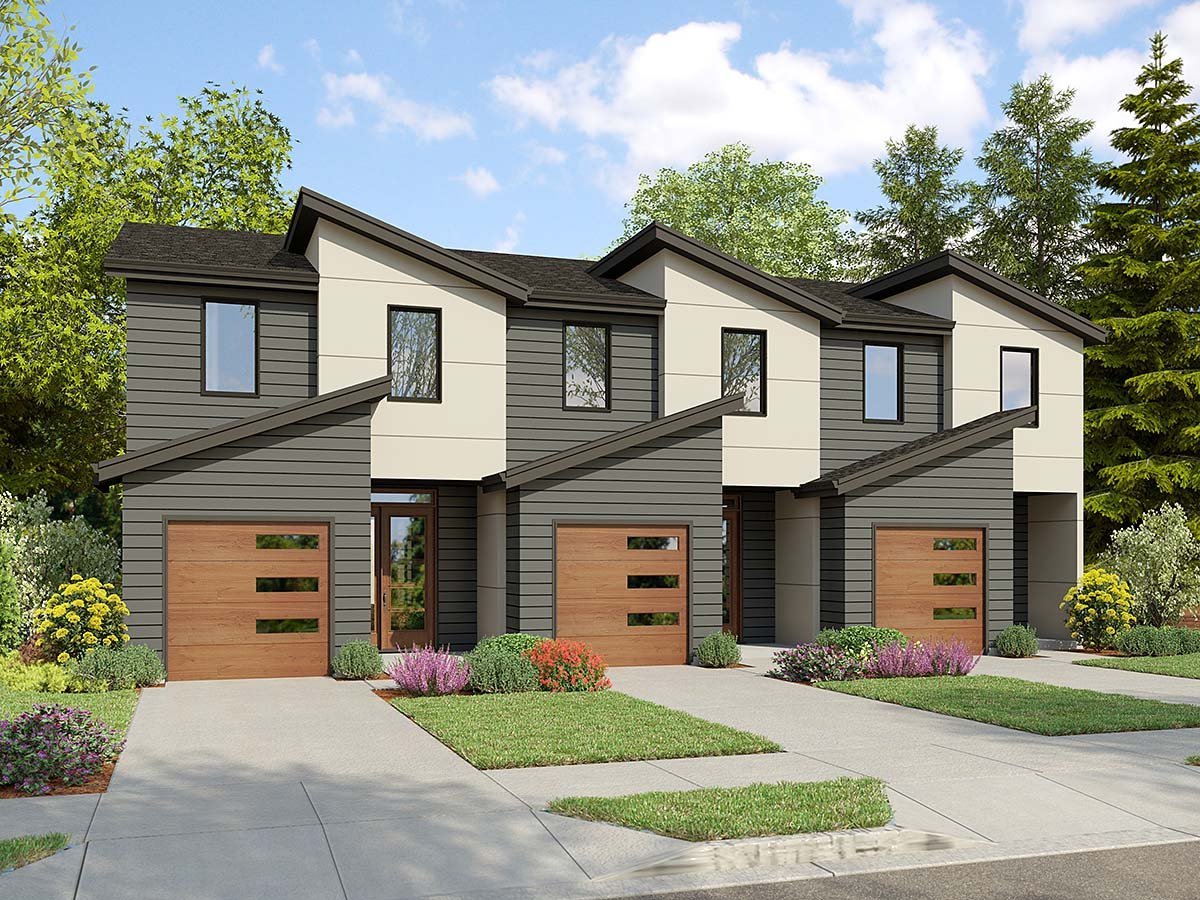

Triplex House Plans, Modern Style with 4047 Sq Ft, 9 Bedrooms, 9 Bathrooms and a 3 Car Garage

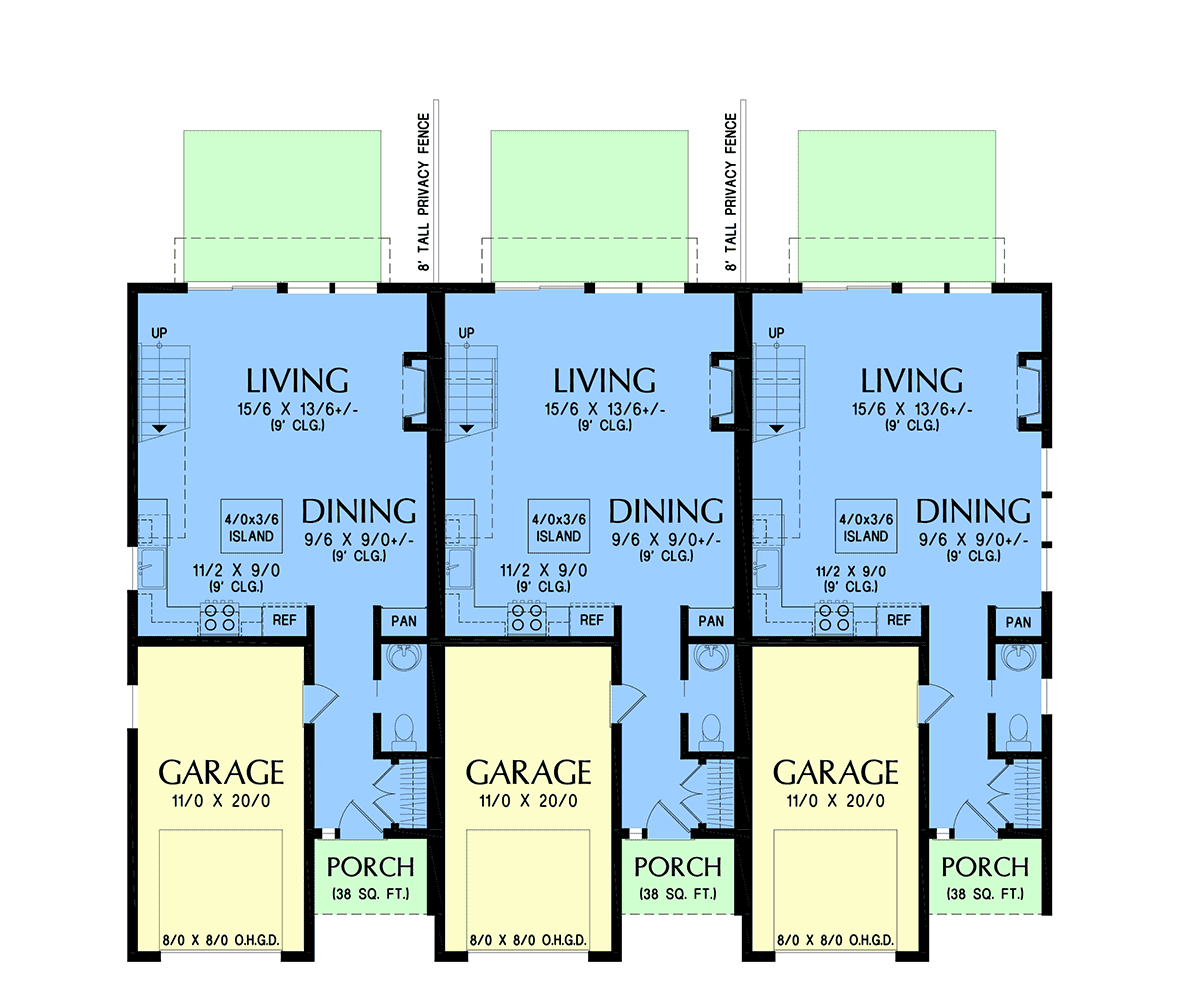

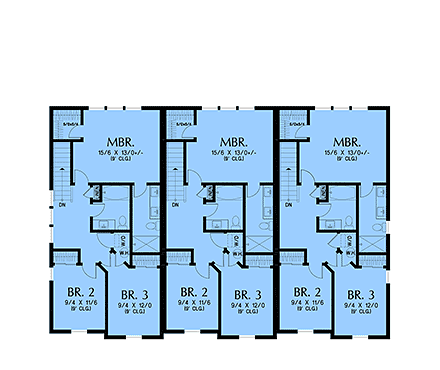

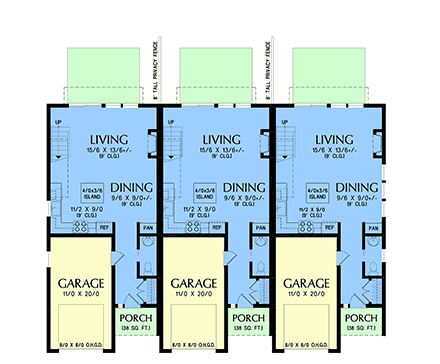

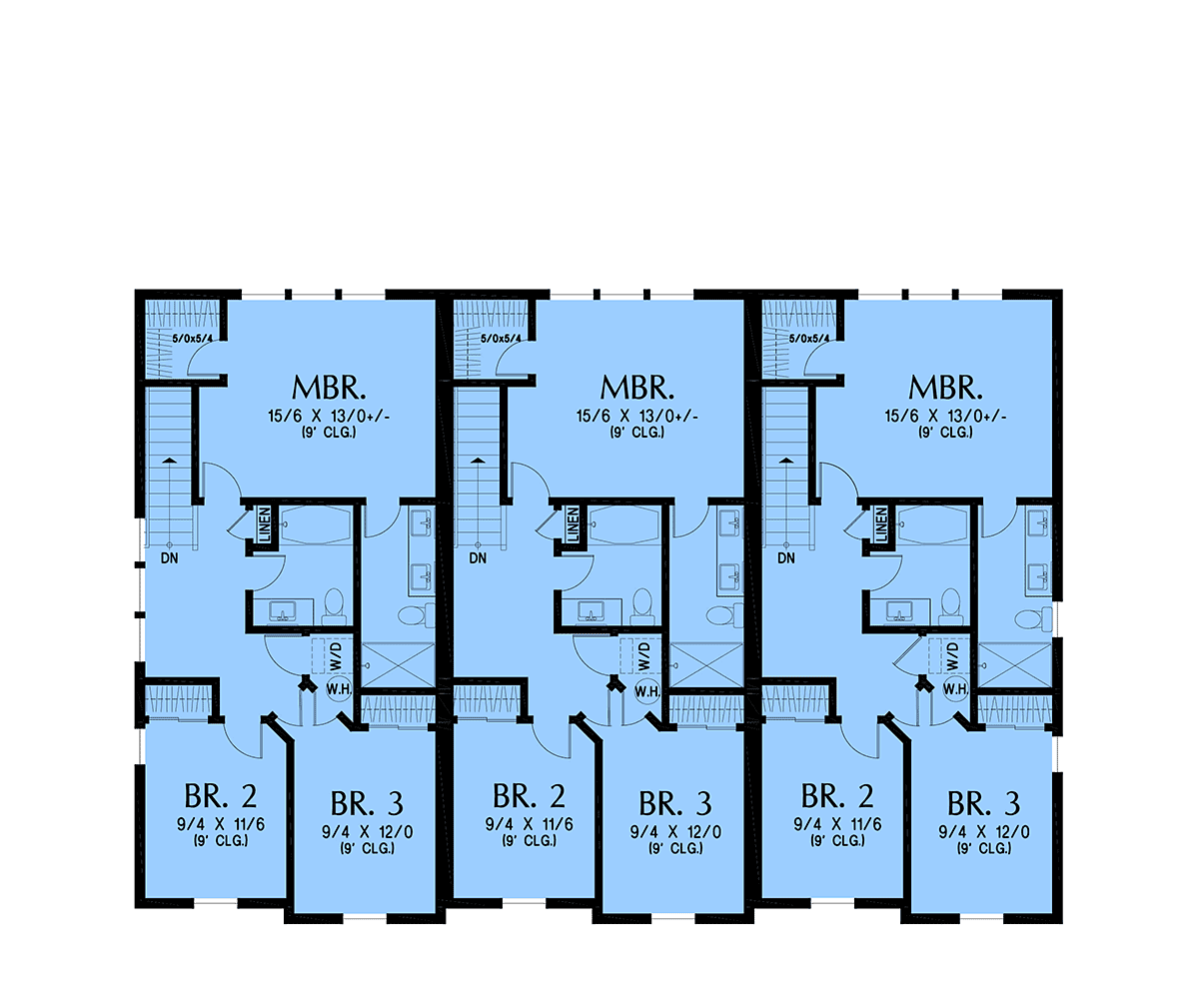

4,047 SQ FT Modern Style Triplex Plan #83578 features 3 units, each unit having 3 bedrooms and 2.5 bathrooms. Tenants will be drawn to the stylish exterior and comfortable amenities. In each unit, the glass door opens where you have a coat closet and half bath and quick access to the one car garage. The rest of the main level has a kitchen with island, dining space, and living room with fireplace. Enjoy the patio which is separated by an 8' privacy fence. Lastly, all 3 bedrooms are upstairs.

Exterior Elevations
In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices

Foundation Plan
The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s)
Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections
Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Note: Sections and Elevations depict the default foundation, regardless of optional foundation page choices

Roof Plan
Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)
Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.
