Multi-Family Plan 83685

• PDF File: $1,745.00
• 5 Sets: $1,995.00
• 5 Sets plus PDF File: $2,095.00
• PDF File Unlimited Build: $1,995.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $2,495.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $2,995.00
  Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.
• Right Reading Reverse: $295.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Available Foundation Types:

• Basement : $495.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $495.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $495.00
  May require additional drawing time, please call to confirm before ordering.
• Stem Wall Slab : No Additional Fee
• Walkout Basement : $495.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x4: $250.00
  (Please call for drawing time.)
• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	6950 sq ft

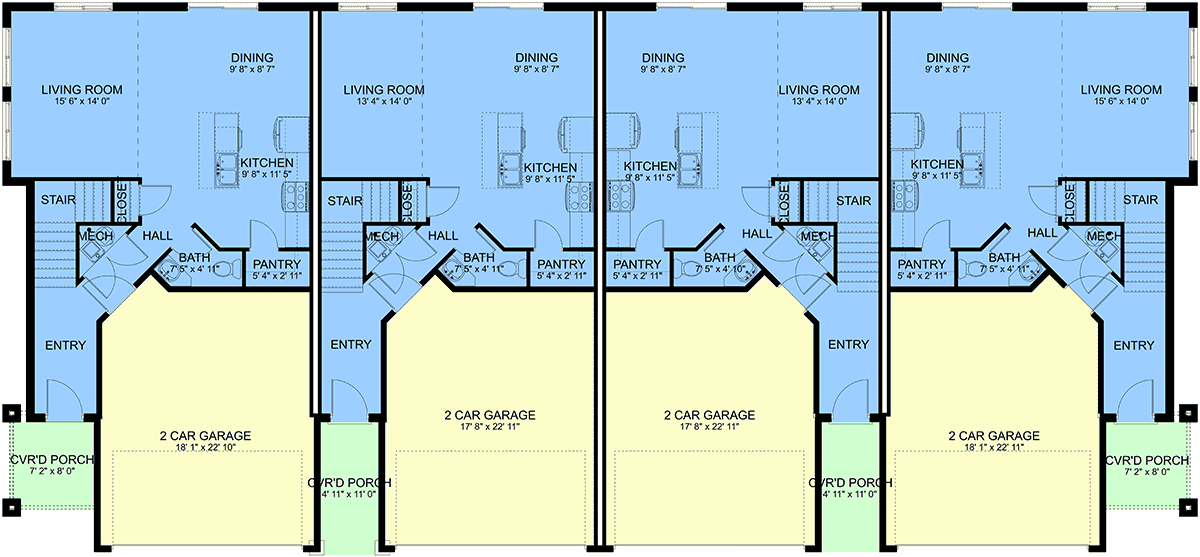

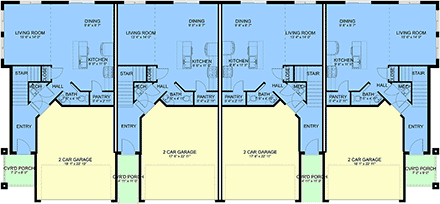

Main Living Area:	2700 sq ft

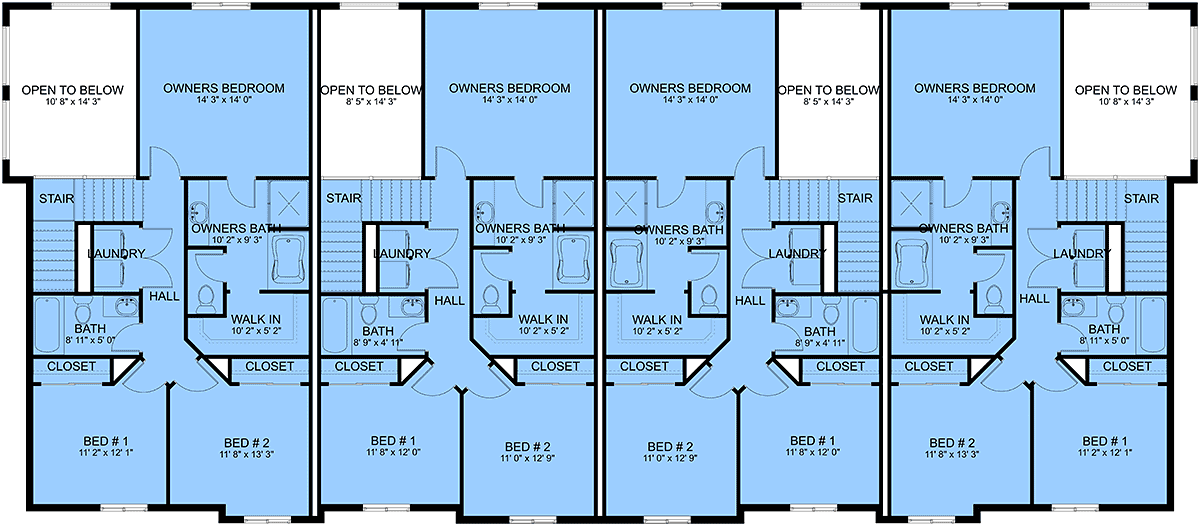

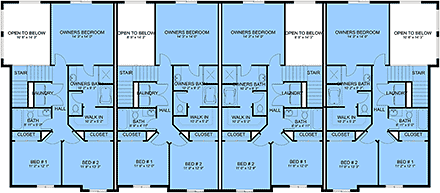

Upper Living Area:	4250 sq ft
Garage Area:	1628 sq ft
Garage Type:	Attached
Garage Bays:	8
Foundation Types:	Basement - * $495.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $495.00 Slab - * $495.00 Stem Wall Slab Walkout Basement - * $495.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x4 - * $250.00 2x6
House Width:	101'2"
House Depth:	46'6"
Number of Stories:	2
Bedrooms:	12
Full Baths:	10
Half Baths:	2
Max Ridge Height:	29'3" from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Truss
Porch:	234 sq ft
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Coat Closet
• Entertaining Space
• Front Porch
• Open Floor Plan
• Pantry

A typical plan includes...

Pages
1. Notes
2. Basement/Foundation
3. Main Floor
4. Upper Floor
5. Main Floor Framing
6. Upper Floor Framing
7. Roof Framing
8. Front/Rear Elevations
9. Left Right Elevations
10. Cross Sections
11. Basement Electrical
12. Main Floor Electrical
13, Upper Floor Electrical
14. Details

In the case of single story plans, Pages 4, 6, and 13 are eliminated.

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A
