House Plan 84702

New American Style with 4 Bed, 5 Bath, 3 Car Garage | Plan 84702

sq ft

3877

beds

baths

4.5

bays

width

107'

depth

94'

Turn ON Image Gallery

Add to cart

Plan Pricing from $1,795.00

Plan Pricing

PDF File: $1,795.00
PDF File Unlimited Build: $2,495.00
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File Unlimited Build: $3,295.00
Unlimited Build License issued on CAD File Unlimited Build orders.

Need A Materials List?

It seems that this plan does not offer a stock materials list, but we can make one for you. Please call 1-800-482-0464, x403 to discuss further.

Right Reading Reverse: $225.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

Need Printed Sets?

It seems that this plan only offers electronic (PDF or CAD) files. If you also need Printed Sets, please call 1-800-482-0464, x403 to discuss possible options.

Available Foundation Types:

Basement : $395.00
May require additional drawing time, please call to confirm before ordering.
Total Living Area may increase with Basement Foundation option.
Crawlspace : $175.00
May require additional drawing time, please call to confirm before ordering.
Slab : No Additional Fee

Available Exterior Wall Types:

2x4: No Additional Fee
2x6: $295.00
(Please call for drawing time.)

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

Specifications

Total Living Area:	3877 sq ft
Main Living Area:	3877 sq ft
Bonus Area:	785 sq ft
Garage Area:	1042 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Basement - * $395.00 Total Living Area may increase with Basement Foundation option. Crawlspace - * $175.00 Slab
Exterior Walls:	2x4 2x6 - * $295.00
House Width:	106'4
House Depth:	93'11.5
Number of Stories:	1
Bedrooms:	4
Full Baths:	4
Half Baths:	1
Max Ridge Height:	29'4 from Front Door Floor Level
Primary Roof Pitch:	9:12
Roof Framing:	Stick
Porch:	1170 sq ft
FirePlace:	Yes
Main Ceiling Height:	10'
Upper Ceiling Height:	9'

* May require additional drawing time.

Special Features:

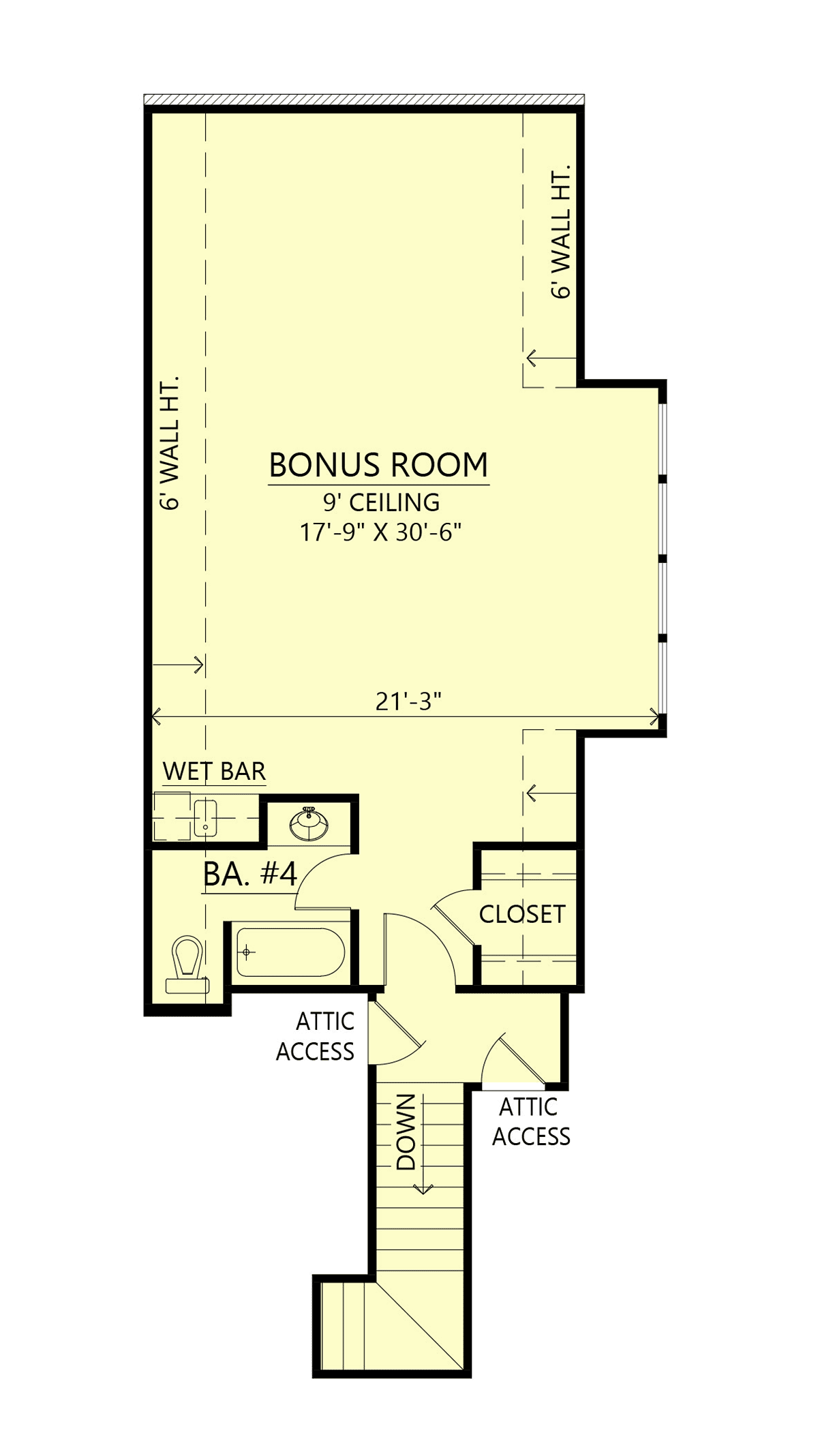

Bonus Room
Entertaining Space
Front Porch
Jack and Jill Bathroom
Mudroom
Office
Open Floor Plan
Outdoor Fireplace
Outdoor Kitchen
Pantry
Rear Porch
Storage Space
Wet Bar

What's Included?

When you purchase a plan package, you receive the license to build that plan one (1) time. The package includes:

1/4" scale floor plan which includes window & door schedules. Our floor plans are very detailed.

1/4” scale Electrical layout which includes much detail such as: Recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc.

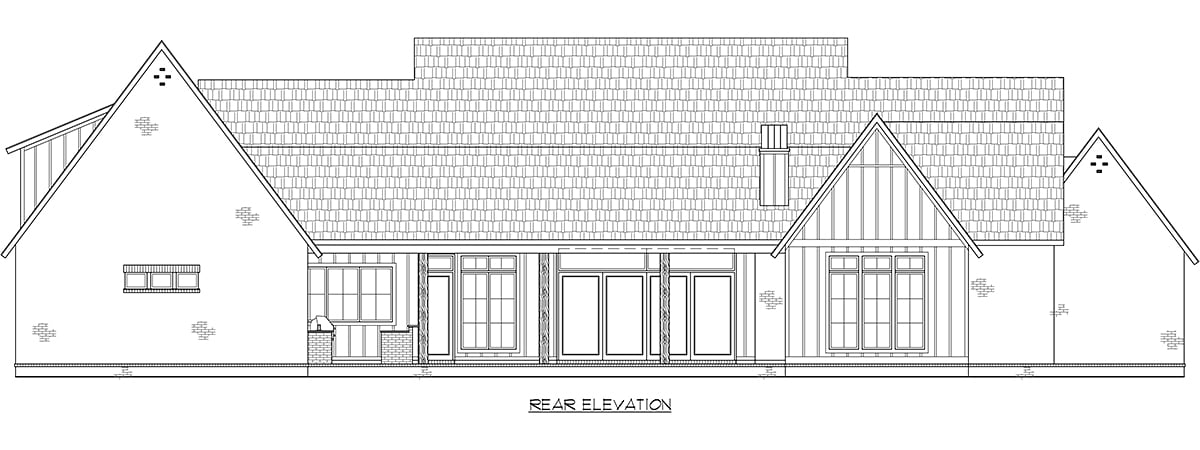

1/4" scale front and rear and side elevations.
