Multi-Family Plan 84916

• PDF File: $2,298.00
• 5 Sets plus PDF File: $2,593.00
• PDF File Unlimited Build: $3,297.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $2,897.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $3,896.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Materials List: $299.00
• Right Reading Reverse: $299.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $59.00

Available Foundation Types:

• Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.
• Crawlspace : $299.00
  May require additional drawing time, please call to confirm before ordering.
• Slab : $299.00
  May require additional drawing time, please call to confirm before ordering.
• Walkout Basement : $299.00
  May require additional drawing time, please call to confirm before ordering.
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $299.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	2516 sq ft
Main Living Area:	2516 sq ft
Garage Area:	996 sq ft
Garage Type:	Attached
Garage Bays:	4
Foundation Types:	Basement Crawlspace - * $299.00 Slab - * $299.00 Walkout Basement - * $299.00 Total Living Area may increase with Basement Foundation option.
Exterior Walls:	2x4 2x6 - * $299.00
House Width:	72'0
House Depth:	67'4
Number of Stories:	1
Bedrooms:	4
Full Baths:	4
Max Ridge Height:	22'1 from Front Door Floor Level
Primary Roof Pitch:	6:12
Roof Framing:	Unknown
Porch:	256 sq ft
FirePlace:	Yes
Main Ceiling Height:	9'

* May require additional drawing time.

Special Features:

• Coat Closet
• Deck or Patio
• Entertaining Space
• Front Porch
• Mudroom
• Open Floor Plan
• Pantry
• Storage Space

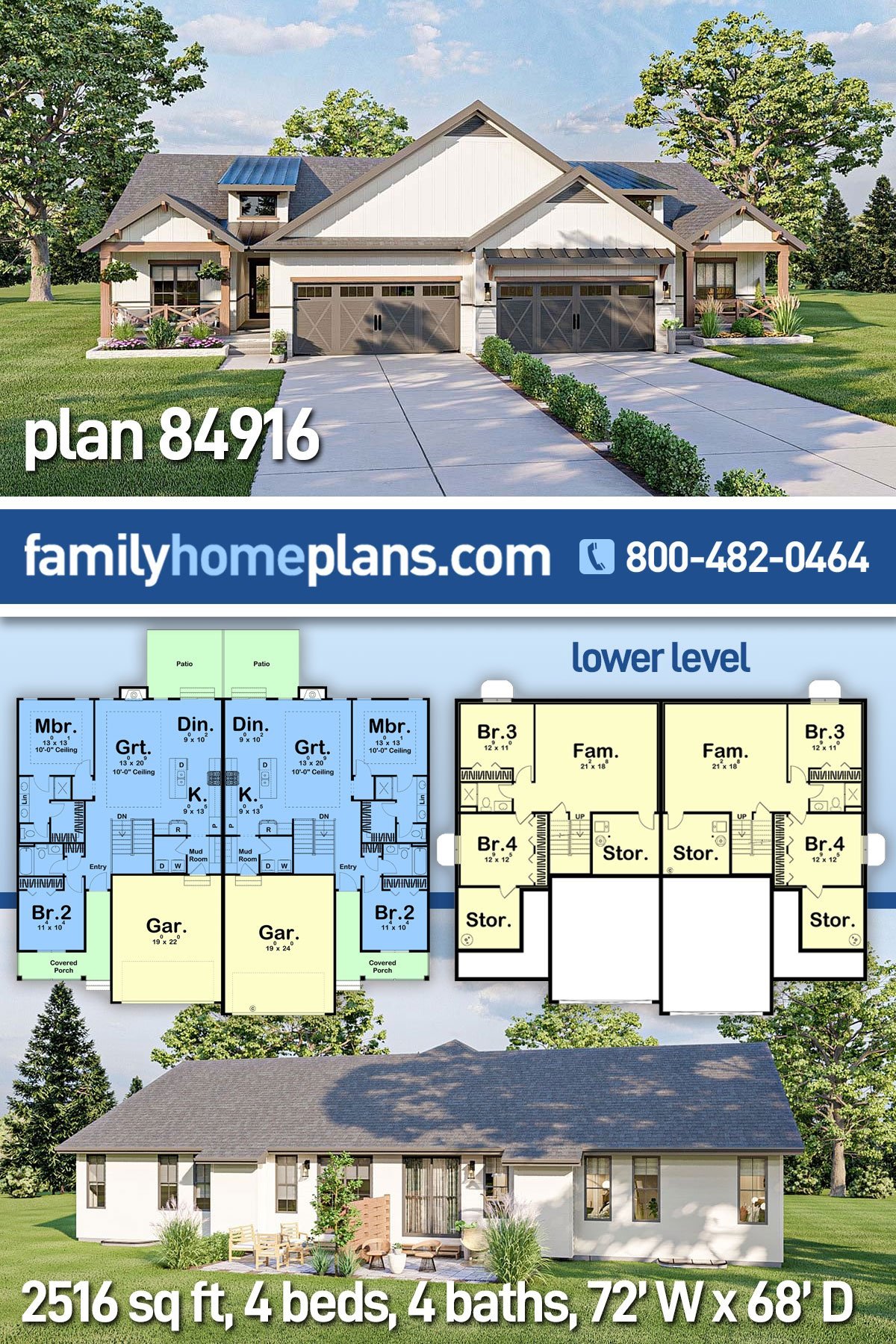

Modern Farmhouse Style Duplex with Basement Expansion

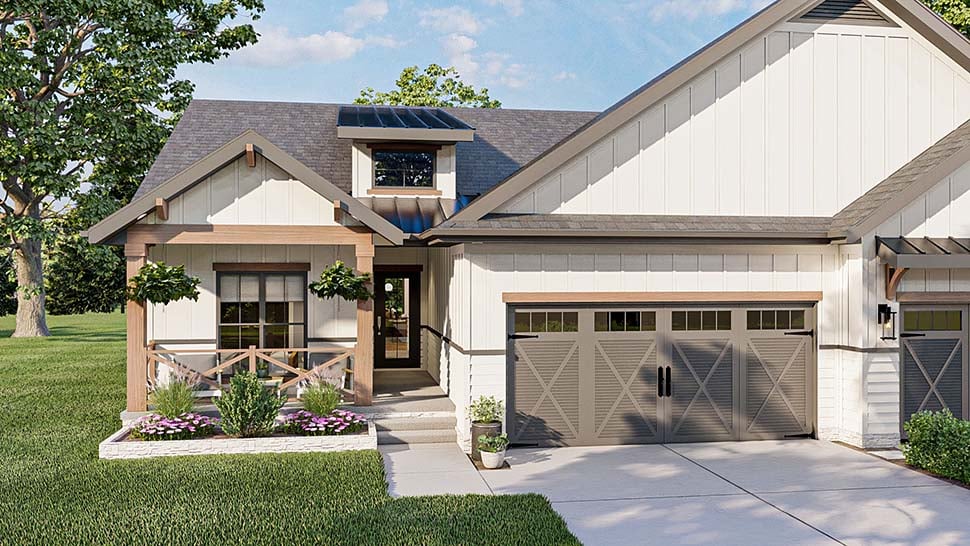

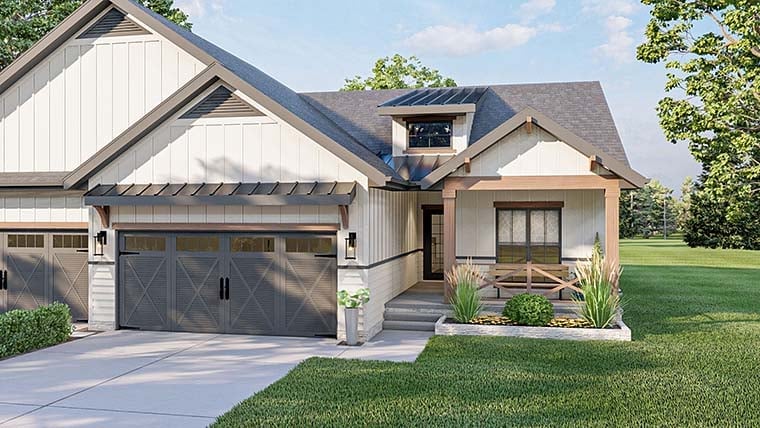

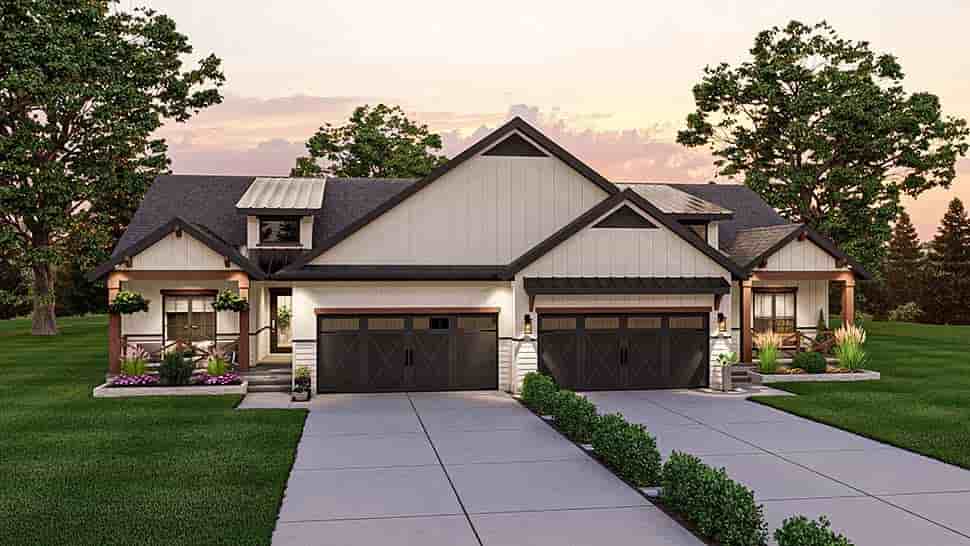

This plan’s exterior provides an elegance and rustic curb appeal, sure to attract anyone that drives by. Being almost symmetrical, Urbandale has minor details making it different from each side.

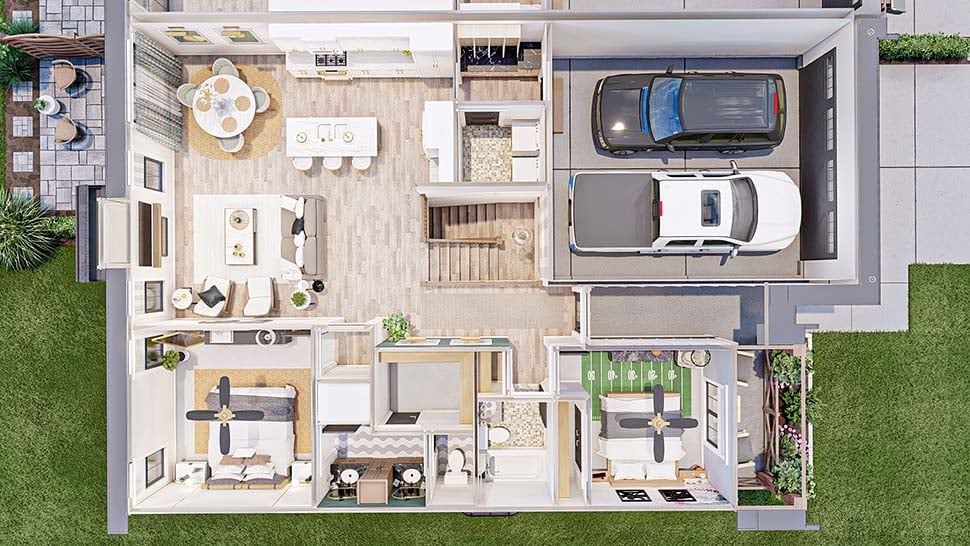

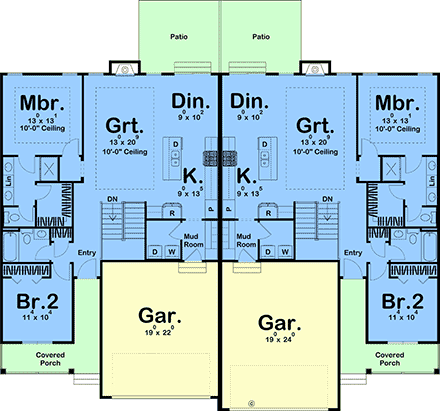

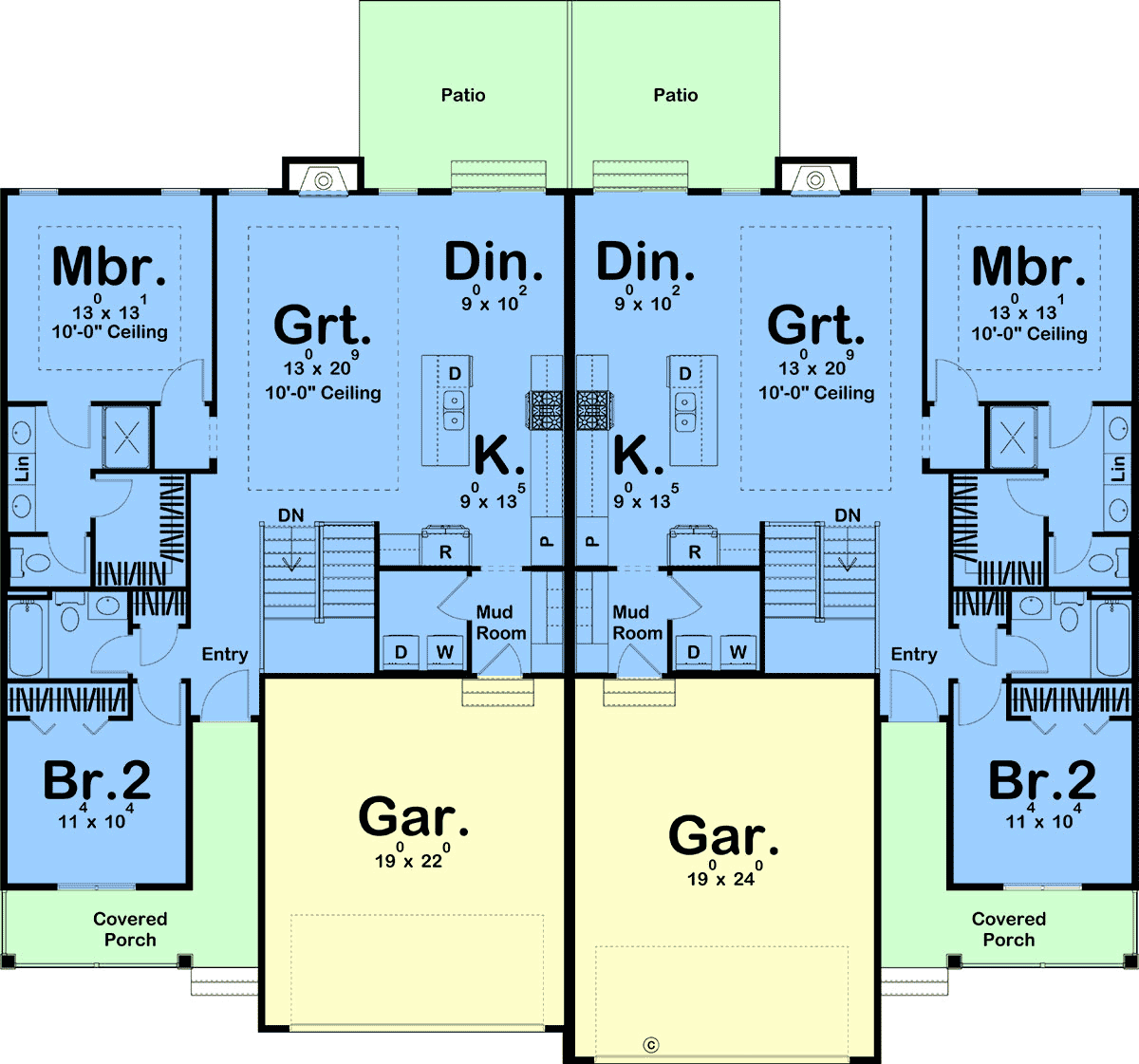

Step into either door to find the same plan, separated by a partition. The large, two-car garage walks straight into a mudroom, complete with an area for laundry. Continue through here to be greeted by a spacious kitchen and dining room. While saving space by separating this home into two, it still feels incredibly large due to the open floor plan. The kitchen, dining, and great room are all one, making this area perfect for relaxing with the family after a large meal.

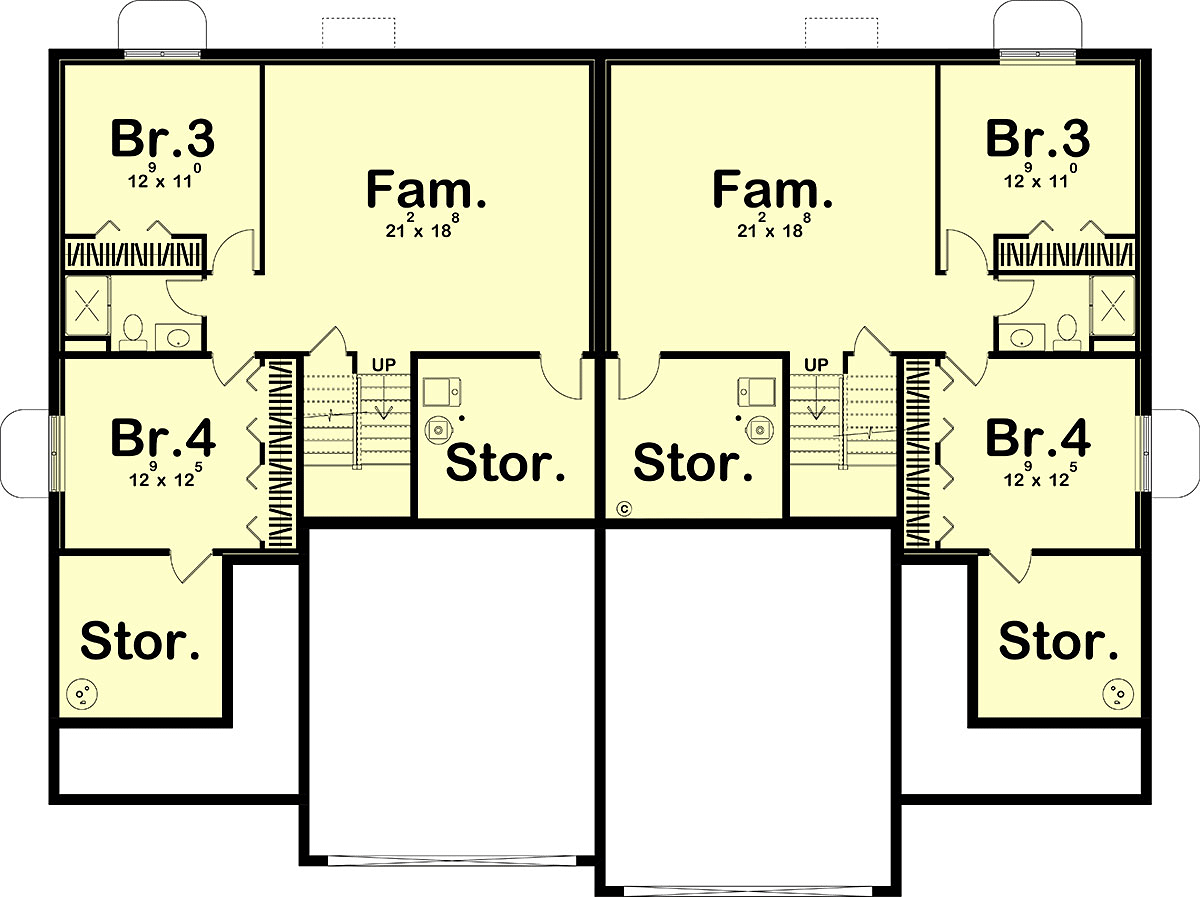

The home is complete with a patio and two bedrooms, one being the master suite with a large walk-in closet and a double vanity. While there is one additional bedroom on the main floor, having an optional finished basement can give you two more and another bathroom. An additional family room as well as two large storage spaces are also included in the basement, and would make this home perfect for any family.

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation and typical notes and requirements.

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements.

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.

Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible. Detached garage plans may not include an electrical plan. Please call to verify.

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Roof Plan

Typical wall section

Typical stair section

Cabinets are shown on all plans
