Garage-Living Plan 84919

• PDF File: $1,299.00
• 5 Sets plus PDF File: $1,594.00
• PDF File Unlimited Build: $2,298.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $1,898.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $2,897.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Materials List: $299.00
• Right Reading Reverse: $299.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $59.00

Available Foundation Types:

• Slab : No Additional Fee

Available Exterior Wall Types:

• 2x4: No Additional Fee
• 2x6: $299.00
  (Please call for drawing time.)

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1275 sq ft
Main Living Area:	281 sq ft
Upper Living Area:	994 sq ft
Garage Area:	1610 sq ft
Garage Type:	Attached
Garage Bays:	3
Foundation Types:	Slab
Exterior Walls:	2x4 2x6 - * $299.00
House Width:	45'0
House Depth:	73'8
Number of Stories:	2
Bedrooms:	2
Full Baths:	3
Max Ridge Height:	29'6 from Front Door Floor Level
Primary Roof Pitch:	10:12
Roof Framing:	Unknown
Porch:	928 sq ft
2nd Floor Laundry:	Yes
Main Ceiling Height:	9'
Upper Ceiling Height:	8'

* May require additional drawing time.

Special Features:

• Deck or Patio
• Entertaining Space
• Mudroom
• Open Floor Plan
• Storage Space

Barndominium Style Carriage House w/ RV Garage

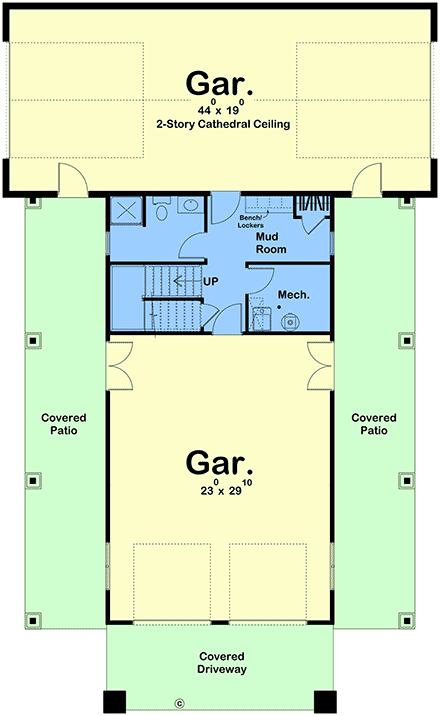

This barndominium style carriage house plan features a spacious layout with 1275 square feet of living space. The main floor is designed with an RV garage, perfect for storage, protection, or to be used as a workshop. Dividing the other two-car garage with a covered driveway is a powder bath and mudroom, a great space to clean up before heading upstairs to the second level. There is also access to a covered patio on both sides of the main level.

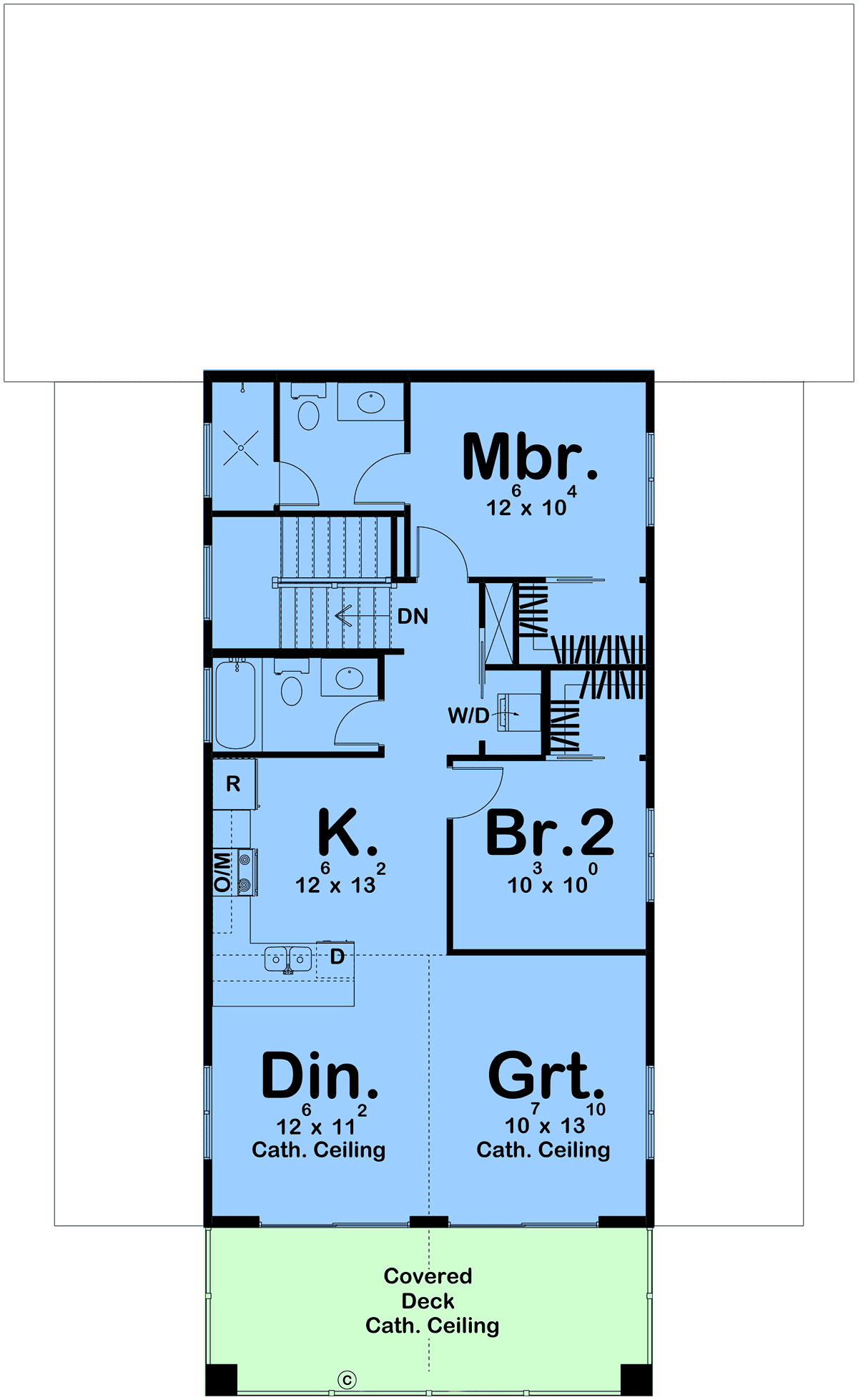

Upstairs, you can find the two bedrooms as well as the main living area. An open concept floor plan, featuring a large space for the great room and dining area, with a connection to the kitchen is a great area for gatherings. The kitchen is equipped with plenty of counter space, as well as a peninsula island for quick dining.

The two bedrooms both have their own walk in closet. The master has its own private bathroom with a separate shower, while bedroom two shares the guest bathroom. A laundry area can also be found up here, as well as access to a covered deck with cathedral ceilings.
