Garage-Living Plan 84931

• PDF File: $1,499.00
• 5 Sets plus PDF File: $1,794.00
• PDF File Unlimited Build: $2,498.00
  Unlimited Build License issued on PDF File Unlimited Build orders.
• CAD File: $2,098.00
  Single Build License issued on CAD File orders.
• CAD File Unlimited Build: $3,097.00
  Unlimited Build License issued on CAD File Unlimited Build orders.
• Materials List: $299.00
• Right Reading Reverse: $299.00
  All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
• Additional Sets: $59.00

Available Foundation Types:

• Walkout Basement : No Additional Fee
  Total Living Area may increase with Basement Foundation option.

Available Exterior Wall Types:

• 2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

• Shipping Policy

Total Living Area:	1797 sq ft
Main Living Area:	1797 sq ft
Garage Area:	2828 sq ft
Garage Type:	Drive Under
Garage Bays:	2
Foundation Types:	Walkout Basement
Exterior Walls:	2x6
House Width:	55'8
House Depth:	98'0
Number of Stories:	1
Bedrooms:	1
Full Baths:	1
Max Ridge Height:	18'2 from Front Door Floor Level
Primary Roof Pitch:	0
Roof Framing:	Unknown
FirePlace:	Yes
Main Ceiling Height:	12'

* May require additional drawing time.

Special Features:

• Butler's Pantry
• Entertaining Space
• Open Floor Plan
• Storage Space

Modern Style Carriage House

The sleek, modern design of this home is sure to impress, making it every car-lovers dream. This apartment garage includes 1797 square feet of living space on the main floor and 2828 square feet of garage space below.

Entering on the main floor, you will be greeted by an open concept. The full kitchen on the right, and a large dining on the left. A butlers pantry and laundry room are also on this side of the home. Step in a bit further and you will find a hall bath along with a bedroom that has a large slider door and a balcony. Back in the main living space is a fireplace with built-ins on one side. The ultimate focus of this great room is the large glass wall that overlooks the showroom. Stairs connecting the great room to the garage below are closed off by a glass door.

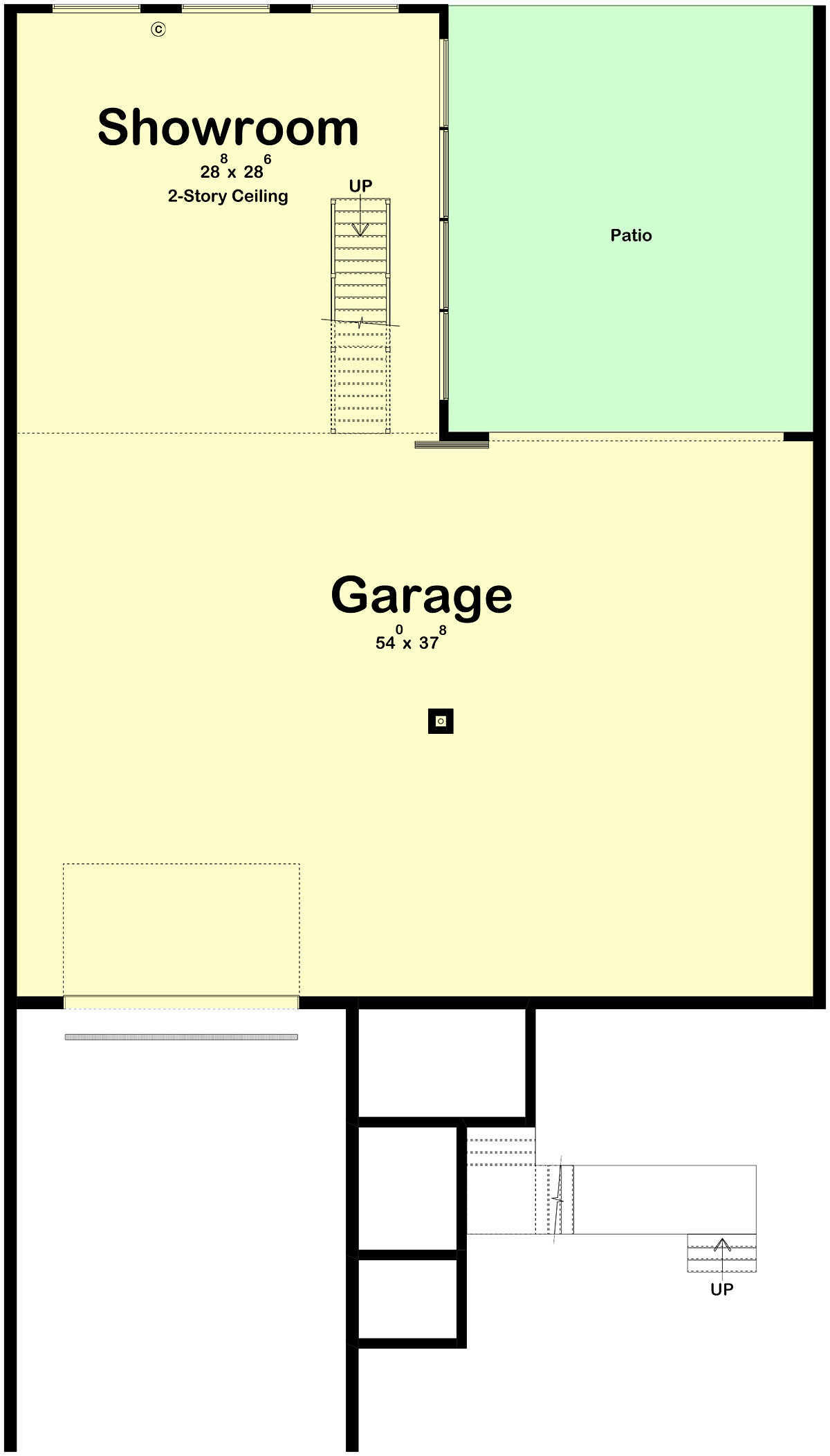

Below is 2828 square feet of garage space. The large walkout windows help bring in plenty of natural light to show off your most prized possessions.

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation and typical notes and requirements.

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements.

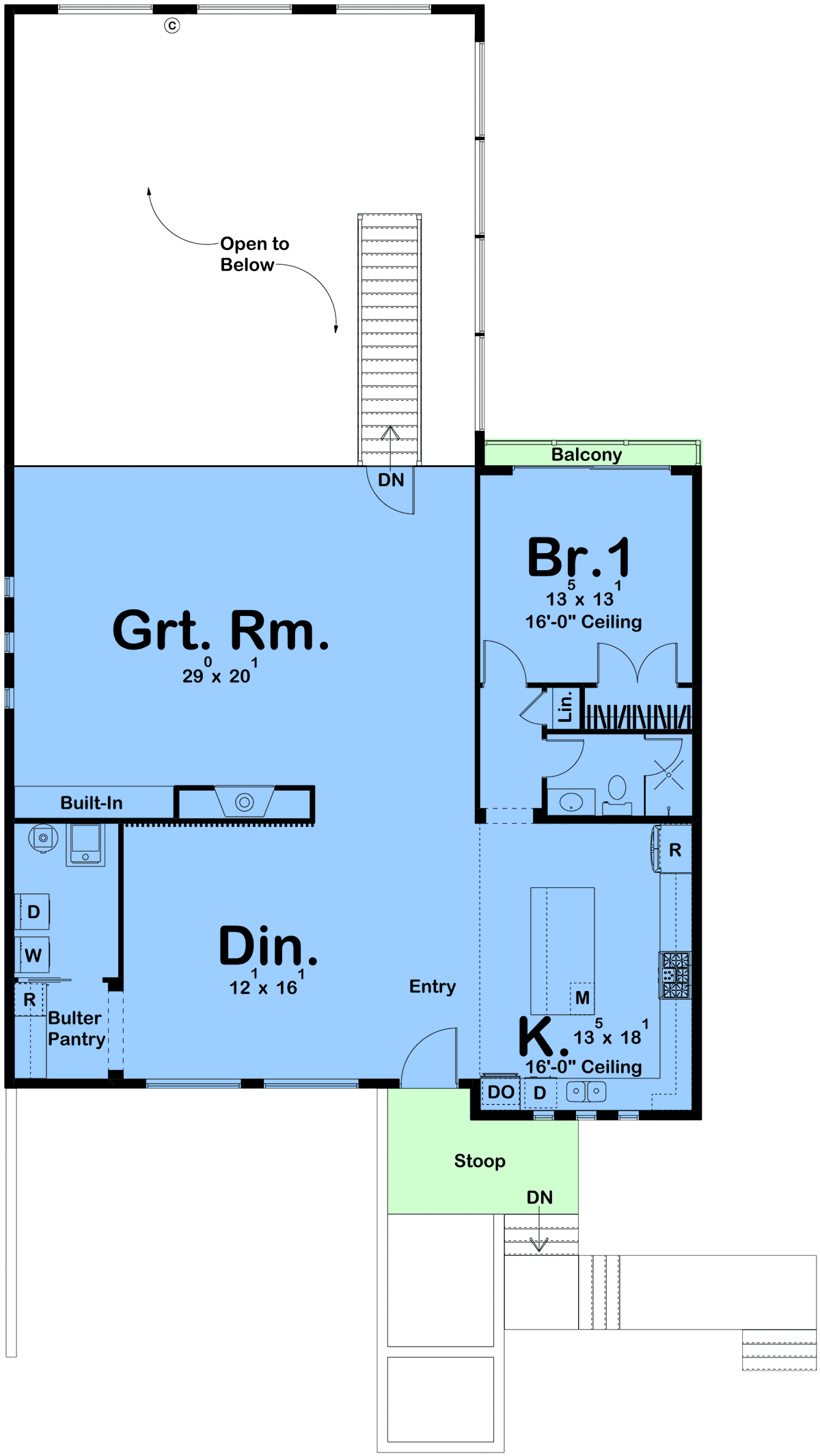

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.

Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible. Detached garage plans may not include an electrical plan. Please call to verify.

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Roof Plan

Typical wall section

Typical stair section

Cabinets are shown on all plans

Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!

1. Complete this On-Line Request Form

2. Print, complete and fax this PDF Form to us at 1-800-675-4916.

3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.

Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.

We Work Fast!

When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!

We look forward to hearing from you!

Start today planning for tomorrow!

Ask the Designer any question you may have. NOTE: If you have a plan modification question, please click on the Plan Modifications tab above.

Common Q & A
